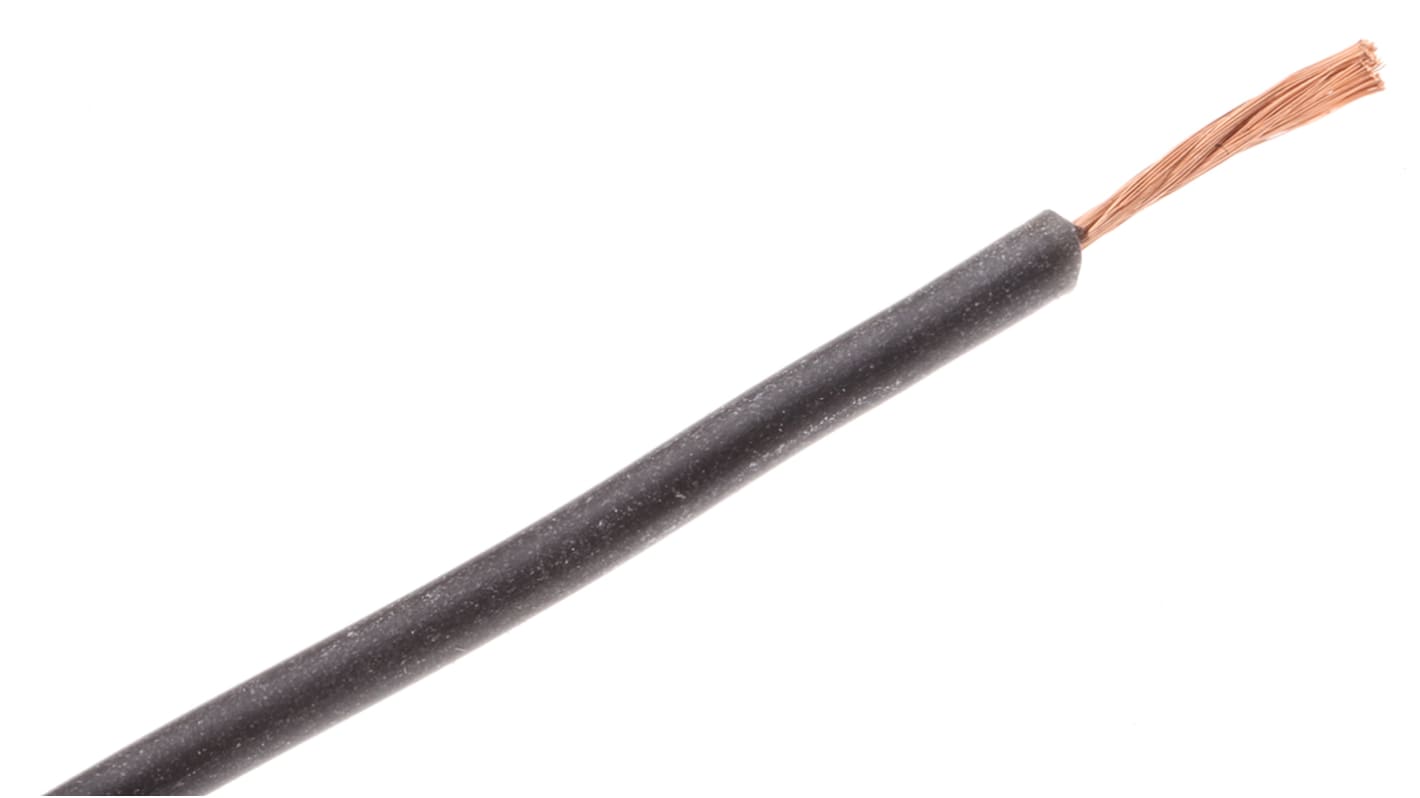

Hew Heinz Eilentropp SIFF Series Black 0.26 mm² Hook Up Wire, 23 AWG, 130/0.05 mm, 5m, Silicone Insulation
- RS Stock No.:
- 222-4107
- Brand:
- Hew Heinz Eilentropp
4 In stock - FREE next working day delivery available
40 available from Europe for delivery within 1 working day(s).
Added
Price 1 Reel of 5 Metre(s)
£21.14
(exc. VAT)
£25.37
(inc. VAT)
| Reel(s) | Per Reel | Per Metre* |
| 1 + | £21.14 | £4.228 |
| *price indicative | ||
- RS Stock No.:
- 222-4107
- Brand:
- Hew Heinz Eilentropp
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
SIFF silicone conductor strand, 0.25 mm²
Silicone-insulated stranded cables
Notch-resistant insulation
Highly twisted copper stranded conductors
Particularly well-suited to test leads
High flexibility, maintained within a temperature range of -50°C → +180°C
Highly resistant to contact with soldering irons
Notch-resistant insulation
Highly twisted copper stranded conductors
Particularly well-suited to test leads
High flexibility, maintained within a temperature range of -50°C → +180°C
Highly resistant to contact with soldering irons
Specifications
Attribute | Value |
|---|---|
| Cross Sectional Area | 0.26 mm² |
| Sheath Colour | Black |
| Cable Shape | Single Core |
| American Wire Gauge | 23 AWG |
| Core Strands | 130/0.05 mm |
| Length | 5m |
| Insulation Material | Silicone |
| Outer Diameter | 1.9mm |
| Voltage Rating | 500 V |
| Minimum Operating Temperature | -50°C |
| Maximum Operating Temperature | +180°C |
| Conductor Material | Copper |
| Series | SIFF |
| Insulation Wall Thickness | 0.6mm |
| Number of Strands | 130 |
| Size of Strands | 0.05 mm |
