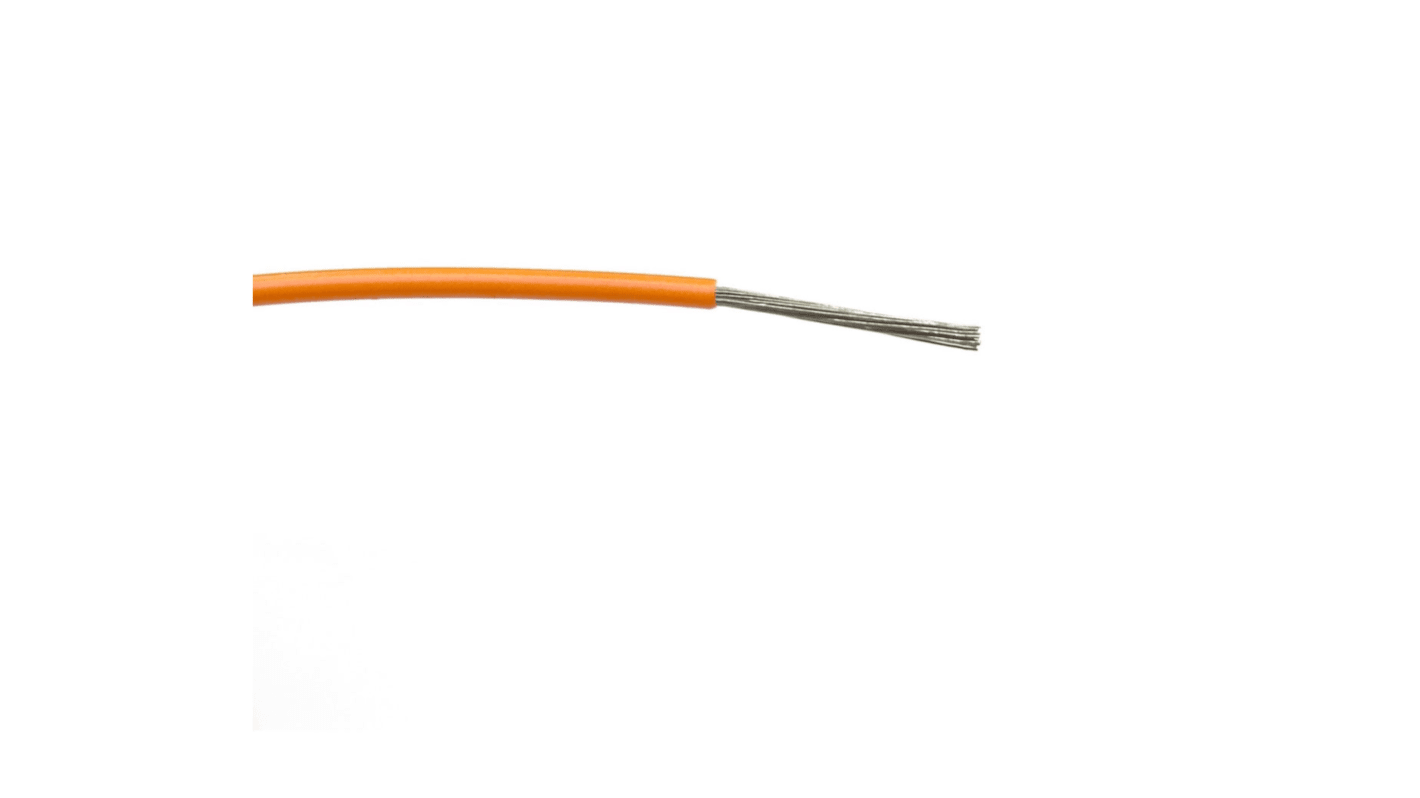

RS PRO Orange 1mm²mm² Hook Up Wire, 18 AWG, 32/0.2 mm, 100m, PVC Insulation
- RS Stock No.:
- 196-4339
- Brand:
- RS PRO
Save 9% when you buy 10 units
Subtotal (1 reel of 100 units)*
£48.41
(exc. VAT)
£58.09
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 35 unit(s) ready to ship
- Plus 6 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 - 4 | £48.41 | £0.484 |
| 5 - 9 | £45.99 | £0.46 |
| 10 + | £43.57 | £0.436 |
*price indicative
- RS Stock No.:
- 196-4339
- Brand:
- RS PRO
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Cross Sectional Area | 1mm²mm² | |
| Sheath Colour | Orange | |
| American Wire Gauge | 18 AWG | |
| Cable Shape | Single Core | |
| Core Strands | 32/0.2 mm | |
| Length | 100m | |
| Insulation Material | PVC | |
| Voltage Rating | 1.5 kV ac | |
| Outer Diameter | 2.65mm | |
| Maximum Operating Temperature | +85°C | |
| Minimum Operating Temperature | -20°C | |
| Conductor Material | Annealed Tinned Copper | |
| Cable Type | Single Core | |
| Standards Met | Def Stan 61-12 Part 6 | |
| Wire Style | BS4808 | |
| Shield Type | Unshielded | |
| Insulation Wall Thickness | 0.6mm | |
| Number of Strands | 32 | |
| Outer Sheath Material | PVC | |
| Size of Strands | mm | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Cross Sectional Area 1mm²mm² | ||
Sheath Colour Orange | ||
American Wire Gauge 18 AWG | ||
Cable Shape Single Core | ||
Core Strands 32/0.2 mm | ||
Length 100m | ||
Insulation Material PVC | ||
Voltage Rating 1.5 kV ac | ||
Outer Diameter 2.65mm | ||
Maximum Operating Temperature +85°C | ||
Minimum Operating Temperature -20°C | ||
Conductor Material Annealed Tinned Copper | ||
Cable Type Single Core | ||
Standards Met Def Stan 61-12 Part 6 | ||
Wire Style BS4808 | ||
Shield Type Unshielded | ||
Insulation Wall Thickness 0.6mm | ||
Number of Strands 32 | ||
Outer Sheath Material PVC | ||
Size of Strands mm | ||
