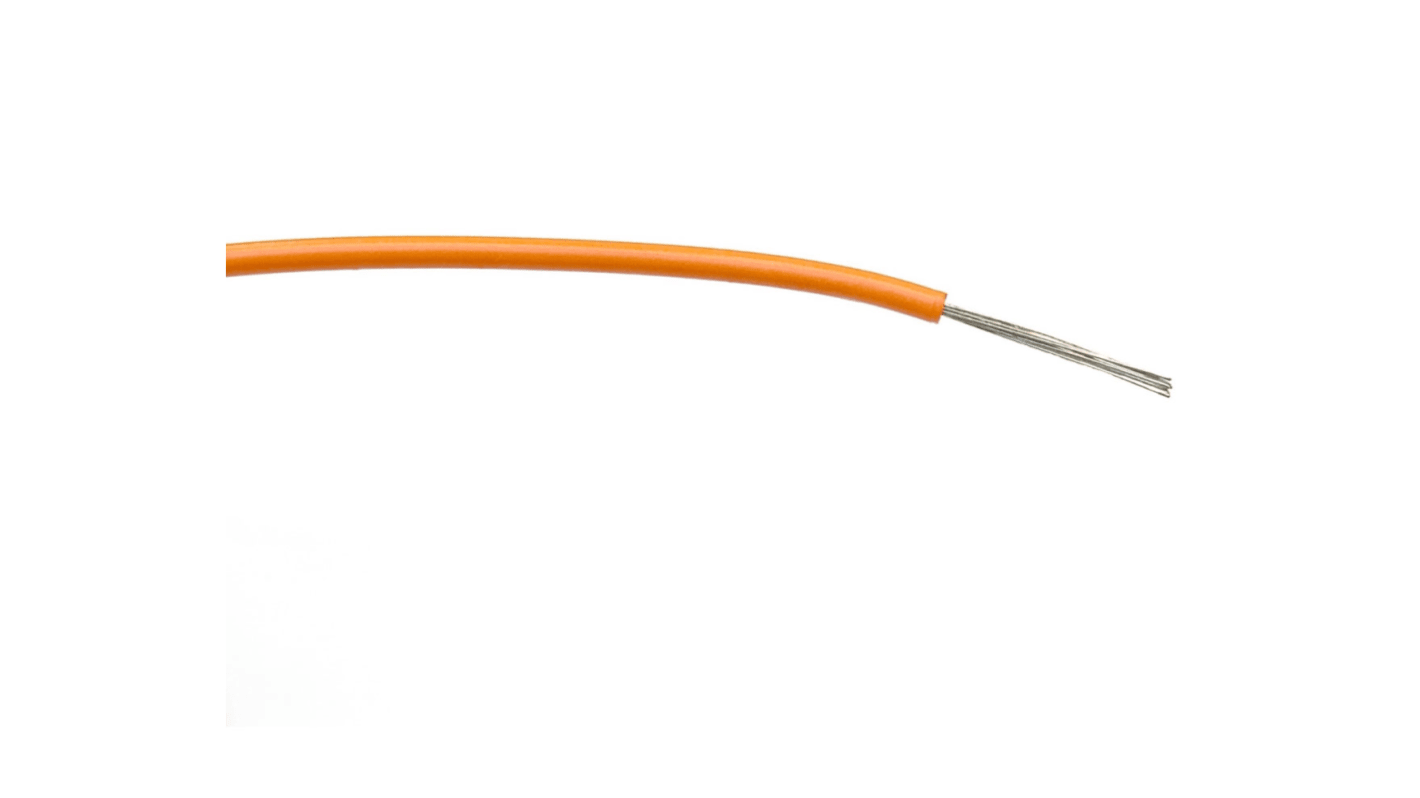

RS PRO Orange 0.5mm² Hook Up Wire, 20 AWG, 16/0.2 mm, 500m, PVC Insulation

View all Hook Up Wire
Unavailable
RS will no longer stock this product.

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
RS PRO Orange 0.5mm² Hook Up Wire, 16/0.2 mm, 500m, PVC Insulation
RS Stock No.
267-5773

Each (On a Reel of 500)

£0.225

(exc. VAT)

£0.27

(inc. VAT)

RS Stock No.:
196-4271
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Cross Sectional Area

0.5mm²

Sheath Colour

Orange

American Wire Gauge

20 AWG

Cable Shape

Single Core

Core Strands

16/0.2 mm

Length

500m

Insulation Material

PVC

Voltage Rating

1 kV ac

Outer Diameter

1.65mm

Minimum Operating Temperature

-15°C

Maximum Operating Temperature

+85°C

Conductor Material

Annealed Tinned Copper

Standards Met

Def Stan 61-12 Part 6

Wire Style

BS4808

Cable Type

Single Core

Shield Type

Unshielded

Insulation Wall Thickness

0.3mm

Size of Strands

mm

Number of Strands

16

Outer Sheath Material

PVC

COO (Country of Origin):
GB

RS PRO Single Core PVC Insulated Equipment Wire


Introducing the range of RS PRO equipment wires, ideal for use across a wide variety of electrical power, lighting and internal wiring applications. The flexible hook up cable can be used for reliable cable connections in a neat and well-organised layout. By using this RS PRO high-quality range of single-core equipment cables, the installation wires can be easily colour coded by using the different sheath colours available in the range, dependant on the installation terminals being used. In addition to this, the robust and carefully manufactured copper conductor ensures optimum reliability and performance, regardless of the application the wires are being used for.

Features and Benefits:


  • This RS PRO single core cable has a 16/0.2 mm core strand with total cable length options of 100 m or 500 m

  • Ideal for low voltage multi-purpose cable installations

  • It is a flexible cable with a durable PVC protective sheath and copper conductors, available in multiple colours, ideal for colour-coding cable installations

  • The cable offers good insulation due to the PVC insulation material and installation is easy and efficient thanks to the flexible layout of the cable

  • Operating temperature: -15 °C to +85 °C

  • Conductor resistance (20℃ Ω/km): 38.2 Ω/km

  • Voltage Rating: 1000 V AC max.

  • Overall diameter: 1.65 mm max. (with insulation)

Applications:


Equipment wire or hook up wire can be used for a wide variety of low voltage and current applications. These can range from domestic household appliances, industrial equipment and factory machine. Due to the reliability of the copper conductors and PVC sheath, these types of wires are usually the preferred choice with any internal wiring system. As an example, these are some common places you would find equipment wire:
  • Circuit boards

  • Computer internals

  • Mobile phones and other battery-operated devices

  • Vehicle lights
