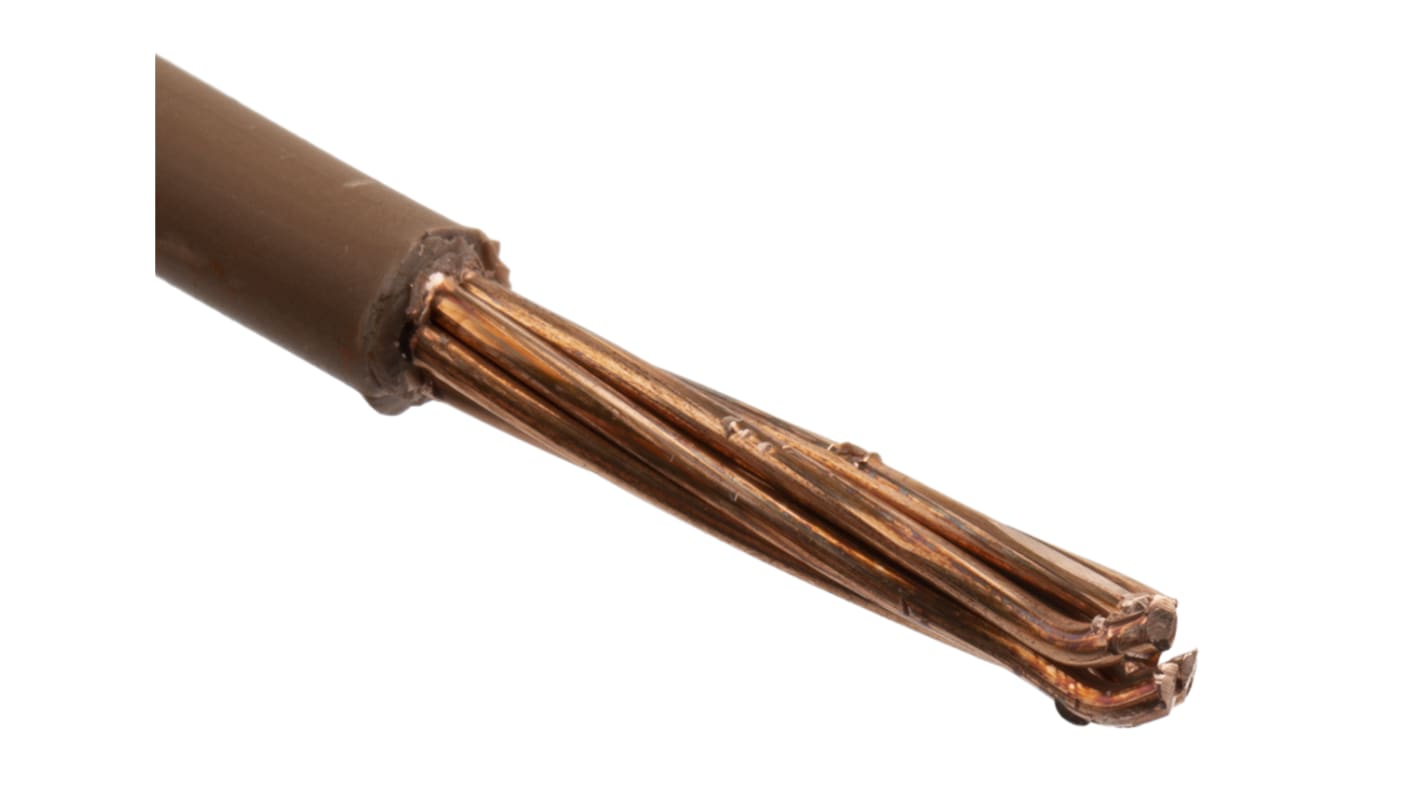

RS PRO Brown 10mm² Hook Up Wire, 7/1.35 mm, 100m, LSNH EI5 Insulation
- RS Stock No.:
- 185-3950
- Brand:
- RS PRO
Subtotal (1 reel of 100 metres)*
£357.82
(exc. VAT)
£429.38
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £357.82 | £3.578 |
*price indicative
- RS Stock No.:
- 185-3950
- Brand:
- RS PRO
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Cross Sectional Area | 10mm² | |
| Sheath Colour | Brown | |
| Cable Shape | Single Core | |
| Core Strands | 7/1.35 mm | |
| Length | 100m | |
| Insulation Material | LSNH EI5 | |
| European Harmonised Code | H07V-R | |
| Voltage Rating | 450 V dc, 750 V ac | |
| Outer Diameter | 7mm | |
| CPR Certification | Dca | |
| Minimum Operating Temperature | -15°C | |
| Maximum Operating Temperature | 90°C | |
| Conductor Material | Copper | |
| Cable Type | Conduit | |
| Standards Met | BS EN 50525-3-41:2011 Clause 4.1 | |
| Series | 6491B | |
| Harmonised Code | H07Z-R | |
| Insulation Wall Thickness | 1mm | |
| Number of Strands | 7 | |
| Size of Strands | 1.35mm | |
| Outer Sheath Material | LSZH | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Cross Sectional Area 10mm² | ||
Sheath Colour Brown | ||
Cable Shape Single Core | ||
Core Strands 7/1.35 mm | ||
Length 100m | ||
Insulation Material LSNH EI5 | ||
European Harmonised Code H07V-R | ||
Voltage Rating 450 V dc, 750 V ac | ||
Outer Diameter 7mm | ||
CPR Certification Dca | ||
Minimum Operating Temperature -15°C | ||
Maximum Operating Temperature 90°C | ||
Conductor Material Copper | ||
Cable Type Conduit | ||
Standards Met BS EN 50525-3-41:2011 Clause 4.1 | ||
Series 6491B | ||
Harmonised Code H07Z-R | ||
Insulation Wall Thickness 1mm | ||
Number of Strands 7 | ||
Size of Strands 1.35mm | ||
Outer Sheath Material LSZH | ||
