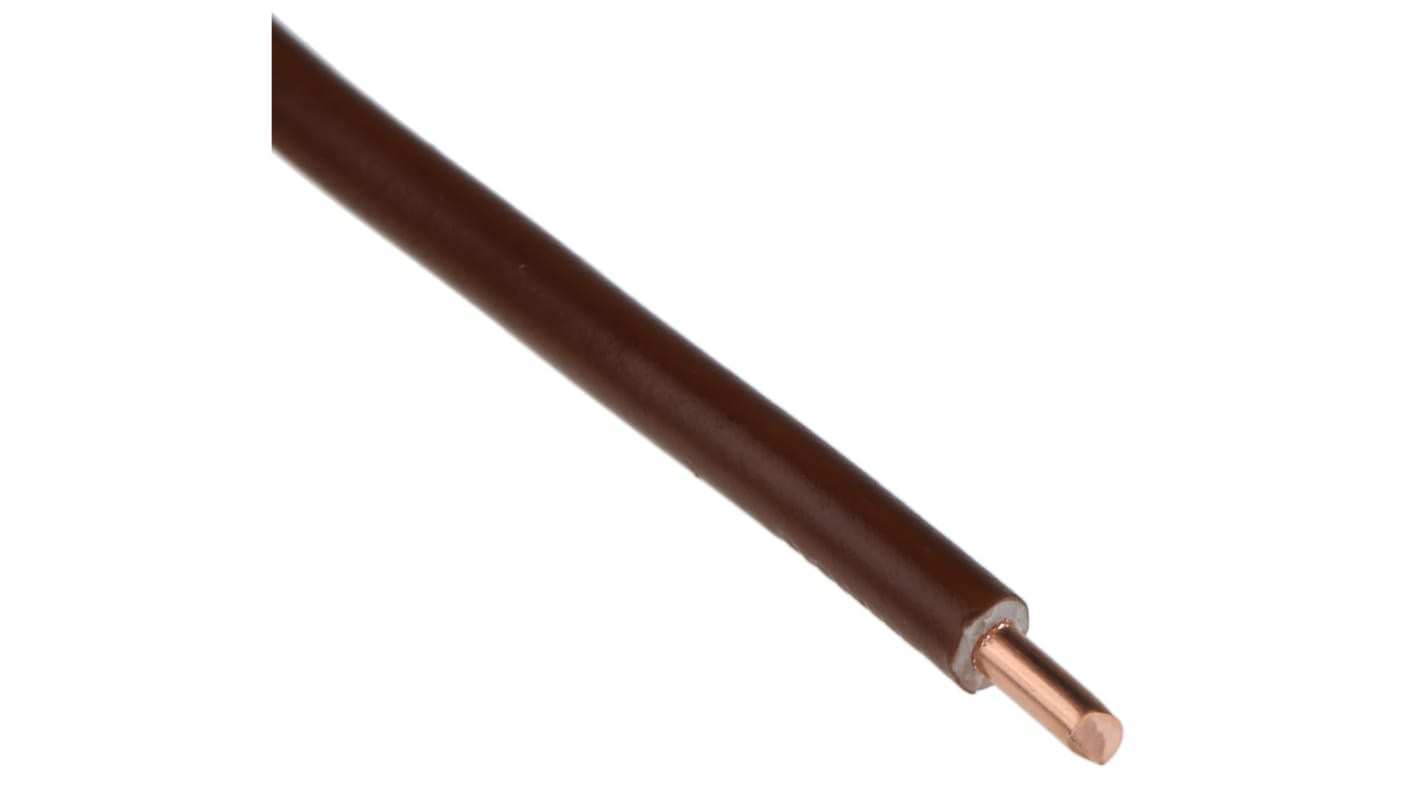

RS PRO Brown 2.5mm² Hook Up Wire, 1/1.78 mm, 100m, PVC TI1 Insulation
- RS Stock No.:
- 185-3905
- Brand:
- RS PRO
Subtotal (1 reel of 100 metres)*
£83.62
(exc. VAT)
£100.34
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 8 unit(s) ready to ship
- Plus 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £83.62 | £0.836 |
*price indicative
- RS Stock No.:
- 185-3905
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Cross Sectional Area | 2.5mm² | |
| Sheath Colour | Brown | |
| Cable Shape | Single Core | |
| Core Strands | 1/1.78 mm | |
| Length | 100m | |
| Insulation Material | PVC TI1 | |
| European Harmonised Code | H07V-U | |
| Voltage Rating | 450 V dc, 750 V ac | |
| Outer Diameter | 3.9mm | |
| Minimum Operating Temperature | -15°C | |
| CPR Certification | Eca | |
| Maximum Operating Temperature | 70°C | |
| Conductor Material | Copper | |
| Standards Met | BS EN 50525-2-31:2011 Clause 4.1 | |
| Cable Type | Conduit | |
| Series | 6491X | |
| Insulation Wall Thickness | 0.8mm | |
| Harmonised Code | H07V-U | |
| Outer Sheath Material | PVC | |
| Size of Strands | 1.78mm | |
| Number of Strands | 1 | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Cross Sectional Area 2.5mm² | ||
Sheath Colour Brown | ||
Cable Shape Single Core | ||
Core Strands 1/1.78 mm | ||
Length 100m | ||
Insulation Material PVC TI1 | ||
European Harmonised Code H07V-U | ||
Voltage Rating 450 V dc, 750 V ac | ||
Outer Diameter 3.9mm | ||
Minimum Operating Temperature -15°C | ||
CPR Certification Eca | ||
Maximum Operating Temperature 70°C | ||
Conductor Material Copper | ||
Standards Met BS EN 50525-2-31:2011 Clause 4.1 | ||
Cable Type Conduit | ||
Series 6491X | ||
Insulation Wall Thickness 0.8mm | ||
Harmonised Code H07V-U | ||
Outer Sheath Material PVC | ||
Size of Strands 1.78mm | ||
Number of Strands 1 | ||
- COO (Country of Origin):
- GB
RS PRO Single Core Cable
The RS PRO 100m PVC insulated single-core cable has a plain annealed copper conductor with a nominal cross-sectional area of 2.5mm². The HO7V-U harmonised brown coloured cable has a voltage rating of 450VDC and 750VAC. The cable is intended for installation in surface mount or embedded conduits, or similar closed systems. This cable is suitable for use in channels with cover.
Features and Benefits
• Operating temperature ranges between -15°C and 70°C
• Insulation wall thickness: 0.8mm
• Strand size: 1.78mm
• Overall diameter ranges between 3.2mm and 3.9mm
• Number of strands: 1
• Insulation wall thickness: 0.8mm
• Strand size: 1.78mm
• Overall diameter ranges between 3.2mm and 3.9mm
• Number of strands: 1
Applications
• Switchgear
• Controlgear
• Fixed protection installation
• Controlgear
• Fixed protection installation
Certifications
• BS EN 60228
• BS EN 50363-3
• BS EN 50525-2-31:2011
• BS EN 50363-3
• BS EN 50525-2-31:2011
