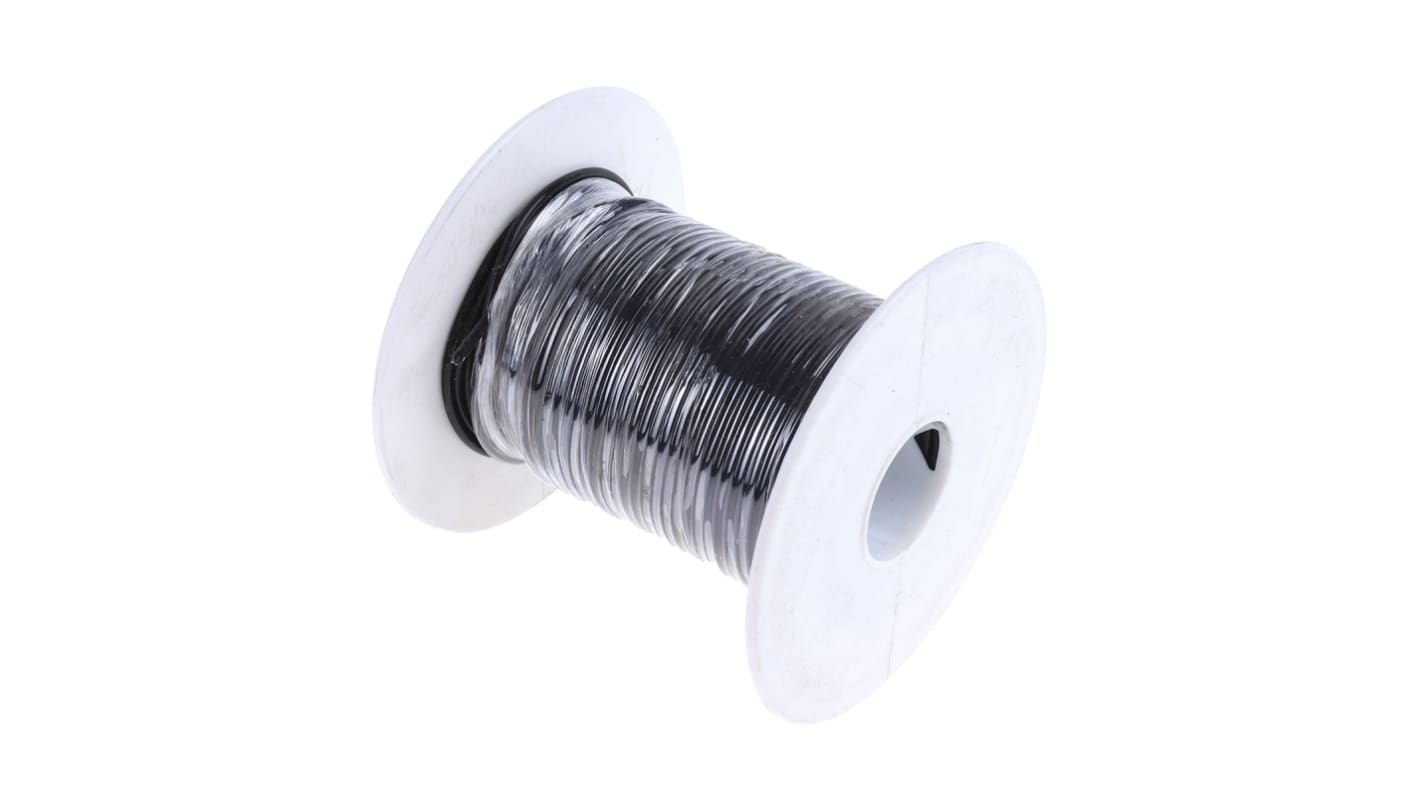

Alpha Wire Hook-up Wire TEFLON Series Black 1.23 mm² Hook Up Wire, 16 AWG, 19/0.29 mm, 30m, PTFE Insulation, 5858 BK005
- RS Stock No.:
- 177-1400
- Distrelec Article No.:
- 300-72-900
- Mfr. Part No.:
- 5858 BK005
- Brand:
- Alpha Wire
Subtotal (1 reel of 30 metres)*
£127.12
(exc. VAT)
£152.54
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 261 unit(s) ready to ship
- Plus 51 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £127.12 | £4.237 |
*price indicative
- RS Stock No.:
- 177-1400
- Distrelec Article No.:
- 300-72-900
- Mfr. Part No.:
- 5858 BK005
- Brand:
- Alpha Wire
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Cross Sectional Area | 1.23 mm² | |
| Sheath Colour | Black | |
| American Wire Gauge | 16 AWG | |
| Core Strands | 19/0.29 mm | |
| Length | 30m | |
| Insulation Material | PTFE | |
| Voltage Rating | 600 V | |
| Outer Diameter | 2.03mm | |
| Maximum Operating Temperature | +200°C | |
| Minimum Operating Temperature | -60°C | |
| Conductor Material | Silver Plated Copper | |
| Standards Met | MIL-W-16878/4, NEMA HP-EXBBB, UL1213, VW-1 | |
| Wire Style | UL1213 | |
| Series | Hook-up Wire TEFLON | |
| Insulation Wall Thickness | 0.3mm | |
| Shield Type | Unshielded | |
| Size of Strands | 0.29 mm | |
| Number of Strands | 19 | |
Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Cross Sectional Area 1.23 mm² | ||
Sheath Colour Black | ||
American Wire Gauge 16 AWG | ||
Core Strands 19/0.29 mm | ||
Length 30m | ||
Insulation Material PTFE | ||
Voltage Rating 600 V | ||
Outer Diameter 2.03mm | ||
Maximum Operating Temperature +200°C | ||
Minimum Operating Temperature -60°C | ||
Conductor Material Silver Plated Copper | ||
Standards Met MIL-W-16878/4, NEMA HP-EXBBB, UL1213, VW-1 | ||
Wire Style UL1213 | ||
Series Hook-up Wire TEFLON | ||
Insulation Wall Thickness 0.3mm | ||
Shield Type Unshielded | ||
Size of Strands 0.29 mm | ||
Number of Strands 19 | ||
Belden Alpha Wire Black Hook-Up Wire, 16AWG, 30m Length - Premium Series - 5858 BK005
Connect up your machinery to a power supply with this Belden Alpha Wire hook-up wire. It features high-density polytetrafluoroethylene (PTFE) insulation to protect the connection from chemical or grease contaminants and help keep your machinery free from faults. It also withstands extreme temperatures of up to +200°C for use with industrial equipment in constant, high-powered operation. The unterminated ends allow you to connect the wire to any type of connector by wrapping the cores around the terminal contacts.
Features & Benefits
• High-conduction copper contacts ensure quality signal transmission
• 2.03mm outer diameter is easy to feed through narrow installation areas
• 30m length can be used in large installations or cut to size for multiple jobs
• Supplied on a reel for easy handling and storage
• Silver-plated conductors to prevent corrosion wear
• 2.03mm outer diameter is easy to feed through narrow installation areas
• 30m length can be used in large installations or cut to size for multiple jobs
• Supplied on a reel for easy handling and storage
• Silver-plated conductors to prevent corrosion wear
Applications
• Machine automation
• Commercial appliances
• Manufacturing lines
• Agricultural machinery
• Communication industry
• Commercial appliances
• Manufacturing lines
• Agricultural machinery
• Communication industry
Is this hook-up wire protected against interference?
Yes, the 19 conductor strands in this hook-up wire are twisted together to provide resistance to electromagnetic interference (EMI) and radio frequency interference (RFI), helping transmission to remain clear.
