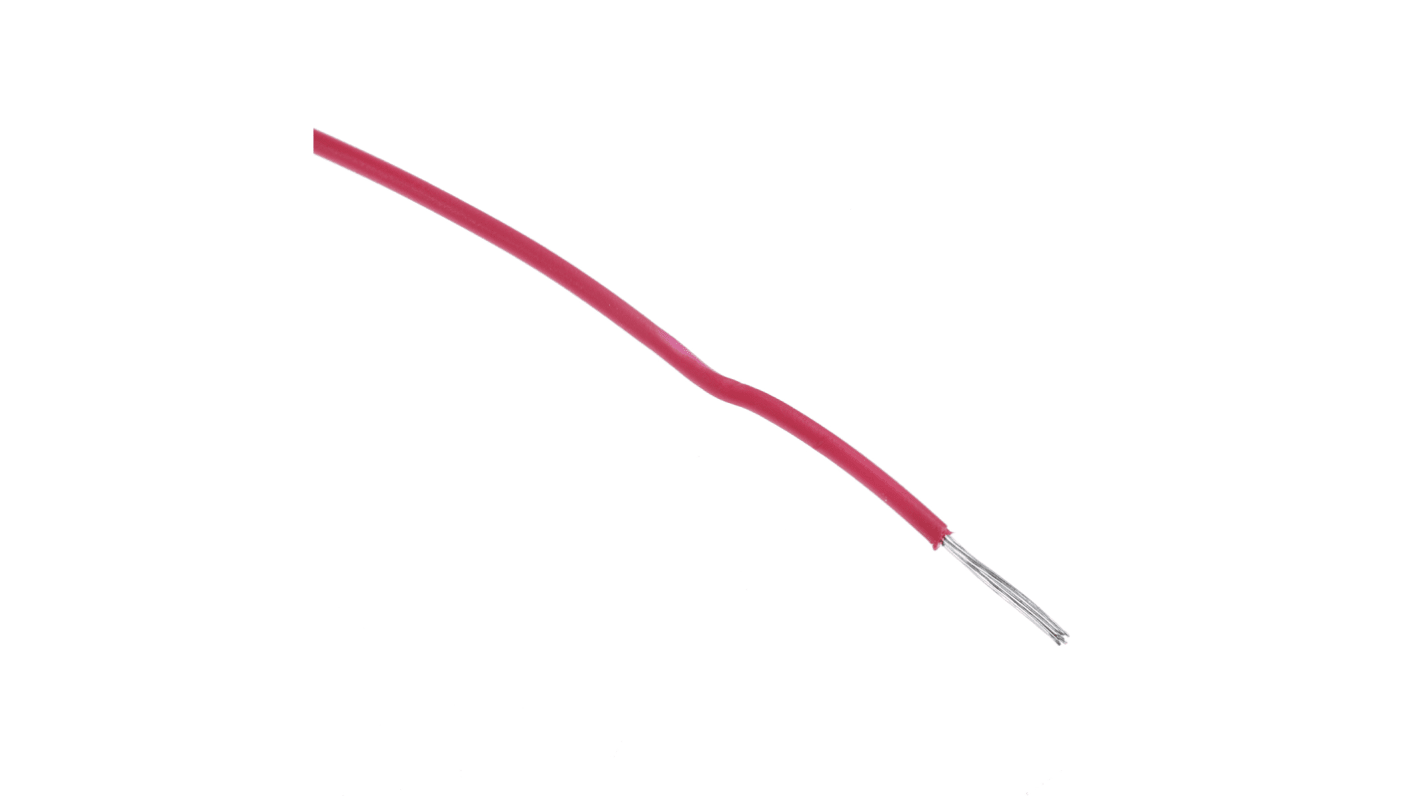

    Alpha Wire Hook Up Wire Series Red 0.35 mm² Harsh Environment Wire, 22 AWG, 7/0.25 mm, 30m, PVC Insulation

    RS Stock No.:
    168-1571
    Mfr. Part No.:
    3051 RD005
    Brand:
    Alpha Wire
    Alpha Wire
    View all Hook Up Wire
    157 In stock - FREE next working day delivery available
    24 available from Europe for delivery within 1 working day(s).
    Add to Basket
    Reel(s)

    Added

    Price 1 Reel of 30 Metre(s)

    £13.20

    (exc. VAT)

    £15.84

    (inc. VAT)

    Reel(s)Per ReelPer Metre*
    1 - 4£13.20£0.44
    5 - 9£12.60£0.42
    10 +£12.01£0.40
    *price indicative
    RS Stock No.:
    168-1571
    Mfr. Part No.:
    3051 RD005
    Brand:
    Alpha Wire
    COO (Country of Origin):
    US

    Technical Reference


    Legislation and Compliance

    COO (Country of Origin):
    US

    Product Details

    Belden Alpha Wire Red Harsh-Environment Wire, 305m Length, 1.57mm OD - Hook Up Wire Series - 3051 RD001


    Need a tough wiring solution for your critical applications? This harsh-environment wire from Belden Alpha Wire delivers reliable power to prevent unnecessary downtime. Hardwearing PVC insulates the 22AWG hook-up cable and protects the core from abrasive and chemical damage. It's also fire-resistant for improved safety in dangerous settings. You can use this cable with Alpha Wire FIT heat-shrink tubing (839-5472) to seal terminations and make it more durable.


    Features & Benefits


    • Red cable jacket for easy identification when used in network installations
    • Wide operating temperature range between -40°C to +105°C for use in harsh environments


    Applications


    • Electronic circuits
    • Control panels
    • Telecommunications systems
    • Business equipment
    • Computer installations


    How long is this wire?


    This hook-up wire comes on a 305m reel, so you can use it for long runs or easily cut and terminate the lengths needed for your applications.



    Specifications

    AttributeValue
    Cross Sectional Area0.35 mm²
    Sheath ColourRed
    American Wire Gauge22 AWG
    Core Strands7/0.25 mm
    Length30m
    Insulation MaterialPVC
    Voltage Rating300 V
    Outer Diameter1.57mm
    Minimum Operating Temperature-40°C
    Maximum Operating Temperature+105°C
    Conductor MaterialTinned Copper
    Wire StyleUL1007
    Standards MetUL Listed
    Fire BehaviourFlame Retardant
    SeriesHook Up Wire
    Insulation Wall Thickness0.41mm
    Shield TypeUnshielded
