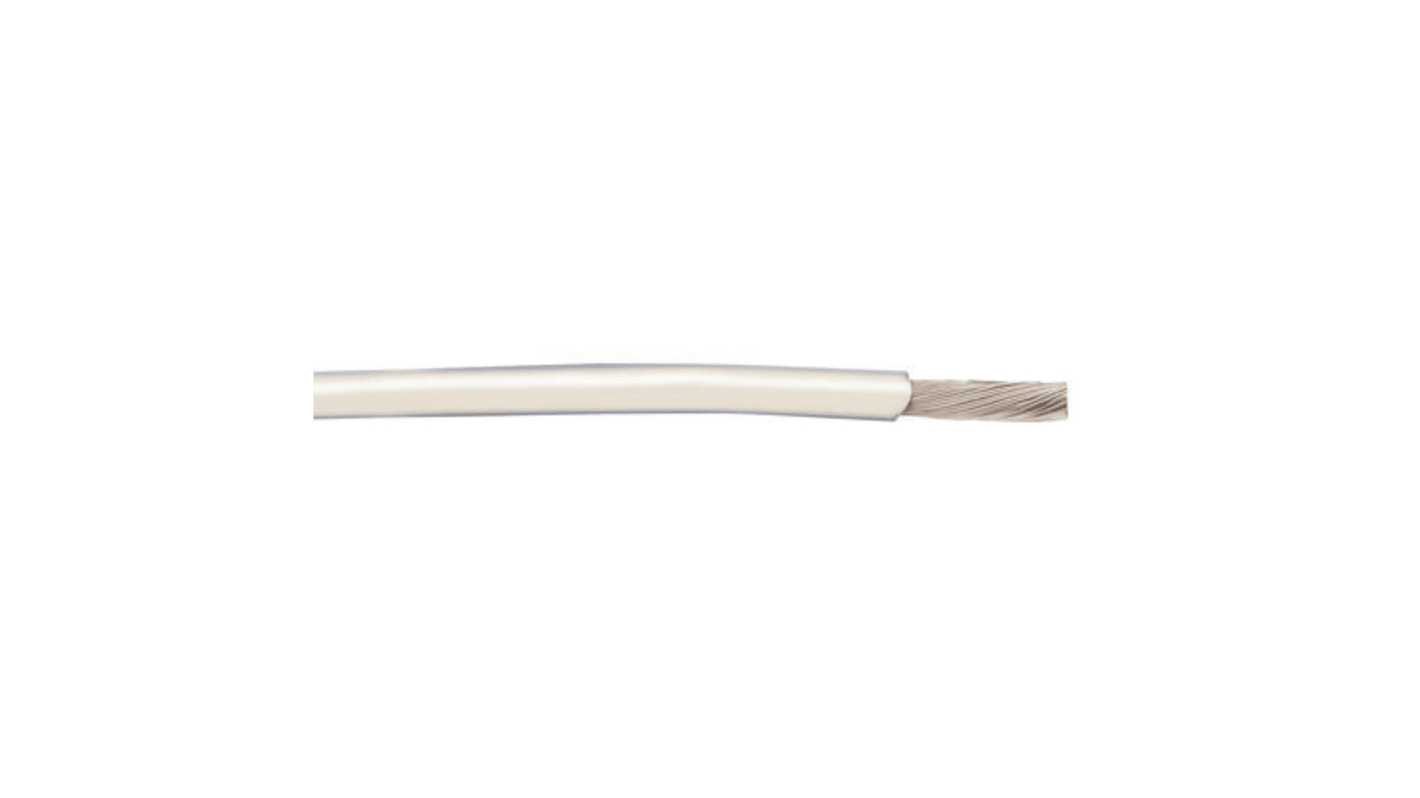

Alpha Wire Hook-up Wire PVC Series White 0.2 mm² Hook Up Wire, 24 AWG, 7/0.20 mm, 30m, SR-PVC Insulation, 3250 WH005
- RS Stock No.:
- 168-0641
- Distrelec Article No.:
- 301-51-339
- Mfr. Part No.:
- 3250 WH005
- Brand:
- Alpha Wire
Subtotal (1 reel of 30 metres)*
£13.60
(exc. VAT)
£16.32
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 210 unit(s) ready to ship
- Plus 42 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £13.60 | £0.453 |
*price indicative
- RS Stock No.:
- 168-0641
- Distrelec Article No.:
- 301-51-339
- Mfr. Part No.:
- 3250 WH005
- Brand:
- Alpha Wire
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Cross Sectional Area | 0.2 mm² | |
| Sheath Colour | White | |
| American Wire Gauge | 24 AWG | |
| Cable Shape | Single Core | |
| Core Strands | 7/0.20 mm | |
| Length | 30m | |
| Insulation Material | SR-PVC | |
| Voltage Rating | 300 V | |
| Outer Diameter | 1.15mm | |
| Maximum Operating Temperature | +80°C | |
| Minimum Operating Temperature | -10°C | |
| Conductor Material | Tinned Copper | |
| Cable Type | Single Core | |
| Wire Style | UL1061 | |
| Standards Met | UL Listed | |
| Tri-rated | No | |
| Series | Hook-up Wire PVC | |
| Hook Up Wire Type | High Temperature | |
| Insulation Wall Thickness | 0.3mm | |
| Resistant To | Chemicals, Oils, Solvents | |
| Size of Strands | 0.2 mm | |
| Number of Strands | 7 | |
Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Cross Sectional Area 0.2 mm² | ||
Sheath Colour White | ||
American Wire Gauge 24 AWG | ||
Cable Shape Single Core | ||
Core Strands 7/0.20 mm | ||
Length 30m | ||
Insulation Material SR-PVC | ||
Voltage Rating 300 V | ||
Outer Diameter 1.15mm | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -10°C | ||
Conductor Material Tinned Copper | ||
Cable Type Single Core | ||
Wire Style UL1061 | ||
Standards Met UL Listed | ||
Tri-rated No | ||
Series Hook-up Wire PVC | ||
Hook Up Wire Type High Temperature | ||
Insulation Wall Thickness 0.3mm | ||
Resistant To Chemicals, Oils, Solvents | ||
Size of Strands 0.2 mm | ||
Number of Strands 7 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- MX
Belden Hook-up Wire PVC Series Hook Up Wire, 0.2mm² Cross Sectional Area, White Sheath Colour - 3250 WH005
This hook-up wire is a versatile and reliable choice for various electrical applications. Designed with a single-core structure, it features a cross-sectional area of 0.2 mm² and is insulated with semi-rigid PVC for added durability. At a length of 30 m, it is ideal for installations requiring flexibility and resilience under varying conditions.
Features & Benefits
• Rated for a maximum operating temperature of +80°C
• PVC insulation offers resistance to oil, chemicals, and solvents
• 24 AWG wire provides an efficient conductivity solution
• Constructed with tinned copper for corrosion resistance
• UL1061 certified, ensuring compliance with industry standards
• 1.15mm outer diameter maintains compact handling capability
• PVC insulation offers resistance to oil, chemicals, and solvents
• 24 AWG wire provides an efficient conductivity solution
• Constructed with tinned copper for corrosion resistance
• UL1061 certified, ensuring compliance with industry standards
• 1.15mm outer diameter maintains compact handling capability
Applications
• Ideal for internal wiring in automation systems
• Suitable for electrical connections in consumer electronics
• Utilised in mechanical devices requiring reliable power delivery
• Suitable for installations in environments prone to chemical exposure
• Suitable for electrical connections in consumer electronics
• Utilised in mechanical devices requiring reliable power delivery
• Suitable for installations in environments prone to chemical exposure
What is the resistance level of this wire under typical conditions?
The conductor has a DCR of 25Ω per 1000 ft at 20°C, ensuring effective electrical performance while maintaining efficiency in various applications.
How does the insulation of this wire protect against environmental factors?
The semi-rigid PVC insulation provides robust resistance to oils, solvents, and chemicals, making it suitable for challenging environments where durability is essential.
What are the key benefits of using tinned copper in this wire?
Tinned copper enhances conductivity while preventing oxidation, ensuring a long-lasting and efficient connection even in high-temperature scenarios.
