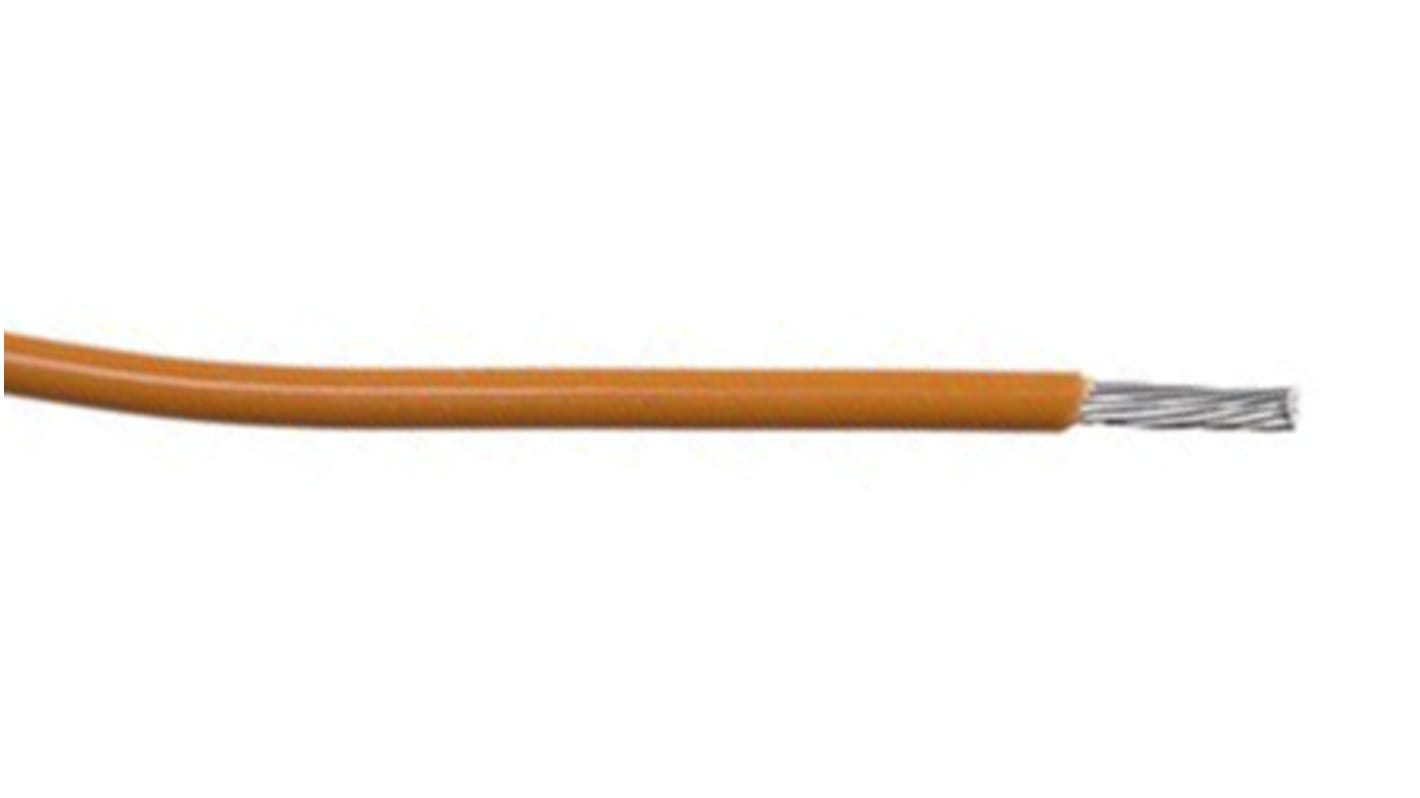

Alpha Wire Hook-up Wire PVC Series Orange 0.23 mm² Hook Up Wire, 24 AWG, 7/0.20 mm, 305m, PVC Insulation, 3050 OR001
- RS Stock No.:
- 124-3090
- Distrelec Article No.:
- 301-04-411
- Mfr. Part No.:
- 3050 OR001
- Brand:
- Alpha Wire
Subtotal (1 reel of 304 metres)*
£56.25
(exc. VAT)
£67.50
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 10 unit(s) shipping from 04 November 2025
- Plus 999,999,989 unit(s) shipping from 27 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £56.25 | £0.185 |
*price indicative
- RS Stock No.:
- 124-3090
- Distrelec Article No.:
- 301-04-411
- Mfr. Part No.:
- 3050 OR001
- Brand:
- Alpha Wire
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Cross Sectional Area | 0.23 mm² | |
| Sheath Colour | Orange | |
| Cable Shape | Single Core | |
| American Wire Gauge | 24 AWG | |
| Core Strands | 7/0.20 mm | |
| Length | 305m | |
| Insulation Material | PVC | |
| Outer Diameter | 1.42mm | |
| Voltage Rating | 300 V | |
| Maximum Operating Temperature | +105°C | |
| Minimum Operating Temperature | -40°C | |
| Conductor Material | Copper | |
| Wire Style | UL1007 | |
| Standards Met | UL Listed | |
| Fire Behaviour | Flame Retardant | |
| Series | Hook-up Wire PVC | |
| Insulation Wall Thickness | 0.4mm | |
| Size of Strands | 0.2 mm | |
| Outer Sheath Material | PVC | |
| Number of Strands | 7 | |
Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Cross Sectional Area 0.23 mm² | ||
Sheath Colour Orange | ||
Cable Shape Single Core | ||
American Wire Gauge 24 AWG | ||
Core Strands 7/0.20 mm | ||
Length 305m | ||
Insulation Material PVC | ||
Outer Diameter 1.42mm | ||
Voltage Rating 300 V | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -40°C | ||
Conductor Material Copper | ||
Wire Style UL1007 | ||
Standards Met UL Listed | ||
Fire Behaviour Flame Retardant | ||
Series Hook-up Wire PVC | ||
Insulation Wall Thickness 0.4mm | ||
Size of Strands 0.2 mm | ||
Outer Sheath Material PVC | ||
Number of Strands 7 | ||
Belden Alpha Wire Hook Up Wire, 300 V, PVC
When every application is critical and wire failure is not an option, choose Alpha Wire PVC hook up wire from Belden as your solution. PVC hook up wire benefits from good abrasion resistance and excellent fire resistance. This 300 V PVC hook up wire can be used in temperatures ranging from -40°C to +105°C depending on the application.
Features and Benefits:
• Stranded or solid tinned copper conductors protecting the wires from corrosion and increasing efficiency in hot and humid environments
• Colour-coded insulation for easy circuit identification
• Easy to handle, strip and terminate
• PVC insulation
• Available in lengths of 100 ft (30.5 m) and 1000 ft (305 m)
• Colour-coded insulation for easy circuit identification
• Easy to handle, strip and terminate
• PVC insulation
• Available in lengths of 100 ft (30.5 m) and 1000 ft (305 m)
Applications:
Hook up wire can be used for a broad range of applications, whether that be in a control cabinet, high-temperature oven, or in a specialised machine tool.
Alpha Wire’s FIT heat-shrink tubing and FIT wire management system can both be used with the Alpha Wire hook up wire range and are an ideal for solving many challenges in electrical and electronic wiring.
Standards
UL AWM 1007, 1581, 1569 VW-1, CSA AWM I A/B FT1, CSA TR-64 FT1
Belden Alpha Wire Hook Up Wire, 300V Voltage Rating, 1.42mm Outer Diameter - 3050 OR001
Make light work of awkward cabling tasks with this Belden Alpha Wire hook up wire. It's a single-core type that bends to fit into difficult spaces without a snag, thanks to its flexible stranded construction. You can forget about connection glitches, as the lead's tinned-copper core keeps power flowing to support smooth processing. The abrasion-resistant PVC sheath stands up to rough handling to effectively guard your connection against cuts and scrapes.
Features & Benefits
• Narrow outer diameter of 1.42mm to easily route through low-profile spaces
• PVC insulation cuts your risk of exposure to hazardous loads, ensuring safe handling
• Bright orange jacket stands out in busy wiring setups
• PVC insulation cuts your risk of exposure to hazardous loads, ensuring safe handling
• Bright orange jacket stands out in busy wiring setups
Applications
• Electrical engineering
• Industrial automation
• Plastics processing
• Consumer electronics
• Industrial automation
• Plastics processing
• Consumer electronics
Can I use this hook up wire with moving equipment?
Yes, it handles pulling tension up to 3.5lbs, so you can trust it to stay connected even when faced with jostling and movement.
