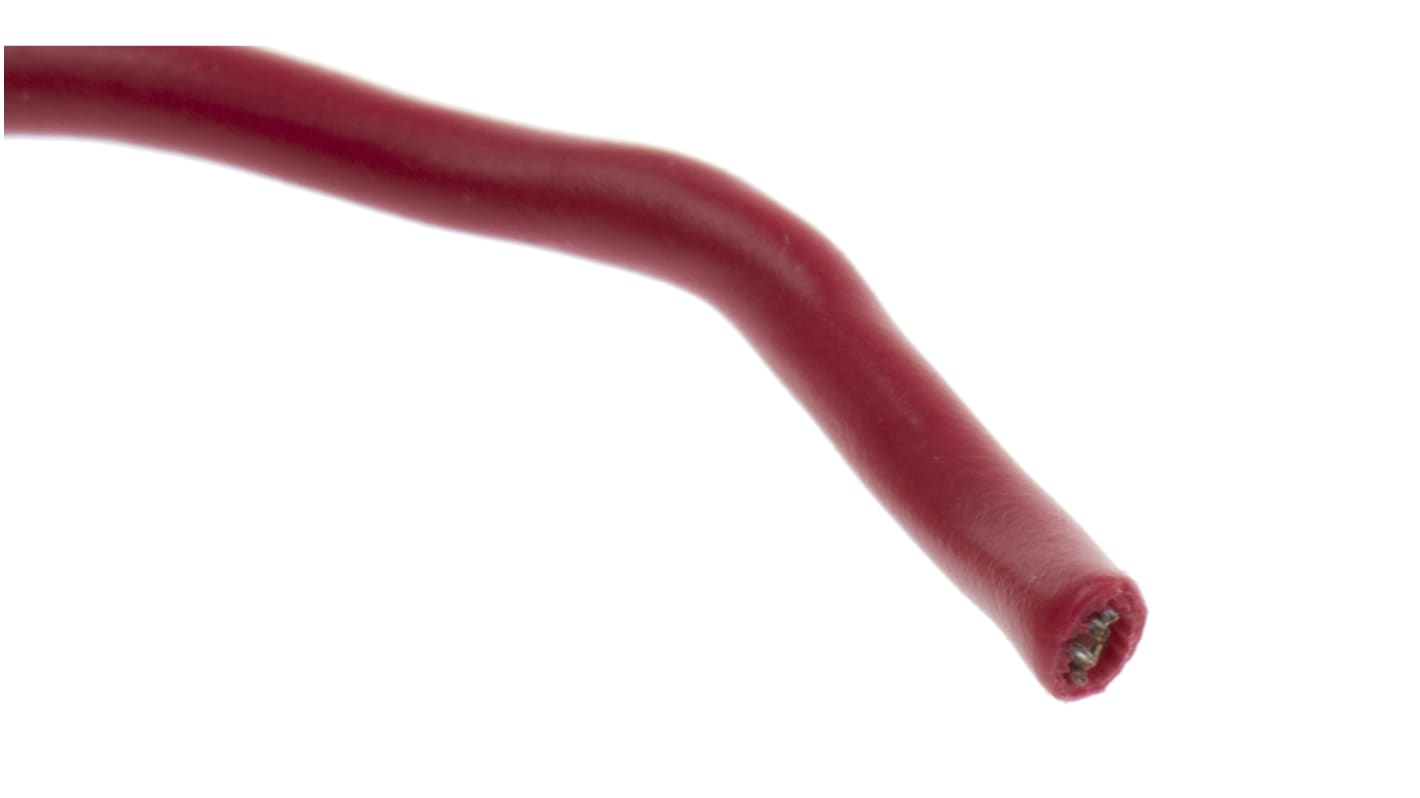

Alpha Wire Hook-up Wire PVC Series Red 0.81 mm² Hook Up Wire, 18 AWG, 16/0.25 mm, 305m, PVC Insulation, 3055 RD001
- RS Stock No.:
- 124-2586
- Distrelec Article No.:
- 301-51-252
- Mfr. Part No.:
- 3055 RD001
- Brand:
- Alpha Wire
Subtotal (1 reel of 304 metres)*
£114.79
(exc. VAT)
£137.75
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 16 unit(s) ready to ship
- Plus 7 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
---|---|---|
1 + | £114.79 | £0.378 |
*price indicative
- RS Stock No.:
- 124-2586
- Distrelec Article No.:
- 301-51-252
- Mfr. Part No.:
- 3055 RD001
- Brand:
- Alpha Wire
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Alpha Wire | |
Cross Sectional Area | 0.81 mm² | |
Sheath Colour | Red | |
American Wire Gauge | 18 AWG | |
Cable Shape | Single Core | |
Core Strands | 16/0.25 mm | |
Length | 305m | |
Insulation Material | PVC | |
Voltage Rating | 300 V | |
Outer Diameter | 2.01mm | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +105°C | |
Conductor Material | Tinned Copper | |
Wire Style | UL1007 | |
Standards Met | UL Listed | |
Fire Behaviour | Flame Retardant | |
Series | Hook-up Wire PVC | |
Shield Type | Unshielded | |
Insulation Wall Thickness | 0.4mm | |
Number of Strands | 16 | |
Size of Strands | 0.25 mm | |
Select all | ||
---|---|---|
Brand Alpha Wire | ||
Cross Sectional Area 0.81 mm² | ||
Sheath Colour Red | ||
American Wire Gauge 18 AWG | ||
Cable Shape Single Core | ||
Core Strands 16/0.25 mm | ||
Length 305m | ||
Insulation Material PVC | ||
Voltage Rating 300 V | ||
Outer Diameter 2.01mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +105°C | ||
Conductor Material Tinned Copper | ||
Wire Style UL1007 | ||
Standards Met UL Listed | ||
Fire Behaviour Flame Retardant | ||
Series Hook-up Wire PVC | ||
Shield Type Unshielded | ||
Insulation Wall Thickness 0.4mm | ||
Number of Strands 16 | ||
Size of Strands 0.25 mm | ||
PVC Single Core
The Alpha Wire PVC Single Core hook-up wire contains a stranded tinner copper 18 AWG wire covered in a green and yellow PVC shield, allowing it to be able to operate in temperatures -40ºC all the way up 105ºC. The wire also has ability to withstand wear and abrasion and has high resistance to substances (oil, solvents and chemicals.) The component is in accordance with UL 1007 and VW-1, as well as CSA TR64.
Belden Alpha Wire Red Hook-Up Wire, 18AWG - Premium Series - 3055
Connect your equipment and machinery to power supply units with this hook-up wire from Belden's Alpha Wire range. The component's tinned copper conductors withstand corrosion to provide a stable connection for reliable, long-term use. A PVC outer sheath insulates the wire, protecting you from electric shocks. As this material also offers resistance to impacts and abrasion, you can use the product in harsh environments. This wire comes on a reel, which means it's easy to handle and you can simply cut what you need for the job at hand.
Features & Benefits
• Long cable length so you get an ample supply for several jobs
• Wide operating temperature range of -40°C to +105°C, so suitable for industrial use
• Colour-coded insulation for easy identification
• Compact outer diameter of 2.01mm for space efficiency in small enclosures
• Voltage rating of 300V for use in low-voltage applications
• Wide operating temperature range of -40°C to +105°C, so suitable for industrial use
• Colour-coded insulation for easy identification
• Compact outer diameter of 2.01mm for space efficiency in small enclosures
• Voltage rating of 300V for use in low-voltage applications
Applications
• Control cabinets
• Specialised machine tools
• High temperature ovens
• Specialised machine tools
• High temperature ovens
What's the maximum bend radius of this wire?
This hook-up wire has a maximum bend radius of 10 times its cable diameter. This means it's a practical choice when you need to wire around corners.
