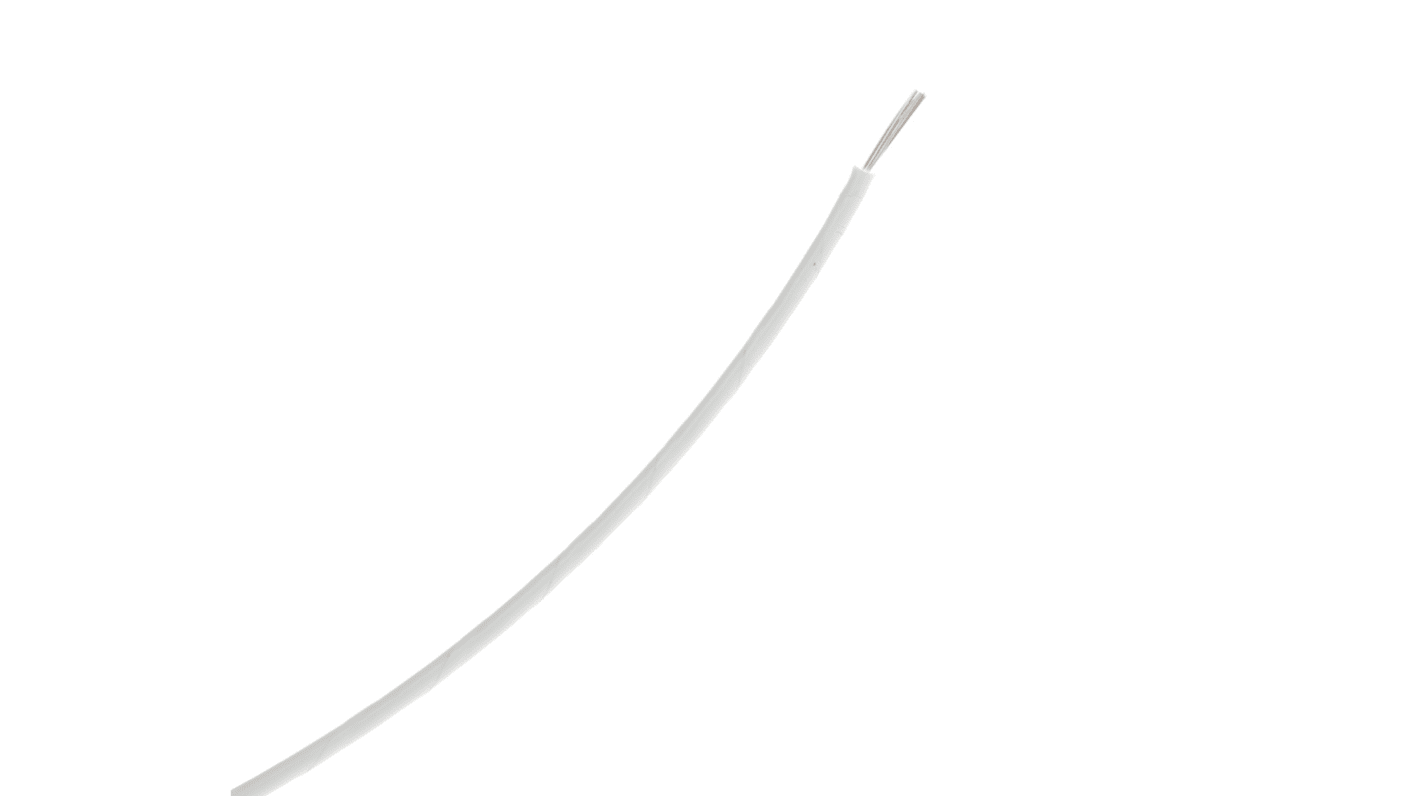

RS PRO White 0.52mm² Hook Up Wire, 20 AWG, 19/0.2 mm, 100m, Polyamide Insulation

RS Stock No.:: 111-3144
Brand:: RS PRO

RS PRO White 0.52mm² Hook Up Wire, 20 AWG, 19/0.2 mm, 100m, Polyamide Insulation

Save 10% when you buy 10 units

Subtotal (1 reel of 100 metres)*

£192.46

(exc. VAT)

£230.95

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

6 unit(s) ready to ship
Plus 2 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 - 4	£192.46	£1.925
5 - 9	£182.83	£1.828
10 +	£173.21	£1.732

*price indicative

RS Stock No.:: 111-3144
Brand:: RS PRO

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Cross Sectional Area	0.52mm²
	Sheath Colour	White
	American Wire Gauge	20 AWG
	Cable Shape	Single Core
	Core Strands	19/0.2 mm
	Length	100m
	Insulation Material	Polyamide
	Outer Diameter	1.34mm
	Voltage Rating	600 V ac
	Maximum Operating Temperature	+260°C
	Minimum Operating Temperature	-65°C
	Conductor Material	Nickel Plated Copper
	Standards Met	EN 2084, EN 2267-009, FAR 25-869
	Cable Type	Airframe
	Fire Behaviour	Low Smoke Density
	Size of Strands	0.2mm
	Number of Strands	19

	Select all
	Brand RS PRO
	Cross Sectional Area 0.52mm²
	Sheath Colour White
	American Wire Gauge 20 AWG
	Cable Shape Single Core
	Core Strands 19/0.2 mm
	Length 100m
	Insulation Material Polyamide
	Outer Diameter 1.34mm
	Voltage Rating 600 V ac
	Maximum Operating Temperature +260°C
	Minimum Operating Temperature -65°C
	Conductor Material Nickel Plated Copper
	Standards Met EN 2084, EN 2267-009, FAR 25-869
	Cable Type Airframe
	Fire Behaviour Low Smoke Density
	Size of Strands 0.2mm
	Number of Strands 19

EN2267 Aerospace Wire

Brought to you by RS Pro, a range of equipment wire suitable for internal electronic wiring within circuit boards and control panels. supplied with a PVC insulation and supplied on a reel, this hook up wire is an excellent addition for your application. All models are highly reliable and excellent quality.

Features and Benefits

• Lightweight
• Chemical and arc track resistant
• UV Laser printable wire
• Operating temperature -65°C to +260°C
• Polymide / PTFE material
• Small diameter
• Highly flexible
• Aircraft chemical and electrical arc tracking resistant
• Excellent thermal stability

What is hookup wire?

Hook up wire, or copper wire/equipment wire as it's also called is primarily used for low voltage and current applications. Copper strands are sheathed by a cover. And act as the conductor of electricity to power its target. Frequently found within everyday household and workplace appliances, hook up wire is a common occurrence. If a device has multiple wires to operate, hook up wire will usually be installed with different sheath colours on their respective terminals. This is to avoid the confusion of a "spaghetti junction" of wires.

What is hook up wire used for?

This equipment wire can be applied to endless applications. these can range from domestic household appliances, industrial equipment and factory machine. Due to the reliability of the copper conductors, these types of wires are usually the preferred choice with any internal wiring system. As an example, these are some common places you would find equipment wire:

• Circuit boards
• Computer internals
• Mobile phones and other battery operated devices
• Vehicle lights

Benefits of a copper conductor

Copper is the go to metal for nearly all cable. Due to the excellent conduction of electricity it provides. Circuit boards, telephone lines, power cables (including multicore) all use copper as the solid interior of their wire. There are different variations of copper available, such as:

• Silver plated copper
• Annealed copper
• Nickel plated copper
• Tinned copper

Standards

EN 2267-010, prEN 3475
