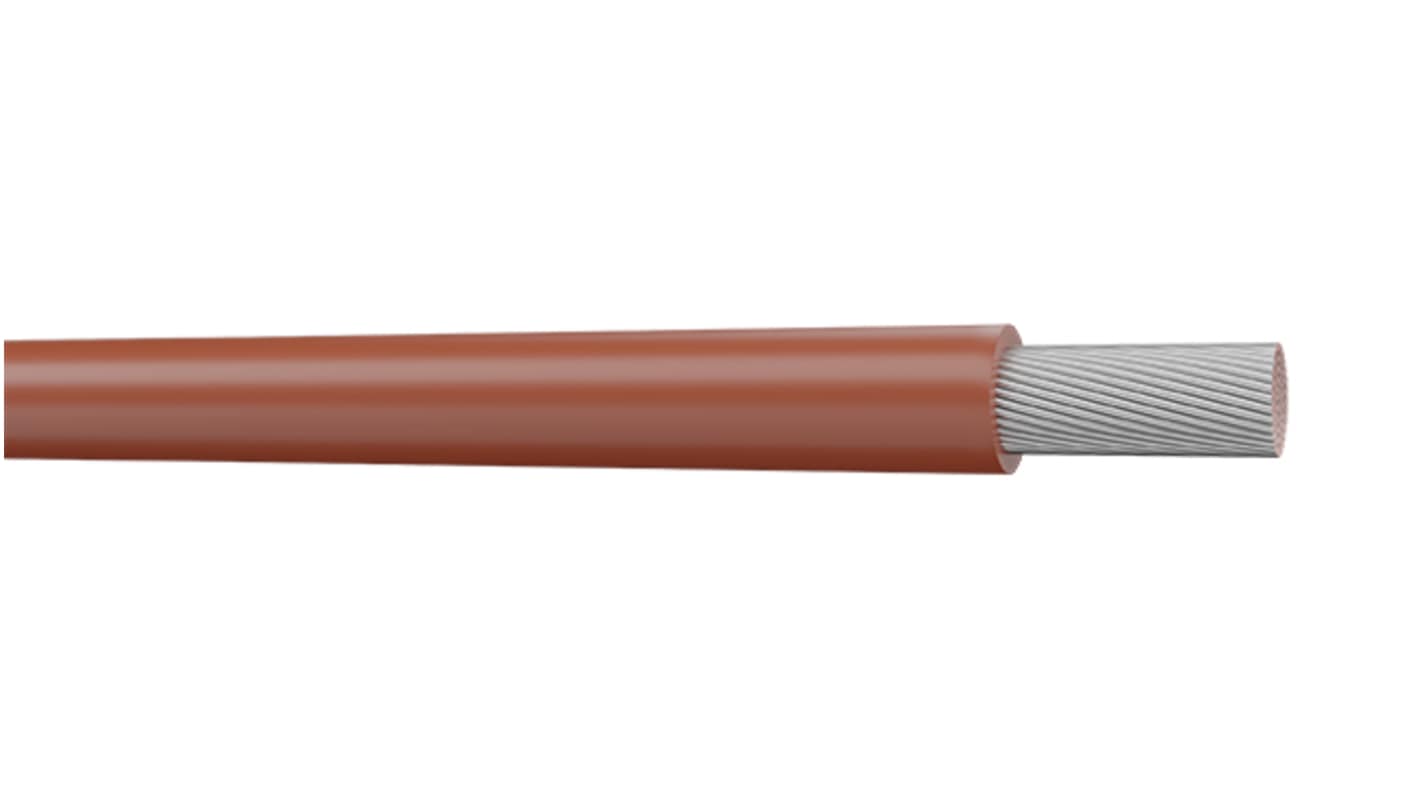

AXINDUS UL1015 Series Brown Hook Up Wire, 16 AWG, 305m, PVC Insulation, UL101516M
- RS Stock No.:
- 642-590
- Mfr. Part No.:
- UL101516M
- Brand:
- AXINDUS
Subtotal (1 reel of 305 metres)*
£239.16
(exc. VAT)
£286.99
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 2 unit(s) shipping from 21 November 2025
- Plus 999,999,997 unit(s) shipping from 25 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £239.16 | £0.784 |
*price indicative
- RS Stock No.:
- 642-590
- Mfr. Part No.:
- UL101516M
- Brand:
- AXINDUS
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | AXINDUS | |
| Sheath Colour | Brown | |
| American Wire Gauge | 16 AWG | |
| Length | 305m | |
| Insulation Material | PVC | |
| Voltage Rating | 600 V | |
| Outer Diameter | 3.1mm | |
| Minimum Operating Temperature | - 30°C | |
| Maximum Operating Temperature | + 105°C | |
| Conductor Material | Tinned Copper | |
| Fire Behaviour | VW-1 / FT-1 (UL 1581) | |
| Series | UL1015 | |
| Shield Type | Unshielded | |
Select all | ||
|---|---|---|
Brand AXINDUS | ||
Sheath Colour Brown | ||
American Wire Gauge 16 AWG | ||
Length 305m | ||
Insulation Material PVC | ||
Voltage Rating 600 V | ||
Outer Diameter 3.1mm | ||
Minimum Operating Temperature - 30°C | ||
Maximum Operating Temperature + 105°C | ||
Conductor Material Tinned Copper | ||
Fire Behaviour VW-1 / FT-1 (UL 1581) | ||
Series UL1015 | ||
Shield Type Unshielded | ||
- COO (Country of Origin):
- TK
The CAE Groupe PVC switching cable designed for internal wiring of switch boards, medical devices, electronic modules and control systems and for installation in conduits and pipes in machinery and as connecting wire for transformers and motors.
RoHS compliant
UL101 and CSA approved
Copper strand tinned conductor
UL101 and CSA approved
Copper strand tinned conductor
