Lapp OLFLEX HEAT Series Blue 1.5 mm² Hook Up Wire, 16 AWG, 100 m, Polyolefin, 1235002
- RS Stock No.:
- 400-285
- Mfr. Part No.:
- 1235002
- Brand:
- Lapp
Subtotal (1 reel of 100 metres)*
£58.43
(exc. VAT)
£70.12
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 3 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £58.43 | £0.584 |
*price indicative
- RS Stock No.:
- 400-285
- Mfr. Part No.:
- 1235002
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Product Type | Hook Up Wire | |
| Cross Sectional Area | 1.5 mm² | |
| Jacket Colour | Blue | |
| American Wire Gauge | 16AWG | |
| Cable Length | 100m | |
| Maximum Operating Temperature | 125°C | |
| Conductor Material | Tinned Copper | |
| Minimum Operating Temperature | -55°C | |
| Sub Type | High Temperature Control Cable | |
| Standards/Approvals | VDE tested, VDE 0473 396, method B, method A, ISO 4892 2, IEC 61034 2, IEC 60754 2, IEC 60754 1, IEC 60332 3 25, IEC 60332 3 24, IEC 60332 1 2, EN 50525 3 41, DIN EN 50290 2 22 (TM54), DNV GL TAE00003NF, EN 50396, EN 50305 | |
| Cable Type | Single Core | |
| Jacket Material | Polyolefin | |
| Fire Behaviour | Non-Corrosive Gases | |
| Series | OLFLEX HEAT | |
| Select all | ||
|---|---|---|
Brand Lapp | ||
Product Type Hook Up Wire | ||
Cross Sectional Area 1.5 mm² | ||
Jacket Colour Blue | ||
American Wire Gauge 16AWG | ||
Cable Length 100m | ||
Maximum Operating Temperature 125°C | ||
Conductor Material Tinned Copper | ||
Minimum Operating Temperature -55°C | ||
Sub Type High Temperature Control Cable | ||
Standards/Approvals VDE tested, VDE 0473 396, method B, method A, ISO 4892 2, IEC 61034 2, IEC 60754 2, IEC 60754 1, IEC 60332 3 25, IEC 60332 3 24, IEC 60332 1 2, EN 50525 3 41, DIN EN 50290 2 22 (TM54), DNV GL TAE00003NF, EN 50396, EN 50305 | ||
Cable Type Single Core | ||
Jacket Material Polyolefin | ||
Fire Behaviour Non-Corrosive Gases | ||
Series OLFLEX HEAT | ||
- COO (Country of Origin):
- KR

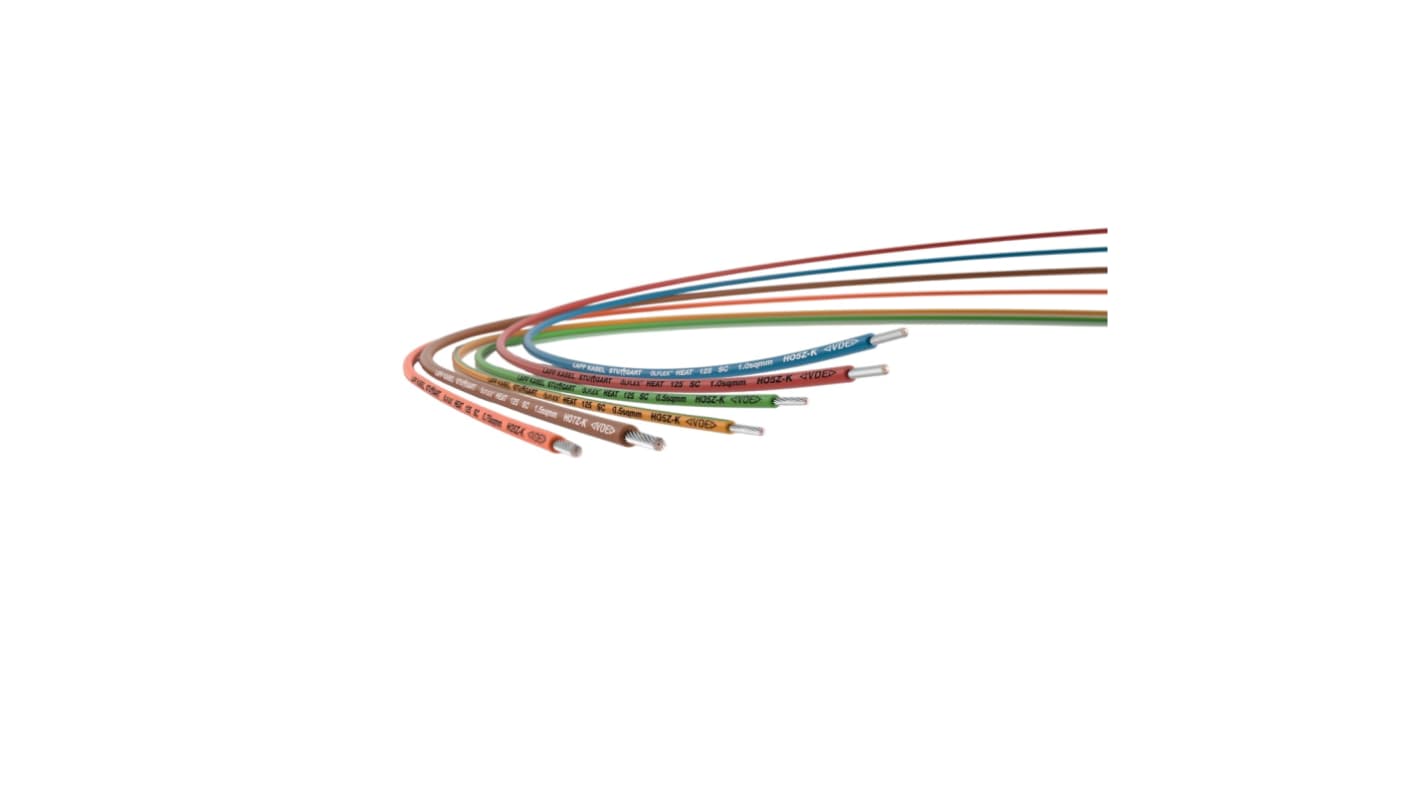

The Lapp High Temperature Control Cable is a heat resistant, halogen free single conductor insulated with a cross-linked LSZH polyolefin copolymer compound, offering excellent fire resistant properties and a wide temperature range. It enhances safety by reducing flame propagation, smoke density, and toxicity in case of fire, minimizing damage to buildings and equipment from toxic acid fumes. Ideal for wiring and connection of lighting, heating appliances, control cabinets, and distributors in mechanical and plant engineering, it can be installed in tubes, plaster, and closed installation ducts. Additionally, it is suitable for applications like coil winding, electromagnets, pumps, electrical systems, heat treatment plants, and pressure die casting, making it a versatile solution for high risk environments.
Flame retardant
Halogen free
Cold resistant
UV resistant
Oil resistant according to DIN EN 50290-2-22
