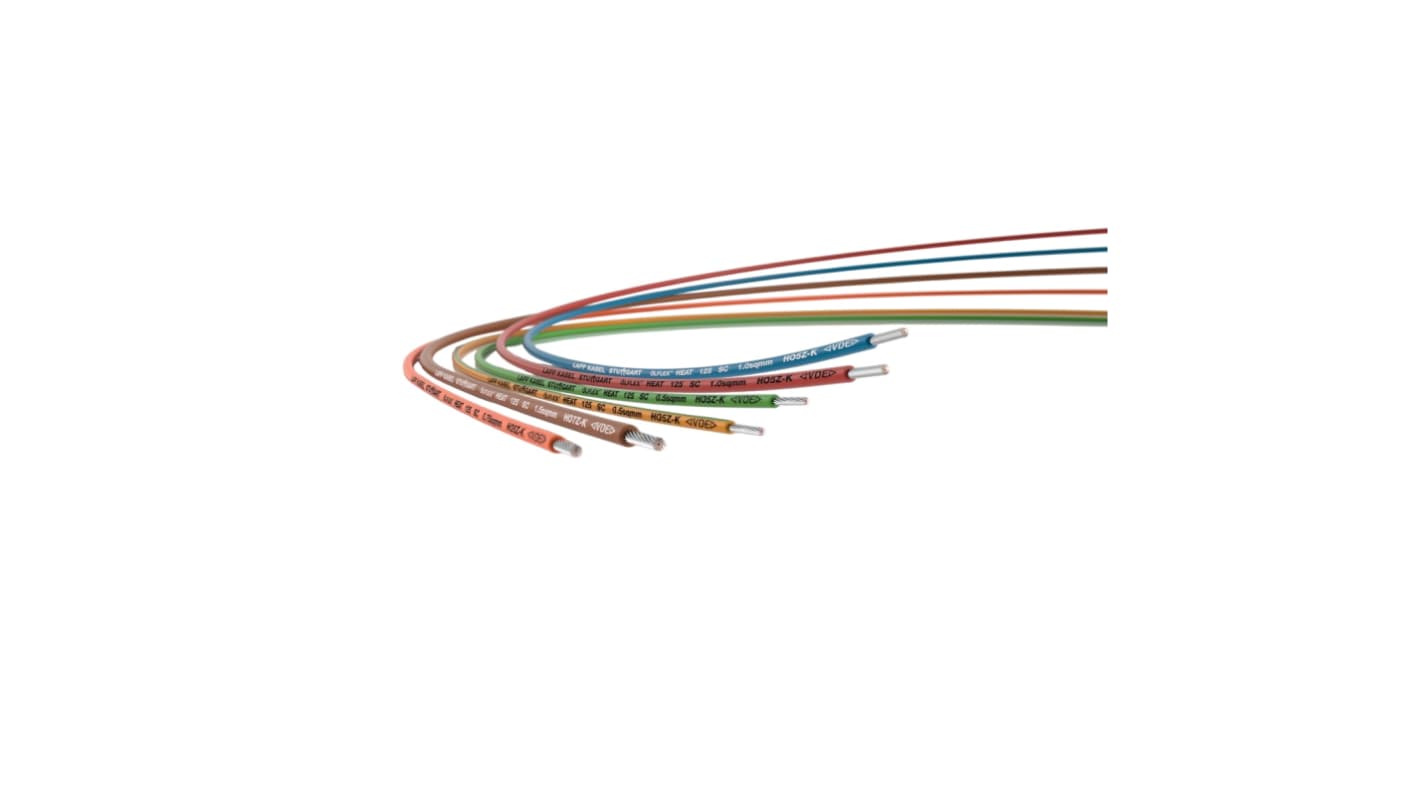

Lapp OLFLEX HEAT Series Brown 1 mm² Hook Up Wire, 18 AWG, 100 m, Polyolefin, 1234003
- RS Stock No.:
- 400-187
- Mfr. Part No.:
- 1234003
- Brand:
- Lapp
Subtotal (1 reel of 100 metres)*
£44.34
(exc. VAT)
£53.21
(inc. VAT)
Stock information currently inaccessible - Please check back later
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £44.34 | £0.443 |
*price indicative
- RS Stock No.:
- 400-187
- Mfr. Part No.:
- 1234003
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Cross Sectional Area | 1 mm² | |
| Product Type | Hook Up Wire | |
| Jacket Colour | Brown | |
| American Wire Gauge | 18AWG | |
| Cable Length | 100m | |
| Maximum Operating Temperature | 125°C | |
| Conductor Material | Tinned Copper | |
| Jacket Material | Polyolefin | |
| Cable Type | Single Core | |
| Minimum Operating Temperature | -55°C | |
| Standards/Approvals | VDE 0473-396, VDE, ISO 4892-2, IEC 61034-2, IEC 60754-2, IEC 60754-1, IEC 60332-3, IEC 60332-1-2, EN 50525-3-41, EN 50396, EN 50305, DNV GL certificate no. TAE00003NF, DIN EN 50290-2-22 (TM54) | |
| Fire Behaviour | Non-Corrosive Gases | |
| Series | OLFLEX HEAT | |
| Select all | ||
|---|---|---|
Brand Lapp | ||
Cross Sectional Area 1 mm² | ||
Product Type Hook Up Wire | ||
Jacket Colour Brown | ||
American Wire Gauge 18AWG | ||
Cable Length 100m | ||
Maximum Operating Temperature 125°C | ||
Conductor Material Tinned Copper | ||
Jacket Material Polyolefin | ||
Cable Type Single Core | ||
Minimum Operating Temperature -55°C | ||
Standards/Approvals VDE 0473-396, VDE, ISO 4892-2, IEC 61034-2, IEC 60754-2, IEC 60754-1, IEC 60332-3, IEC 60332-1-2, EN 50525-3-41, EN 50396, EN 50305, DNV GL certificate no. TAE00003NF, DIN EN 50290-2-22 (TM54) | ||
Fire Behaviour Non-Corrosive Gases | ||
Series OLFLEX HEAT | ||
- COO (Country of Origin):
- KR
The Lapp High Temperature Control Cable is a heat resistant, halogen free single conductor insulated with a cross-linked LSZH polyolefin copolymer compound, offering excellent fire resistant properties and a wide temperature range. It enhances safety by reducing flame propagation, smoke density, and toxicity in case of fire, minimizing damage to buildings and equipment from toxic acid fumes. Ideal for wiring and connection of lighting, heating appliances, control cabinets, and distributors in mechanical and plant engineering, it can be installed in tubes, plaster, and closed installation ducts. Additionally, it is suitable for applications like coil winding, electromagnets, pumps, electrical systems, heat treatment plants, and pressure die casting, making it a versatile solution for high risk environments.
Flame retardant
Cold resistant
UV resistant
Oil resistant according to DIN EN 50290-2-22
