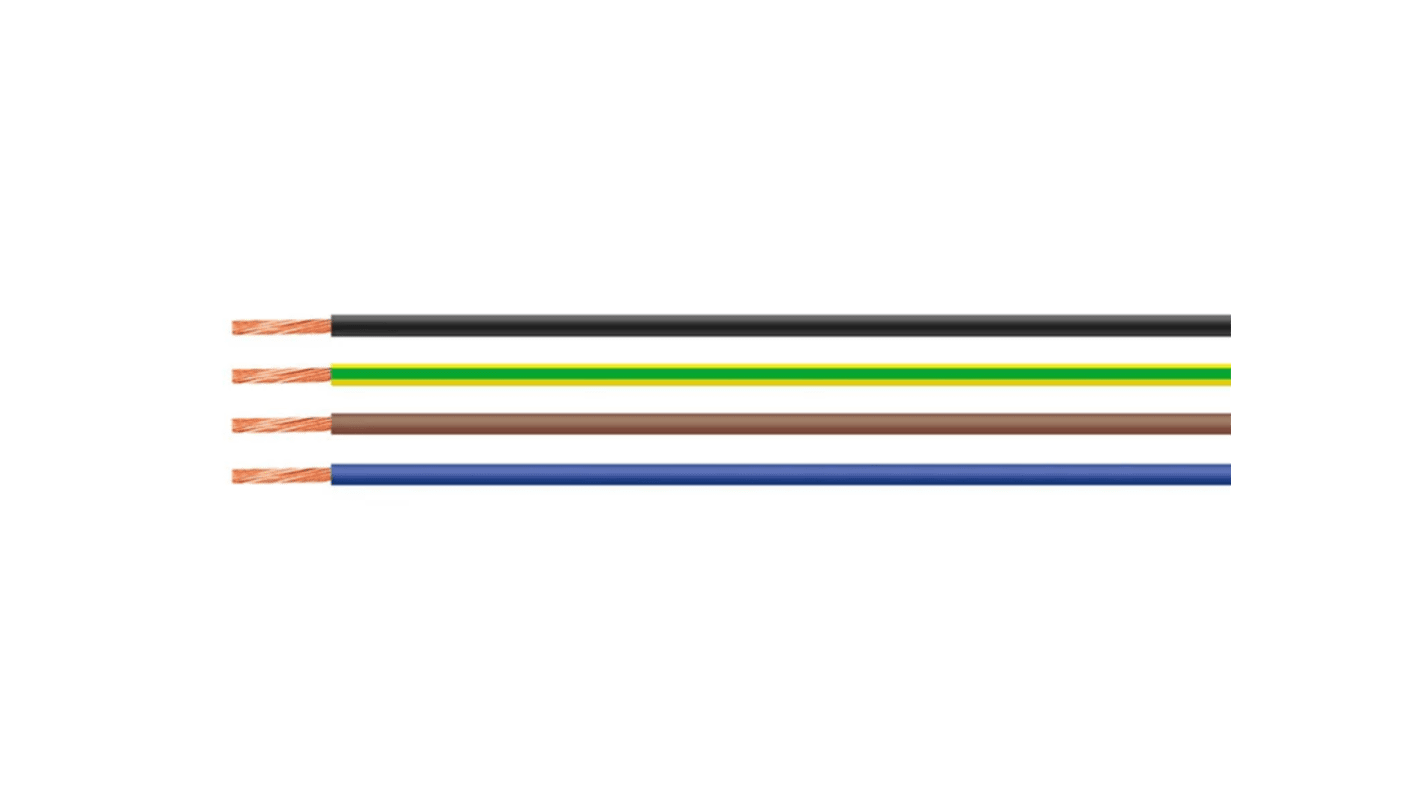

Helukabel H05V Series Green, Yellow 0.5 mm² Hook Up Wire, 20 AWG, 100 m, Polyvinyl Chloride, 29082
- RS Stock No.:
- 362-001
- Mfr. Part No.:
- 29082
- Brand:
- Helukabel
Subtotal (1 reel of 100 metres)*
£10.08
(exc. VAT)
£12.10
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £10.08 | £0.101 |
*price indicative
- RS Stock No.:
- 362-001
- Mfr. Part No.:
- 29082
- Brand:
- Helukabel
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Helukabel | |
| Cross Sectional Area | 0.5 mm² | |
| Product Type | Hook Up Wire | |
| Jacket Colour | Green, Yellow | |
| American Wire Gauge | 20AWG | |
| Cable Length | 100m | |
| Voltage | 500V | |
| Outside Diameter | 2.8mm | |
| Maximum Operating Temperature | 80°C | |
| Conductor Material | Copper | |
| Cable Type | Round | |
| Minimum Operating Temperature | -30°C | |
| Standards/Approvals | DIN EN 50525-2-31, IEC 60228 cl.5, IEC 60227-3, EC Low-Voltage Directive 2006/95/EC, DIN VDE 0295 cl.5, DIN VDE 0285-525-2-31, BS 6360 cl.5, DIN EN 50363-3, DIN VDE 0207-363-3 | |
| Jacket Material | Polyvinyl Chloride | |
| Fire Behaviour | Flame Retardant, Self-Extinguishing | |
| Series | H05V | |
| Select all | ||
|---|---|---|
Brand Helukabel | ||
Cross Sectional Area 0.5 mm² | ||
Product Type Hook Up Wire | ||
Jacket Colour Green, Yellow | ||
American Wire Gauge 20AWG | ||
Cable Length 100m | ||
Voltage 500V | ||
Outside Diameter 2.8mm | ||
Maximum Operating Temperature 80°C | ||
Conductor Material Copper | ||
Cable Type Round | ||
Minimum Operating Temperature -30°C | ||
Standards/Approvals DIN EN 50525-2-31, IEC 60228 cl.5, IEC 60227-3, EC Low-Voltage Directive 2006/95/EC, DIN VDE 0295 cl.5, DIN VDE 0285-525-2-31, BS 6360 cl.5, DIN EN 50363-3, DIN VDE 0207-363-3 | ||
Jacket Material Polyvinyl Chloride | ||
Fire Behaviour Flame Retardant, Self-Extinguishing | ||
Series H05V | ||
- COO (Country of Origin):
- DE
The Helukabel PVC Single core cables are determined for the installation to the inside of apparatus as well as for the protective laying to the lightings, in dry rooms, in production facilities, switch and distributor boards, in tubes, under and surface mounting of plasters.
Radiation resistance
Insulation resistance
PVC self extinguishing and flame retardant
DIN VDE 0482-332-1-2 and DIN EN 60332-1-2 standard
