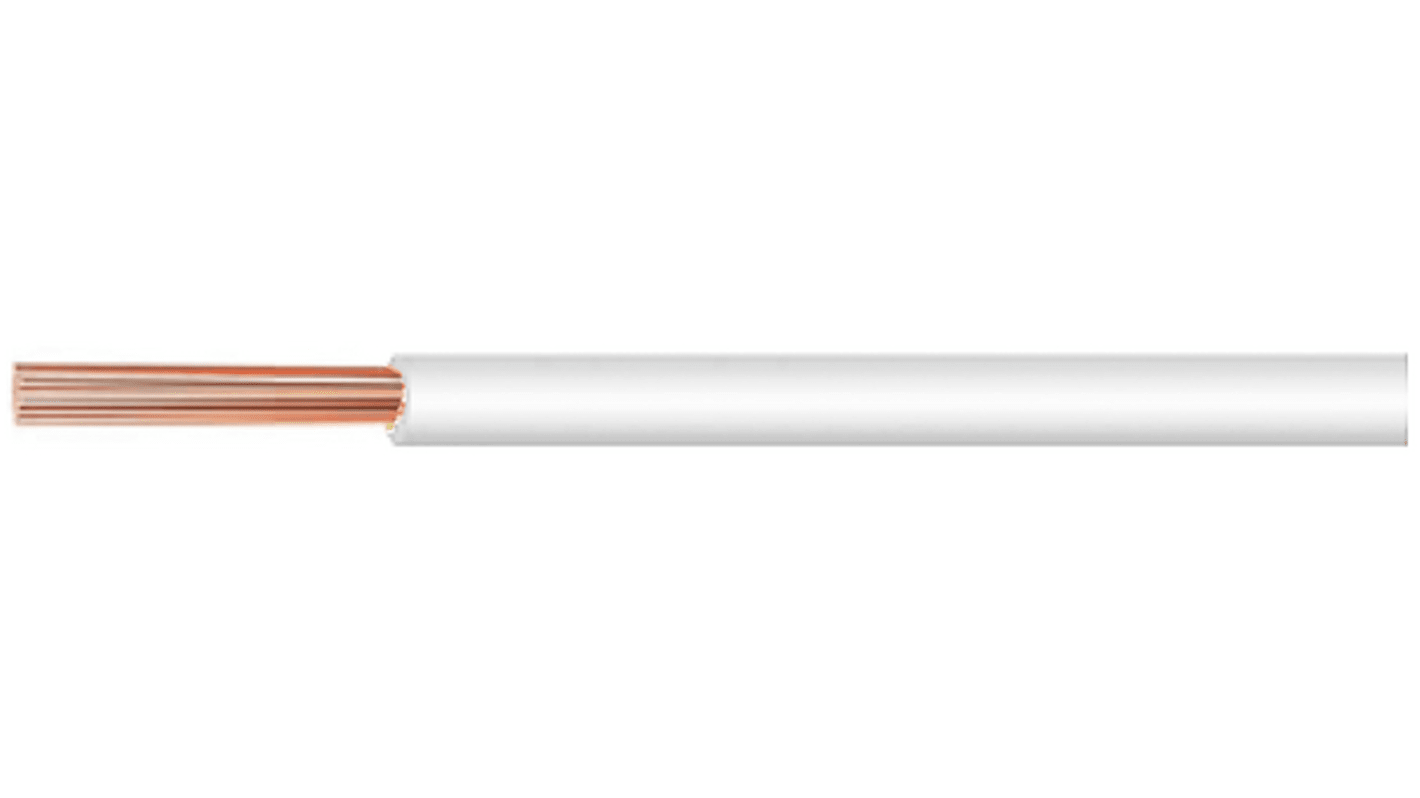

Helukabel LIYV Series White 0.5 mm² Hook Up Wire, 20 AWG, 100 m, Polyvinyl Chloride, 26442
- RS Stock No.:
- 361-994
- Distrelec Article No.:
- 300-80-586
- Mfr. Part No.:
- 26442
- Brand:
- Helukabel
Subtotal (1 reel of 100 metres)*
£15.64
(exc. VAT)
£18.77
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 10 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £15.64 | £0.156 |
*price indicative
- RS Stock No.:
- 361-994
- Distrelec Article No.:
- 300-80-586
- Mfr. Part No.:
- 26442
- Brand:
- Helukabel
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Helukabel | |
| Product Type | Hook Up Wire | |
| Cross Sectional Area | 0.5 mm² | |
| Jacket Colour | White | |
| American Wire Gauge | 20AWG | |
| Cable Length | 100m | |
| Voltage | 900 V | |
| Maximum Operating Temperature | 70°C | |
| Conductor Material | Tinned Copper | |
| Standards/Approvals | DIN VD0812, DIN VD0295 Css 5, DIN VD0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1-2, EAC, IEC 60228 Css 5 | |
| Minimum Operating Temperature | 30°C | |
| Cable Type | Round | |
| Jacket Material | Polyvinyl Chloride | |
| Fire Behaviour | Flame Retardant, Oil Resistant | |
| Series | LIYV | |
| Select all | ||
|---|---|---|
Brand Helukabel | ||
Product Type Hook Up Wire | ||
Cross Sectional Area 0.5 mm² | ||
Jacket Colour White | ||
American Wire Gauge 20AWG | ||
Cable Length 100m | ||
Voltage 900 V | ||
Maximum Operating Temperature 70°C | ||
Conductor Material Tinned Copper | ||
Standards/Approvals DIN VD0812, DIN VD0295 Css 5, DIN VD0482-332-1-2 / DIN EN 60332-1-2 / IEC 60332-1-2, EAC, IEC 60228 Css 5 | ||
Minimum Operating Temperature 30°C | ||
Cable Type Round | ||
Jacket Material Polyvinyl Chloride | ||
Fire Behaviour Flame Retardant, Oil Resistant | ||
Series LIYV | ||
- COO (Country of Origin):
- DE
The Helukabel PVC insulated flexible hook up wire for the wiring of low voltage systems, telecommunication devices and electronic modules within devices, racks and switchboards, not permitted for heavy current installations outside of appliances.
EAC certified
Flame retardant
PVC single core in alignment with DIN VDE 0812
