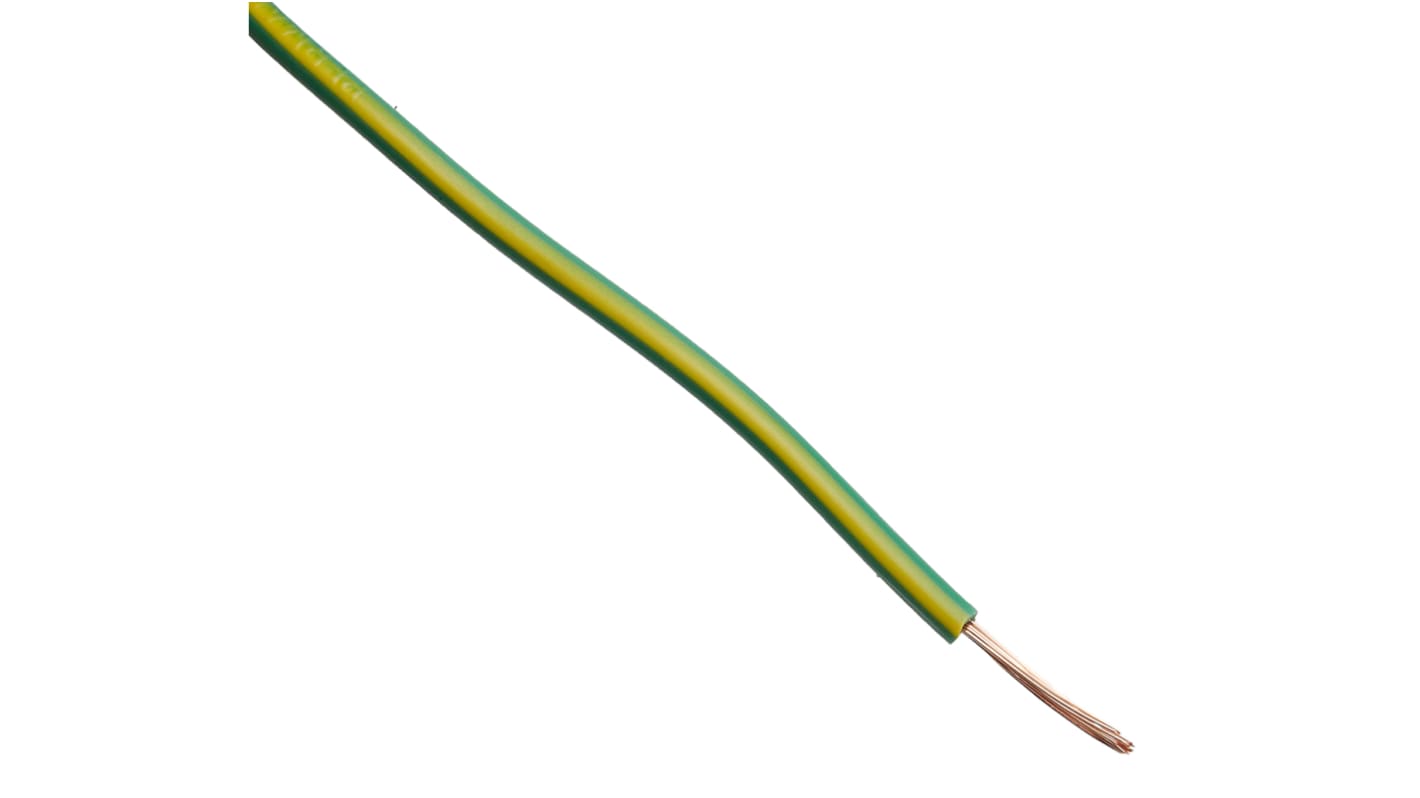

RS PRO Green/Yellow 0.75mm² Hook Up Wire, 18 AWG, 24/0.2 mm, 100m, PVC Insulation
- RS Stock No.:
- 361-670
- Brand:
- RS PRO
Subtotal (1 reel of 100 metres)*
£35.15
(exc. VAT)
£42.18
(inc. VAT)
FREE delivery for orders over £50.00
- 67 unit(s) ready to ship
- Plus 7 unit(s) ready to ship from another location
- Plus 9 unit(s) ready to ship from another location
Reel(s) | Per Reel | Per Metre* |
---|---|---|
1 - 4 | £35.15 | £0.352 |
5 - 9 | £33.40 | £0.334 |
10 - 19 | £31.64 | £0.316 |
20 + | £24.85 | £0.248 |
*price indicative
- RS Stock No.:
- 361-670
- Brand:
- RS PRO
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Cross Sectional Area | 0.75mm² | |
Sheath Colour | Green/Yellow | |
Cable Shape | Single Core | |
American Wire Gauge | 18 AWG | |
Core Strands | 24/0.2 mm | |
Length | 100m | |
European Harmonised Code | H05V-K | |
Insulation Material | PVC | |
Voltage Rating | 500 V | |
Outer Diameter | 2.7mm | |
Minimum Operating Temperature | -15°C | |
Maximum Operating Temperature | +70°C | |
Conductor Material | Annealed Copper | |
Standards Met | BS 6004, BS EN 50525-2-31, RoHS Compliant | |
Wire Style | 2491X | |
Series | 2491X | |
Insulation Wall Thickness | 0.6mm | |
Harmonised Code | H05V-K | |
Shield Type | Unshielded | |
Outer Sheath Material | PVC | |
Size of Strands | 0.2mm | |
Number of Strands | 24 | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Cross Sectional Area 0.75mm² | ||
Sheath Colour Green/Yellow | ||
Cable Shape Single Core | ||
American Wire Gauge 18 AWG | ||
Core Strands 24/0.2 mm | ||
Length 100m | ||
European Harmonised Code H05V-K | ||
Insulation Material PVC | ||
Voltage Rating 500 V | ||
Outer Diameter 2.7mm | ||
Minimum Operating Temperature -15°C | ||
Maximum Operating Temperature +70°C | ||
Conductor Material Annealed Copper | ||
Standards Met BS 6004, BS EN 50525-2-31, RoHS Compliant | ||
Wire Style 2491X | ||
Series 2491X | ||
Insulation Wall Thickness 0.6mm | ||
Harmonised Code H05V-K | ||
Shield Type Unshielded | ||
Outer Sheath Material PVC | ||
Size of Strands 0.2mm | ||
Number of Strands 24 | ||
