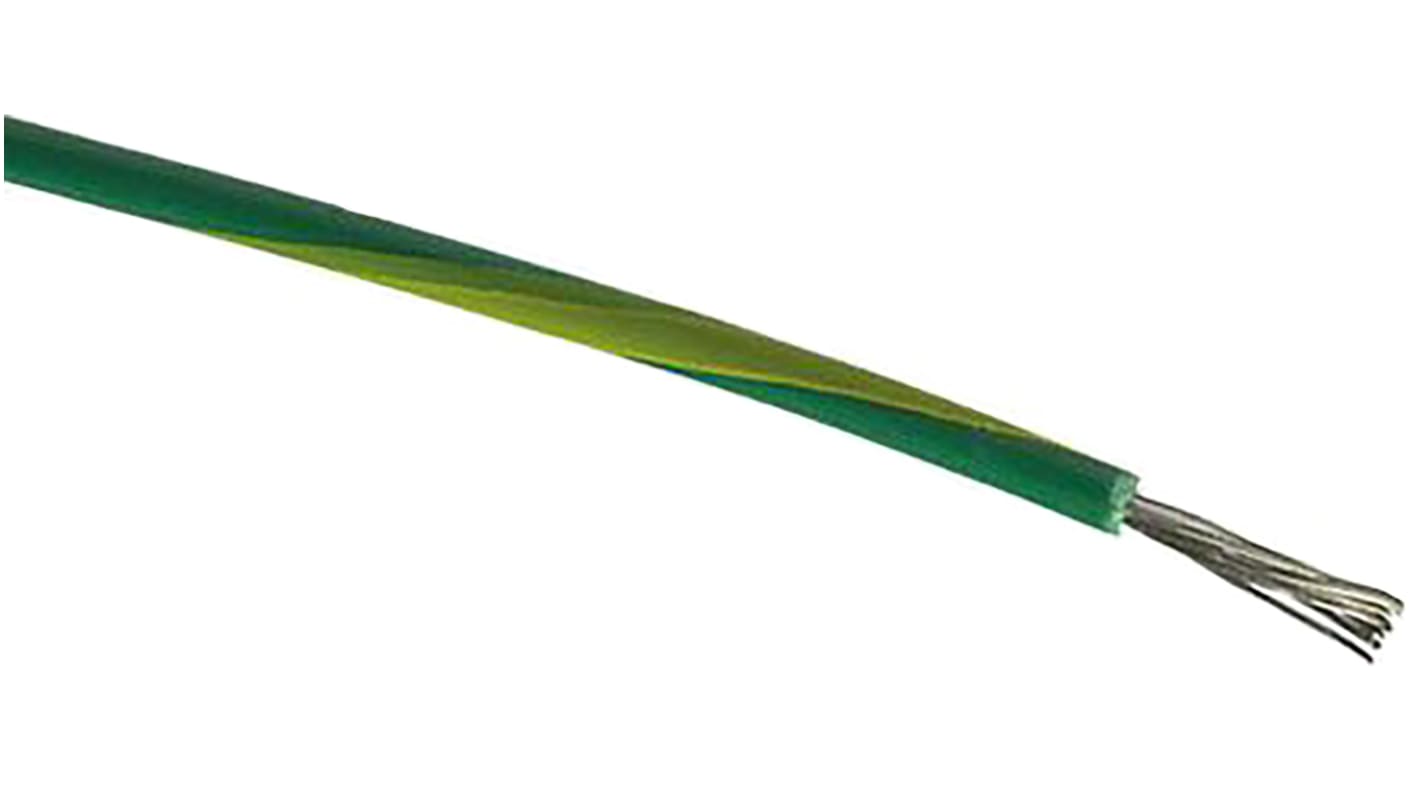

RS PRO Green/Yellow 6 mm² Single Core Control Cable, 9 AWG, 7/1.04 mm, 100m, PVC Insulation
- RS Stock No.:
- 359-223
- Brand:
- RS PRO
Unavailable
RS will no longer stock this product.
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Reel of 100 Metre(s)
£332.44
(exc. VAT)
£398.93
(inc. VAT)
- RS Stock No.:
- 359-223
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Cross Sectional Area | 6 mm² | |
| Sheath Colour | Green/Yellow | |
| American Wire Gauge | 9 AWG | |
| Cable Shape | Single Core | |
| Core Strands | 7/1.04 mm | |
| Length | 100m | |
| Insulation Material | PVC | |
| Outer Diameter | 5.4mm | |
| Voltage Rating | 600 V | |
| Maximum Operating Temperature | +70°C | |
| Current Rating | 48 A | |
| Conductor Material | Annealed Copper | |
| Standards Met | BS 6231 | |
| Insulation Wall Thickness | 0.8mm | |
| Size of Strands | 1.04 mm | |
| Number of Strands | 7 | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Cross Sectional Area 6 mm² | ||
Sheath Colour Green/Yellow | ||
American Wire Gauge 9 AWG | ||
Cable Shape Single Core | ||
Core Strands 7/1.04 mm | ||
Length 100m | ||
Insulation Material PVC | ||
Outer Diameter 5.4mm | ||
Voltage Rating 600 V | ||
Maximum Operating Temperature +70°C | ||
Current Rating 48 A | ||
Conductor Material Annealed Copper | ||
Standards Met BS 6231 | ||
Insulation Wall Thickness 0.8mm | ||
Size of Strands 1.04 mm | ||
Number of Strands 7 | ||
- COO (Country of Origin):
- GB
Standards
BS6231
