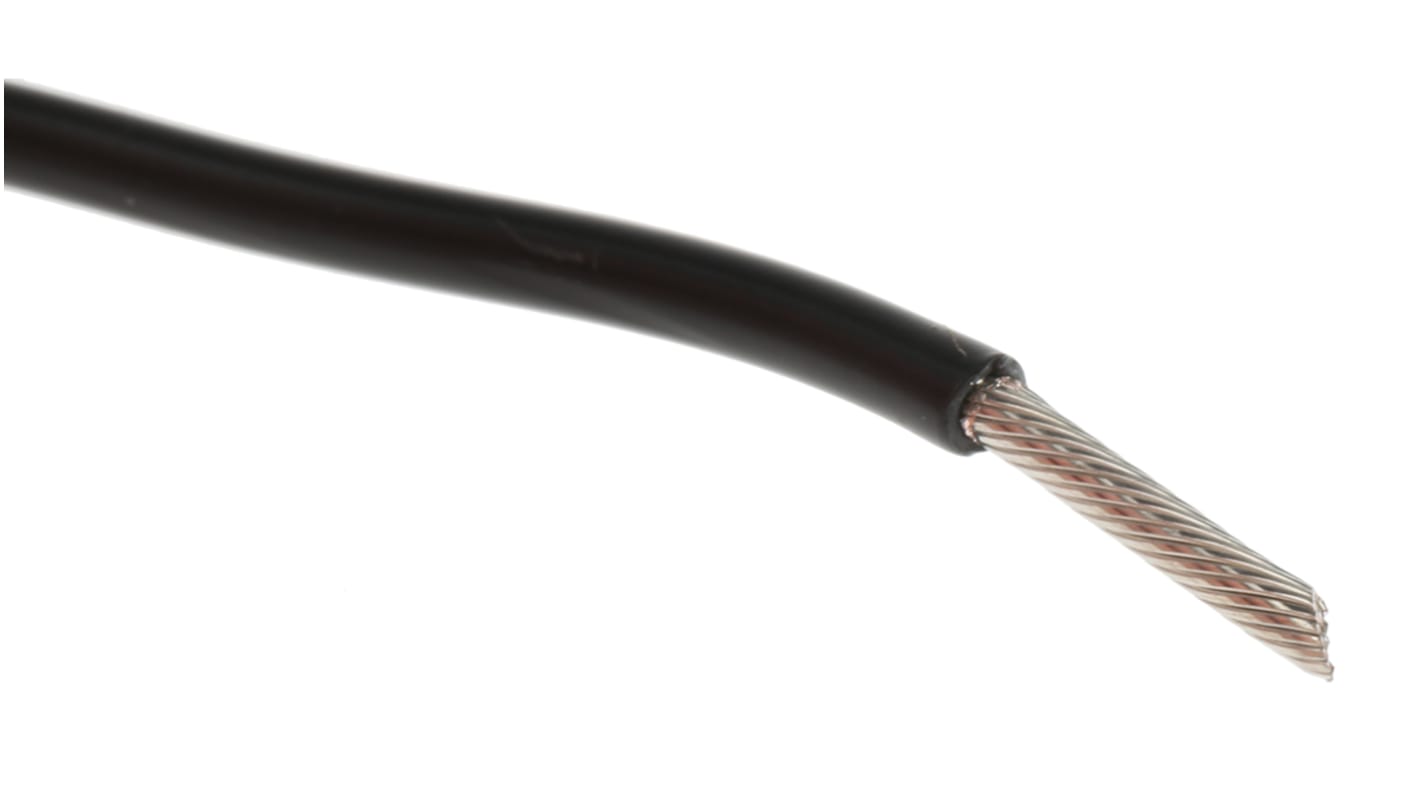

Alpha Wire Premium Series Black 1.3 mm² Hook Up Wire, 16 AWG, 26/0.25 mm, 30m, PVC Insulation, 3057 BK005
- RS Stock No.:
- 333-408
- Distrelec Article No.:
- 300-83-091
- Mfr. Part No.:
- 3057 BK005
- Brand:
- Alpha Wire
Subtotal (1 reel of 30 metres)*
£27.82
(exc. VAT)
£33.38
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 31 unit(s) ready to ship
- Plus 2 unit(s) ready to ship from another location
- Plus 9 unit(s) shipping from 02 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £27.82 | £0.927 |
*price indicative
- RS Stock No.:
- 333-408
- Distrelec Article No.:
- 300-83-091
- Mfr. Part No.:
- 3057 BK005
- Brand:
- Alpha Wire
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Cross Sectional Area | 1.3 mm² | |
| Sheath Colour | Black | |
| American Wire Gauge | 16 AWG | |
| Cable Shape | Single Core | |
| Core Strands | 26/0.25 mm | |
| Length | 30m | |
| Insulation Material | PVC | |
| Outer Diameter | 2.34mm | |
| Voltage Rating | 300 V | |
| Maximum Operating Temperature | +105°C | |
| Minimum Operating Temperature | -40°C | |
| Conductor Material | Tinned Copper | |
| Cable Type | Single Core | |
| Wire Style | UL1007 | |
| Standards Met | UL Listed | |
| Fire Behaviour | Flame Retardant | |
| Series | Premium | |
| Tri-rated | No | |
| Hook Up Wire Type | High Temperature | |
| Shield Type | Unshielded | |
| Insulation Wall Thickness | 0.4mm | |
| Resistant To | Chemicals, Oils, Solvents | |
| Size of Strands | 0.25 mm | |
| Number of Strands | 26 | |
| Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Cross Sectional Area 1.3 mm² | ||
Sheath Colour Black | ||
American Wire Gauge 16 AWG | ||
Cable Shape Single Core | ||
Core Strands 26/0.25 mm | ||
Length 30m | ||
Insulation Material PVC | ||
Outer Diameter 2.34mm | ||
Voltage Rating 300 V | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -40°C | ||
Conductor Material Tinned Copper | ||
Cable Type Single Core | ||
Wire Style UL1007 | ||
Standards Met UL Listed | ||
Fire Behaviour Flame Retardant | ||
Series Premium | ||
Tri-rated No | ||
Hook Up Wire Type High Temperature | ||
Shield Type Unshielded | ||
Insulation Wall Thickness 0.4mm | ||
Resistant To Chemicals, Oils, Solvents | ||
Size of Strands 0.25 mm | ||
Number of Strands 26 | ||
Belden Premium Series Hook Up Wire, 1.3mm² Cross Sectional Area, 30m Length - 3057 BK005
This hook up wire serves as a robust solution for various electrical applications. Designed with a single core of tinned copper, the cable features durable PVC insulation, ensuring effective performance in diverse settings. With a cross-sectional area of 1.3 mm² and a length of 30 m, it is well-suited for automation and electronic installations where reliability is paramount.
Features & Benefits
• Flame-retardant properties enhance safety in installations
• PVC insulation provides reliable durability and flexibility
• Operates efficiently in temperatures ranging from -40°C to +105°C
• Rated for 300V, suitable for a wide range of applications
• Resistant to oils, solvents, and chemicals, ensuring longevity
• UL1007 wire specifications ensure compliance and trust
• PVC insulation provides reliable durability and flexibility
• Operates efficiently in temperatures ranging from -40°C to +105°C
• Rated for 300V, suitable for a wide range of applications
• Resistant to oils, solvents, and chemicals, ensuring longevity
• UL1007 wire specifications ensure compliance and trust
Applications
• Utilised in control panels and automation equipment
• Compatible with electronic assemblies and circuits
• Ideal for internal wiring in appliances and machinery
• Employed in mechanical systems requiring high-temperature tolerance
• Compatible with electronic assemblies and circuits
• Ideal for internal wiring in appliances and machinery
• Employed in mechanical systems requiring high-temperature tolerance
What makes the insulation material suitable for tough environments?
The PVC insulation is designed to withstand a variety of harsh conditions, providing reliable protection against oils, solvents, and chemical exposure, thus ensuring a longer lifespan in demanding settings.
How does the wire’s temperature rating benefit its usage?
The extended temperature range from -40°C to +105°C allows this wire to be used in both cold and hot environments, making it versatile for applications in different climates and conditions.
What is the significance of its flame-retardant feature?
The flame-retardant properties ensure that the wire reduces the risk of fire hazards, which is crucial for installations in areas where safety is a priority, such as industrial and commercial settings.
