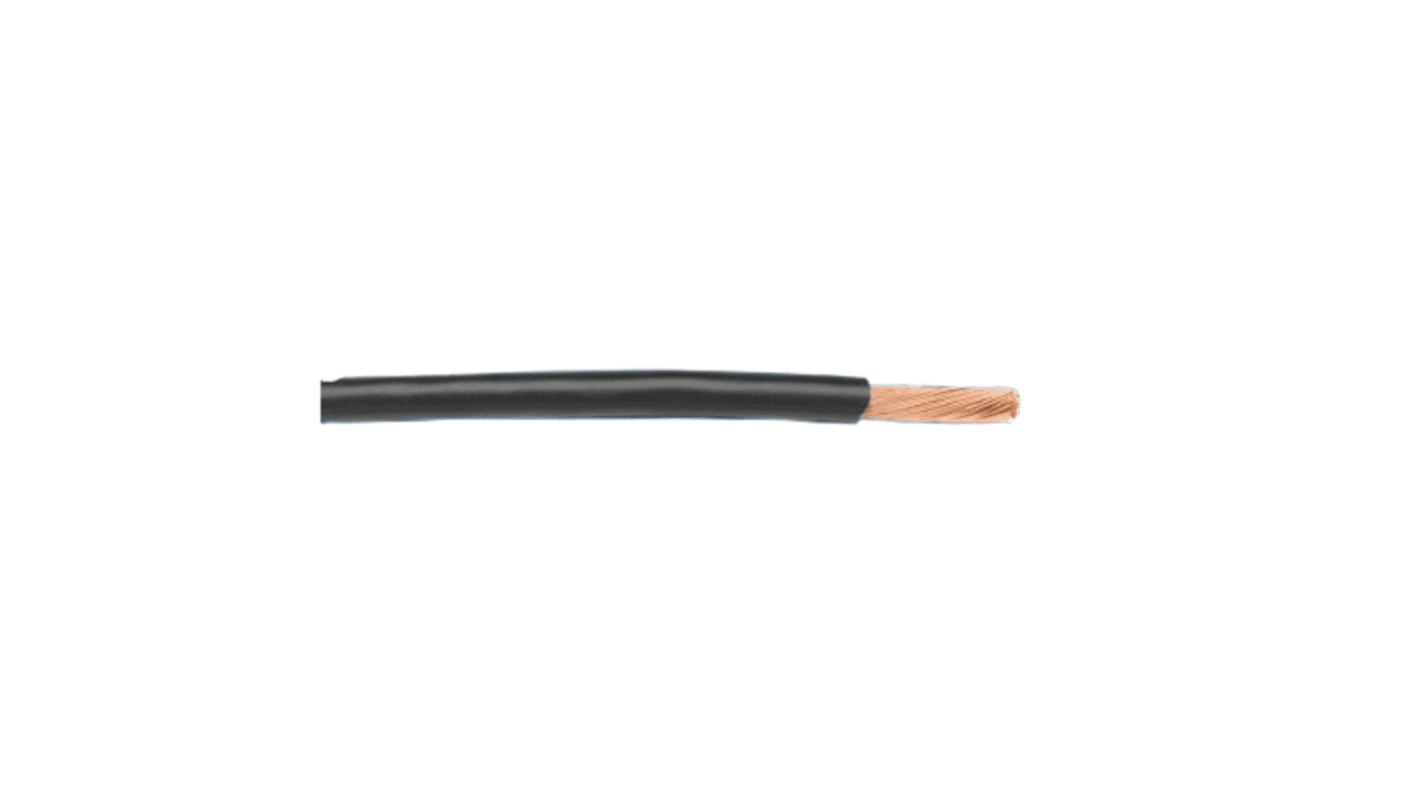

Alpha Wire 3070 Series Black 0.23 mm² Hook Up Wire, 24 AWG, 7, 1000 ft, 3070 BK001
- RS Stock No.:
- 290-741
- Mfr. Part No.:
- 3070 BK001
- Brand:
- Alpha Wire
Subtotal (1 reel of 305 metres)*
£70.89
(exc. VAT)
£85.07
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 15 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £70.89 | £0.232 |
*price indicative
- RS Stock No.:
- 290-741
- Mfr. Part No.:
- 3070 BK001
- Brand:
- Alpha Wire
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Cross Sectional Area | 0.23 mm² | |
| Product Type | Hook Up Wire | |
| Jacket Colour | Black | |
| American Wire Gauge | 24AWG | |
| Core Strands | 7 | |
| Cable Length | 1000ft | |
| Maximum Operating Temperature | 105°C | |
| Conductor Material | Tinned Copper | |
| Minimum Operating Temperature | -40°C | |
| Standards/Approvals | CE: EU Low Voltage Directive 2014/35/EU, CSA International TEW-105 105C / 600 VRMS AWM I A/B 105C / 600 VRMS FT1, IEC EN 60332-2 Flame Behavior, UL AWM/STYLE 1015 105C / 600 VRMS AWM/STYLE 1230 105C Dry / 60C Wet / 600 VRMS VW-1 | |
| Cable Type | Hookup | |
| Fire Behaviour | Flame Retardant | |
| Series | 3070 | |
| Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Cross Sectional Area 0.23 mm² | ||
Product Type Hook Up Wire | ||
Jacket Colour Black | ||
American Wire Gauge 24AWG | ||
Core Strands 7 | ||
Cable Length 1000ft | ||
Maximum Operating Temperature 105°C | ||
Conductor Material Tinned Copper | ||
Minimum Operating Temperature -40°C | ||
Standards/Approvals CE: EU Low Voltage Directive 2014/35/EU, CSA International TEW-105 105C / 600 VRMS AWM I A/B 105C / 600 VRMS FT1, IEC EN 60332-2 Flame Behavior, UL AWM/STYLE 1015 105C / 600 VRMS AWM/STYLE 1230 105C Dry / 60C Wet / 600 VRMS VW-1 | ||
Cable Type Hookup | ||
Fire Behaviour Flame Retardant | ||
Series 3070 | ||
Rupali
The Alpha Wire Hook Up Wire supports a bend radius of 5 times the cable diameter and a maximum pull tension of 3.5 lbs. Its electrical properties include a 600 VRMS voltage rating. This broad range of hook up wire ensures you will find the perfect solution for your application, whether its as straightforward as a control cabinet in a protected environment or as specialized as a machine tool on the factory floor, a high temperature oven or off road construction equipment. These wires are designed to meet your requirements for temperature resistance, durability against wear and abrasion and reliable electrical performance.
RoHS compliance
Resistance to oil and solvents
Resistance to chemicals
