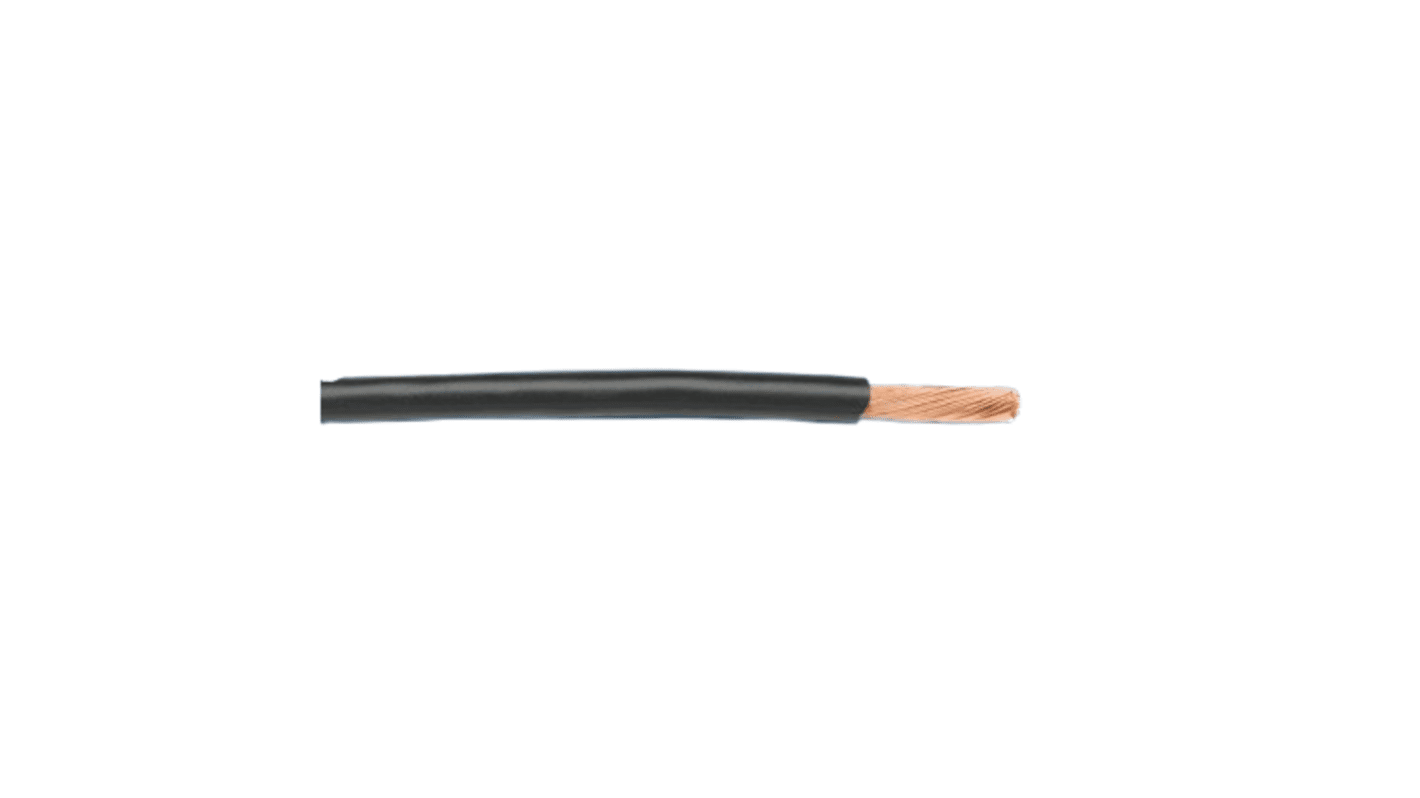

Alpha Wire 3051 Series Grey, White Hook Up Wire, 22 AWG 19 x, 0.0185 mm core strands, 100 ft, 3051 WS005
- RS Stock No.:
- 290-560
- Mfr. Part No.:
- 3051 WS005
- Brand:
- Alpha Wire
Subtotal (1 reel of 30 metres)*
£29.42
(exc. VAT)
£35.30
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £29.42 | £0.981 |
*price indicative
- RS Stock No.:
- 290-560
- Mfr. Part No.:
- 3051 WS005
- Brand:
- Alpha Wire
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Alpha Wire | |
| Product Type | Hook Up Wire | |
| Jacket Colour | Grey, White | |
| American Wire Gauge | 22AWG | |
| Core Strands | 19 x 0.0185mm | |
| Cable Length | 100ft | |
| Maximum Operating Temperature | 105°C | |
| Conductor Material | Tinned Copper | |
| Standards/Approvals | EU 2011/65/EU(RoHS2), CSA International TR 64 90C FT1, IEC EN 60332 2, UL AWM/STYLE 1007 80C / 300 VRMS, AWM/STYLE 1569 105C / 300 VRMS VW 1, EU 2015/863/EU (RoHS3), EU Low Voltage 2014/35/EU | |
| Minimum Operating Temperature | -40°C | |
| Cable Type | Hookup | |
| Fire Behaviour | Flame Retardant | |
| Series | 3051 | |
| Number of Strands | 19 | |
| Size of Strands | 0.0185mm | |
| Select all | ||
|---|---|---|
Brand Alpha Wire | ||
Product Type Hook Up Wire | ||
Jacket Colour Grey, White | ||
American Wire Gauge 22AWG | ||
Core Strands 19 x 0.0185mm | ||
Cable Length 100ft | ||
Maximum Operating Temperature 105°C | ||
Conductor Material Tinned Copper | ||
Standards/Approvals EU 2011/65/EU(RoHS2), CSA International TR 64 90C FT1, IEC EN 60332 2, UL AWM/STYLE 1007 80C / 300 VRMS, AWM/STYLE 1569 105C / 300 VRMS VW 1, EU 2015/863/EU (RoHS3), EU Low Voltage 2014/35/EU | ||
Minimum Operating Temperature -40°C | ||
Cable Type Hookup | ||
Fire Behaviour Flame Retardant | ||
Series 3051 | ||
Number of Strands 19 | ||
Size of Strands 0.0185mm | ||
- COO (Country of Origin):
- MX
Rupali
The Alpha Wire Hook Up Wire supports a bend radius of 10 times the cable diameter and a maximum pull tension of 5.5 lbs. Its electrical properties include a 300 VRMS voltage rating. This broad range of hook up wire ensures you will find the perfect solution for your application, whether its as straightforward as a control cabinet in a protected environment or as specialized as a machine tool on the factory floor, a high temperature oven or off road construction equipment. These wires are designed to meet your requirements for temperature resistance, durability against wear and abrasion and reliable electrical performance.
RoHS compliance
Resistance to oil and solvents
Resistance to chemicals
