YALE Electrical 3m 500 kg Hoist, CPV 5-4
- RS Stock No.:
- 684-3847
- Mfr. Part No.:
- CPV 5-4
- Brand:
- YALE
Subtotal (1 unit)*
£2,079.35
(exc. VAT)
£2,495.22
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 2 unit(s) shipping from 29 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £2,079.35 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£247.36
(exc. VAT)
£296.83
(inc. VAT)
- RS Stock No.:
- 684-3847
- Mfr. Part No.:
- CPV 5-4
- Brand:
- YALE
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | YALE | |
Lifting Mechanism | Electrical | |
Lifting Height | 3m | |
Lifting Load | 500 kg | |
Motor Lifting Speed | 4m/min | |
Motor Operating Voltage | 400V | |
Select all | ||
---|---|---|
Brand YALE | ||
Lifting Mechanism Electrical | ||
Lifting Height 3m | ||
Lifting Load 500 kg | ||
Motor Lifting Speed 4m/min | ||
Motor Operating Voltage 400V | ||
- COO (Country of Origin):
- DE

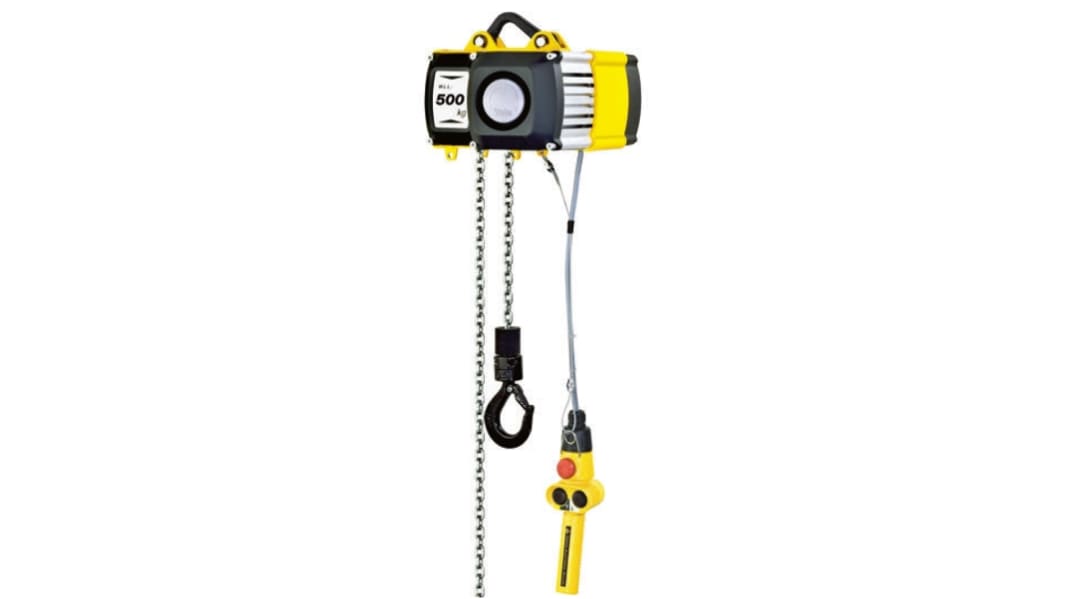

Yale Hoists Electric Chain Hoist
The Yale Hoists electric chain hoist can lift loads up to 500kg. Its robust construction makes it a versatile tool for professional applications. The integrated limit switch for the highest and lowest hook position considerably extends the working life span of the slip clutch, 0.37kw motor, and gearbox. The electromagnetic spring pressure brake holds the load safely despite power failure and the externally adjustable slip clutch guarantees a permanent connection between the load and the brake.
Warning:
Not for passenger elevation.
Warning:
Not for passenger elevation.
Features and Benefits
Lift height is 3m
Number of chan fall is 2
42V low voltage control pendant with emergency stop button
Grade 80 zinc plated chain
Hook suspension
Integral upper and lower electric limits
Lifetime lubricated gearbox
Motor lifting speed is 4m/minute
Motor operating voltage is 400V
Thermal overload protection as standard for the whole range. Optimised housing for improved cooling
Duty cycle is 50% ED for single speed
Suspension lug for compact dimensions and easy integration in closed-eye constructions
Number of chan fall is 2
42V low voltage control pendant with emergency stop button
Grade 80 zinc plated chain
Hook suspension
Integral upper and lower electric limits
Lifetime lubricated gearbox
Motor lifting speed is 4m/minute
Motor operating voltage is 400V
Thermal overload protection as standard for the whole range. Optimised housing for improved cooling
Duty cycle is 50% ED for single speed
Suspension lug for compact dimensions and easy integration in closed-eye constructions
Applications
Industries
Services
Trade
Services
Trade
Certifications
EN ISO9001:2008
IP55 rated (motor)
IP65 rated (control pendant)
2006/42/EC
98/37/EC
2006/95/EC
EN6024-1:2006
IP55 rated (motor)
IP65 rated (control pendant)
2006/42/EC
98/37/EC
2006/95/EC
EN6024-1:2006
