Product Details

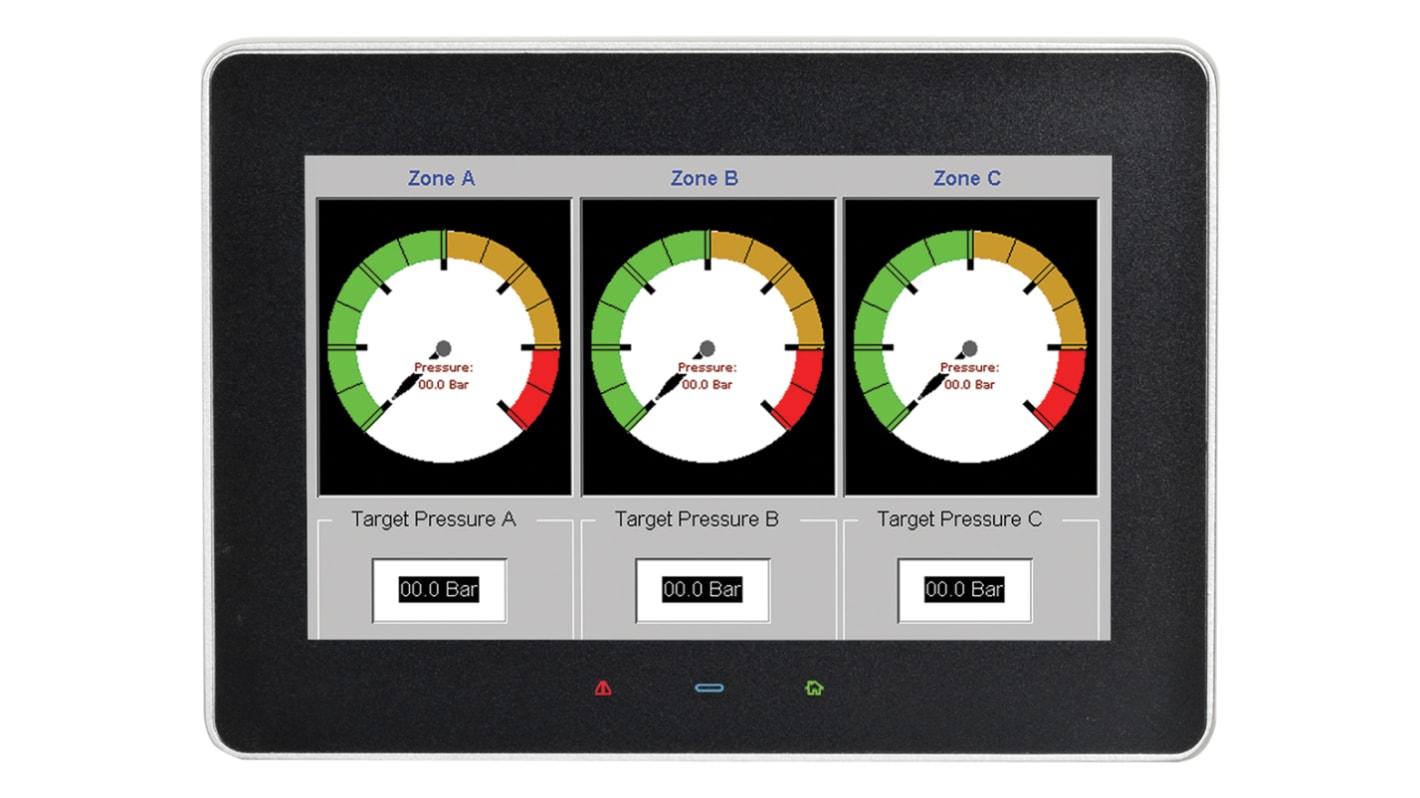

Red Lion Touch-Screen HMI Displays
The Red Lion graphite advanced operator panel has 7inch TFT HMI LCD touchscreen display to combine a wide range of versatile plug-in modules with protocol conversion, data logging and web-based monitoring and control. It has all cast-aluminium construction and UL Class 1, Division 2, ABS, ATEX and IECEx zone 2/22 approvals, Graphite HMIs support wide operating temperatures and high shock/vibration tolerances that enable you to connect, monitor and control processes regardless of environment.
Features and Benefits
WXGA colour standard touchscreen (800x480 pixels)
Indoor Model
Up to 20 simultaneous protocol conversions
One 10/100 base-TX Ethernet port
Three fully isolated serial communication ports (two RS-232 and one RS-422/485)
One USB type B port
Two High-retention USB host ports
5 Module slots to easily add I/O capability with plug-in modules
194mm x 140mm dimensions
OPC UA client driver
OPC UA historical access
Crimson 3.0 software for easy drag-and-drop programming
Send an email and/or SMS notifications on alarm conditions
USB synchronization of database and log files
Real-time data logging provides historic visibility to support process improvements
Provide built-in data logging (SD card), web server and FTP for remote access
Indoor Model
Up to 20 simultaneous protocol conversions
One 10/100 base-TX Ethernet port
Three fully isolated serial communication ports (two RS-232 and one RS-422/485)
One USB type B port
Two High-retention USB host ports
5 Module slots to easily add I/O capability with plug-in modules
194mm x 140mm dimensions
OPC UA client driver
OPC UA historical access
Crimson 3.0 software for easy drag-and-drop programming
Send an email and/or SMS notifications on alarm conditions
USB synchronization of database and log files
Real-time data logging provides historic visibility to support process improvements
Provide built-in data logging (SD card), web server and FTP for remote access
Applications
Built-in MQTT connectors accelerate IoT projects with point-and-click simplicity
Store and Forward Buffering for cloud connectors
Store and Forward Buffering for cloud connectors
Certifications
IP65 rated
Specifications
Attribute | Value |
---|---|
Manufacturer Series | GRAPHITE |
Product Range | Programmable |
Display Type | TFT |
Manufacturer Part No. | G07C0000 |
Display Resolution | 800 x 480pixels |
Number of Ports | 7 |
Port Type | 2 x USB Host, COM (RS232), COM (RS485), Ethernet (NIC), PGM (RS232), USB (Type B) |
Supply Voltage | 24 V dc |
IP Rating | IP66 |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +60°C |
Display Colour | Colour |
Width | 139.9mm |
Display Size | 7 in |
Length | 195.5mm |
Depth | 50.8mm |
Dimensions | 195.5 x 139.9 x 50.8 mm |
