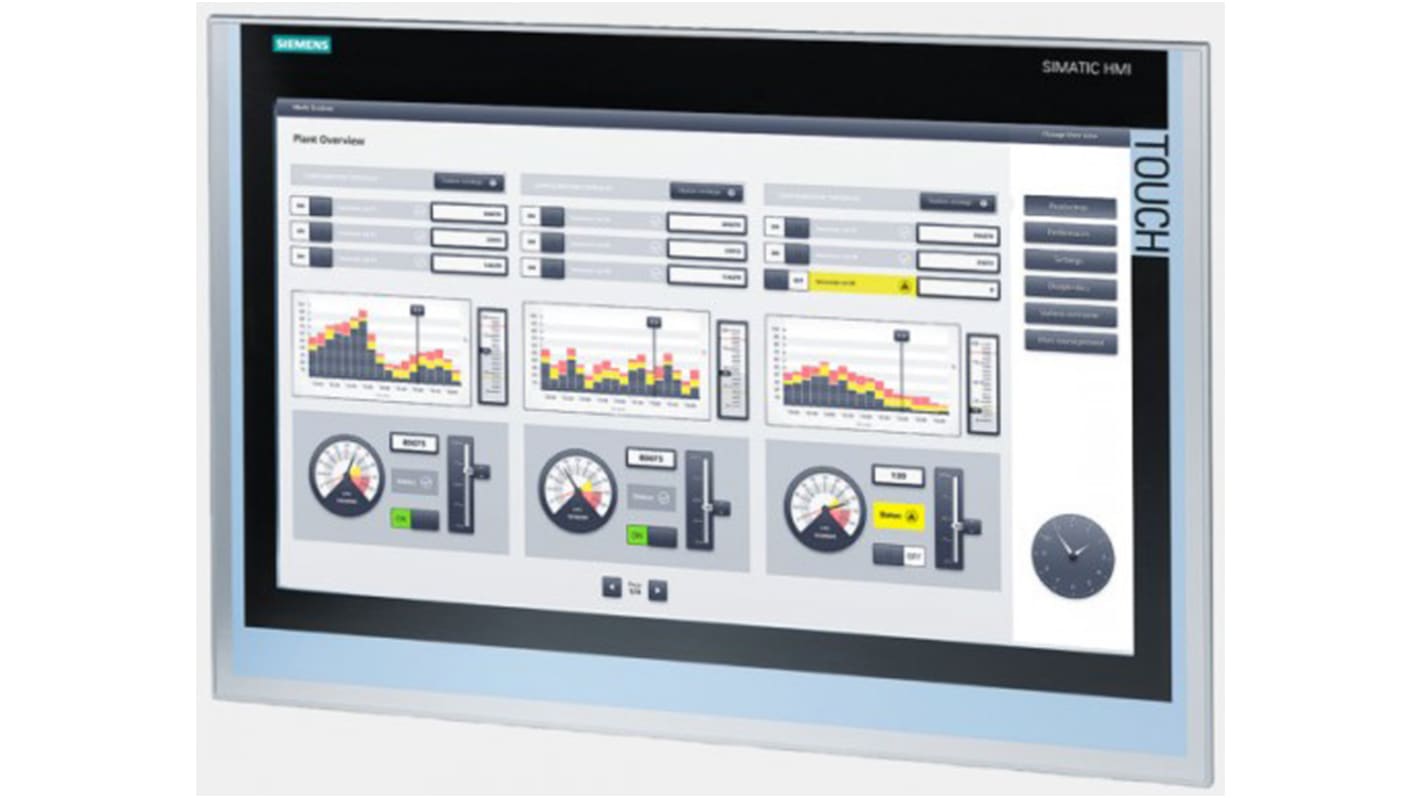

Siemens TP 2200 Series Touch Screen HMI - 21.5 in, TFT Display, 1920 x 1080pixels
- RS Stock No.:
- 864-3989
- Mfr. Part No.:
- 6AV21240XC020AX0
- Brand:
- Siemens
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£4,126.00
(exc. VAT)
£4,951.20
(inc. VAT)
- RS Stock No.:
- 864-3989
- Mfr. Part No.:
- 6AV21240XC020AX0
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Manufacturer Series | TP 2200 | |
| Display Type | TFT | |
| Manufacturer Part No. | 6AV21240XC020AX0 | |
| Display Resolution | 1920 x 1080pixels | |
| Number of Ports | 3 | |
| Port Type | Ethernet, MPI, Profibus DP, USB | |
| Processor Type | X86 | |
| Onboard Memory | 24 MB | |
| Backlighting | Yes | |
| Supply Voltage | 24 V dc | |
| IP Rating | IP20, IP65 | |
| Minimum Operating Temperature | 0°C | |
| Dimensions | 560 x 380 x 75 mm | |
| Depth | 75mm | |
| Length | 560mm | |
| Display Size | 21.5 in | |
| Display Colour | Colour | |
| Maximum Operating Temperature | +45°C | |
| Width | 380mm | |
Select all | ||
|---|---|---|
Brand Siemens | ||
Manufacturer Series TP 2200 | ||
Display Type TFT | ||
Manufacturer Part No. 6AV21240XC020AX0 | ||
Display Resolution 1920 x 1080pixels | ||
Number of Ports 3 | ||
Port Type Ethernet, MPI, Profibus DP, USB | ||
Processor Type X86 | ||
Onboard Memory 24 MB | ||
Backlighting Yes | ||
Supply Voltage 24 V dc | ||
IP Rating IP20, IP65 | ||
Minimum Operating Temperature 0°C | ||
Dimensions 560 x 380 x 75 mm | ||
Depth 75mm | ||
Length 560mm | ||
Display Size 21.5 in | ||
Display Colour Colour | ||
Maximum Operating Temperature +45°C | ||
Width 380mm | ||
- COO (Country of Origin):
- DE
SIMATIC HMI TP Comfort Series
The SIMATIC TP comfort series from Siemens comes in a variety of wide-screen displays ranging from 7" to 22" with touch screen operation. All SIMATIC comfort panels are IP65 rated for harsh conditions and are flexible for any outdoor application. These innovative HMI's are capable of coordinating and centrally shutting down their displays via PROFIenergy during break times, in order to reduce energy consumption, in comparison to previous SIMATIC panels.
Wide-screen high-resolution displays from 7" to 22"
Graphical user interface for intuitive machine operation and monitoring
Device functionality offers archives, VB scripts and various viewers for display of plant documentation and internet websites
Vertical installation for optimum plant space utilization
Maximum data security
Integrated system diagnostics
Can be configured using WINCC Comfort
Graphical user interface for intuitive machine operation and monitoring
Device functionality offers archives, VB scripts and various viewers for display of plant documentation and internet websites
Vertical installation for optimum plant space utilization
Maximum data security
Integrated system diagnostics
Can be configured using WINCC Comfort
Siemens SIMATIC TP Series Panels
