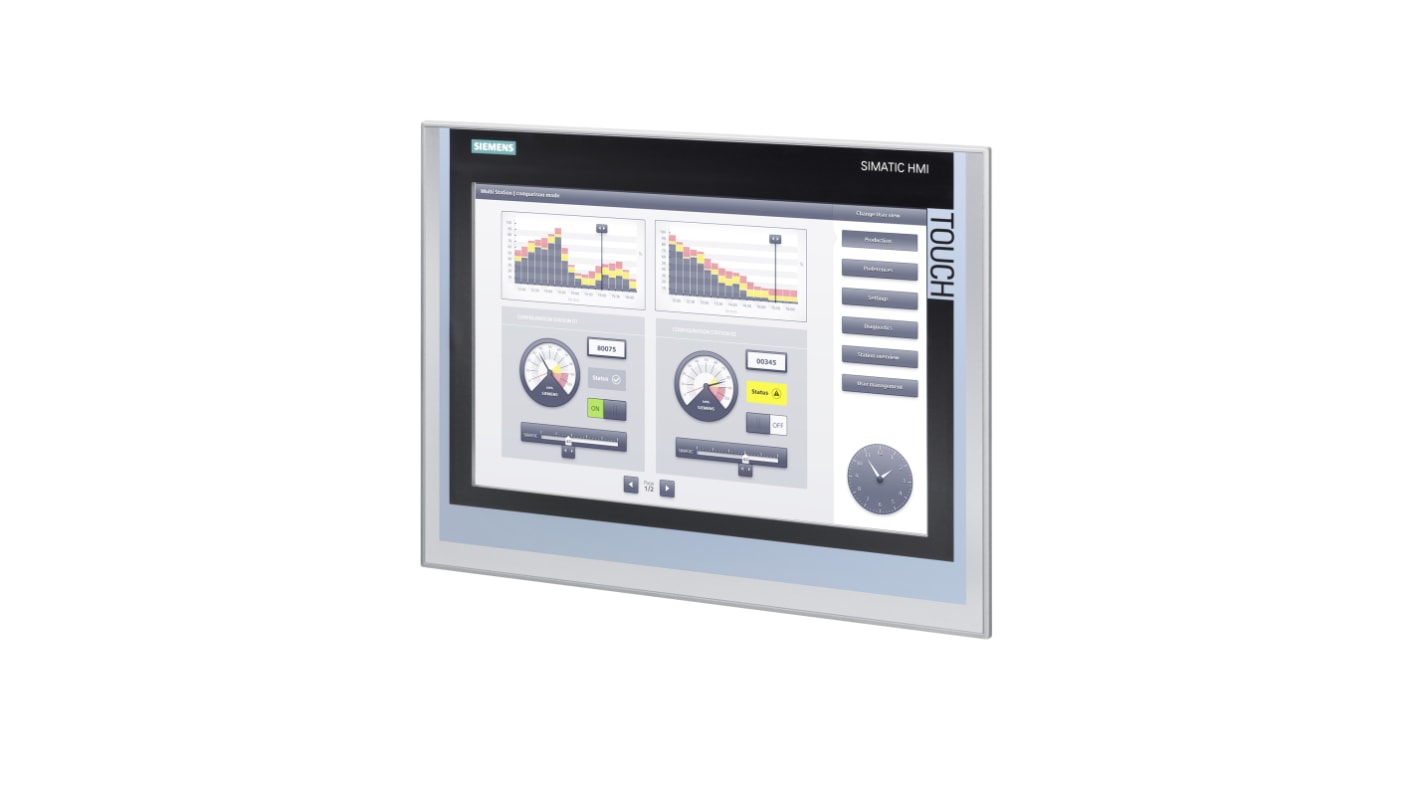

Siemens SIMATIC Series TP1500 Comfort HMI Panel - 15.4 in, TFT Display, 1280 x 800
- RS Stock No.:
- 165-6377
- Mfr. Part No.:
- 6AV2124-0QC02-0AX1
- Brand:
- Siemens
Discontinued
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£3,731.95
(exc. VAT)
£4,478.34
(inc. VAT)
- RS Stock No.:
- 165-6377
- Mfr. Part No.:
- 6AV2124-0QC02-0AX1
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Manufacturer Series | SIMATIC | |
| Product Range | TP1500 Comfort | |
| Display Type | TFT | |
| Manufacturer Part No. | 6AV2124-0QC02-0AX1 | |
| Display Resolution | 1280 x 800 | |
| Number of Ports | 7 | |
| Port Type | Ethernet, RS422, RS485, SD Card Slot, USB 2.0 | |
| Processor Type | X86 | |
| Onboard Memory | 24 MB | |
| Backlighting | Yes | |
| Display Size | 15.4 in | |
| IP Rating | IP20, IP65 | |
| Width | 310mm | |
| Display Colour | Colour | |
| Interface | PROFINET, MPI, PROFIBUS DP | |
| Dimensions | 415 x 310 x 75 mm | |
| Maximum Operating Temperature | +50°C | |
| Depth | 75mm | |
| Length | 415mm | |
| Minimum Operating Temperature | 0°C | |
| Supply Voltage | 24 V dc | |
Select all | ||
|---|---|---|
Brand Siemens | ||
Manufacturer Series SIMATIC | ||
Product Range TP1500 Comfort | ||
Display Type TFT | ||
Manufacturer Part No. 6AV2124-0QC02-0AX1 | ||
Display Resolution 1280 x 800 | ||
Number of Ports 7 | ||
Port Type Ethernet, RS422, RS485, SD Card Slot, USB 2.0 | ||
Processor Type X86 | ||
Onboard Memory 24 MB | ||
Backlighting Yes | ||
Display Size 15.4 in | ||
IP Rating IP20, IP65 | ||
Width 310mm | ||
Display Colour Colour | ||
Interface PROFINET, MPI, PROFIBUS DP | ||
Dimensions 415 x 310 x 75 mm | ||
Maximum Operating Temperature +50°C | ||
Depth 75mm | ||
Length 415mm | ||
Minimum Operating Temperature 0°C | ||
Supply Voltage 24 V dc | ||
- COO (Country of Origin):
- DE
Siemens Touchscreen HMI, X86 Processor, MPI/PROFIBUS DP Interface - 6AV2124-0QC02-0AX1
Make system adjustments in seconds with this touchscreen HMI from Siemens. It's a 15-inch display that shows key control and diagnostics information in high definition. Thanks to its 16-million-colour capacity, this unit's ideal for graphs and infographics. Up to 50 users can have their own login for convenient performance tracking. Rest assured, this device includes password protection to prevent unauthorised use. An Ethernet connection lets you boost your research and processing capabilities with online tools.
Features & Benefits
• Screen backlight provides crisp details even in low-light conditions
• Performs in extreme temperatures between 0°C and +50°C so it's suitable for demanding applications
• Hardware clock keeps track of time even if power is cut
• Broad dimensions of 415 (L) x 310 (W) x 75mm (D) mean it's easy to read data
• Performs in extreme temperatures between 0°C and +50°C so it's suitable for demanding applications
• Hardware clock keeps track of time even if power is cut
• Broad dimensions of 415 (L) x 310 (W) x 75mm (D) mean it's easy to read data
How do I use this screen?
This device is touch-operated. For precise control and to avoid fingerprints, use the V2A touch pen system (253-4147). You can get replacement caps (253-4149) to keep your pen in tip-top condition.
Can I connect accessories to this screen?
Yes, you can connect a USB keyboard, computer mouse or printer to this display to improve your setup's accessibility and capabilities.
