Beijer Electronics E10 Series E1043 Touch Screen HMI - 3.5 in, TFT LCD Display, 320 x 240
- RS Stock No.:
- 123-3861
- Mfr. Part No.:
- 603221119
- Brand:
- Beijer Electronics
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£972.84
(exc. VAT)
£1,167.41
(inc. VAT)
- RS Stock No.:
- 123-3861
- Mfr. Part No.:
- 603221119
- Brand:
- Beijer Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Beijer Electronics | |
| Manufacturer Series | E10 | |
| Product Range | E1043 | |
| Display Type | TFT LCD | |
| Manufacturer Part No. | E1043 | |
| Display Resolution | 320 x 240 | |
| Number of Ports | 4 | |
| Port Type | Ethernet, RS232, RS422, RS485, USB | |
| Onboard Memory | 12 MB | |
| Display Size | 3.5 in | |
| Backlighting | Yes | |
| IP Rating | IP66 | |
| Length | 156mm | |
| Depth | 63mm | |
| Supply Voltage | 24 V dc | |
| Dimensions | 156 x 119 x 63 mm | |
| Display Colour | Monochrome | |
| Width | 119mm | |
| Maximum Operating Temperature | +50°C | |
| Minimum Operating Temperature | 0°C | |
Select all | ||
|---|---|---|
Brand Beijer Electronics | ||
Manufacturer Series E10 | ||
Product Range E1043 | ||
Display Type TFT LCD | ||
Manufacturer Part No. E1043 | ||
Display Resolution 320 x 240 | ||
Number of Ports 4 | ||
Port Type Ethernet, RS232, RS422, RS485, USB | ||
Onboard Memory 12 MB | ||
Display Size 3.5 in | ||
Backlighting Yes | ||
IP Rating IP66 | ||
Length 156mm | ||
Depth 63mm | ||
Supply Voltage 24 V dc | ||
Dimensions 156 x 119 x 63 mm | ||
Display Colour Monochrome | ||
Width 119mm | ||
Maximum Operating Temperature +50°C | ||
Minimum Operating Temperature 0°C | ||
- COO (Country of Origin):
- TW
Beijer Electronics Touch-Screen HMI Displays

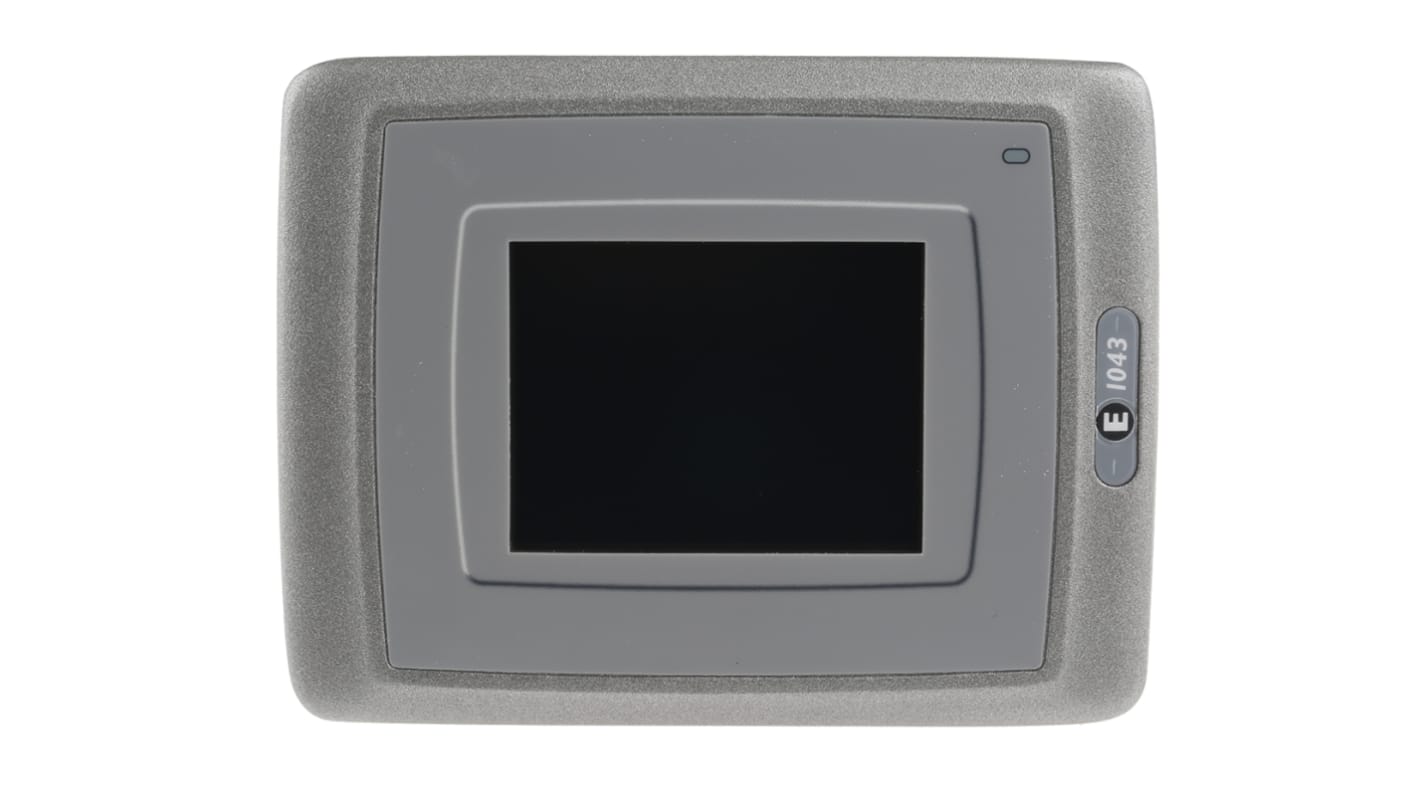

The Beijer electronics E1043 has a 3.5in TFT touch screen LCD. It comes in impressive resolutions of 320x240 pixels. Communication ports for RS232 and RS422/485 are built-in and can connect via a USB host port to connect a mouse, keyboard, printer, USB memory sticks, as well as, an integrated Ethernet interface. You can enter the recipes, text, and editing changes via the keys. Password levels protect the system against unauthorised access, while sixteen separate alarm groups keep you informed on important developments.
Features and Benefits
Display type is TFT,16 greyscales
It uses powder-coated aluminium (grey) as frame and casting material
LED with dimming display backlight
Processor 312MHz RISC CPU
32MB flash memory
Multi-language
Upgradeable firmware
Windows programming tools
Free software drivers
Backlit LCD graphics display
Quick and easy intuitive configuration
Remote access and control
Easy installation cables
Expansion modules
Extended functions keyboard
Operating temperature ranges between 0°C and 50°C
It uses powder-coated aluminium (grey) as frame and casting material
LED with dimming display backlight
Processor 312MHz RISC CPU
32MB flash memory
Multi-language
Upgradeable firmware
Windows programming tools
Free software drivers
Backlit LCD graphics display
Quick and easy intuitive configuration
Remote access and control
Easy installation cables
Expansion modules
Extended functions keyboard
Operating temperature ranges between 0°C and 50°C
Applications
Automotive industry
Oil and gas
Telecom
Transportation
Packaging
Asset management
Pharmaceuticals
Water and electrical utilities
Building automation
Food and beverage
Semiconductor production
Marine and offshore
Oil and gas
Telecom
Transportation
Packaging
Asset management
Pharmaceuticals
Water and electrical utilities
Building automation
Food and beverage
Semiconductor production
Marine and offshore
Certifications
IP66/20 rated
UL 1604 listed
Class I
Div 2/UL 508/UL 50 4x indoor use only
UL 1604 listed
Class I
Div 2/UL 508/UL 50 4x indoor use only
