Preventa XCS Safety Hinge Switch, 2NC, PG11

Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

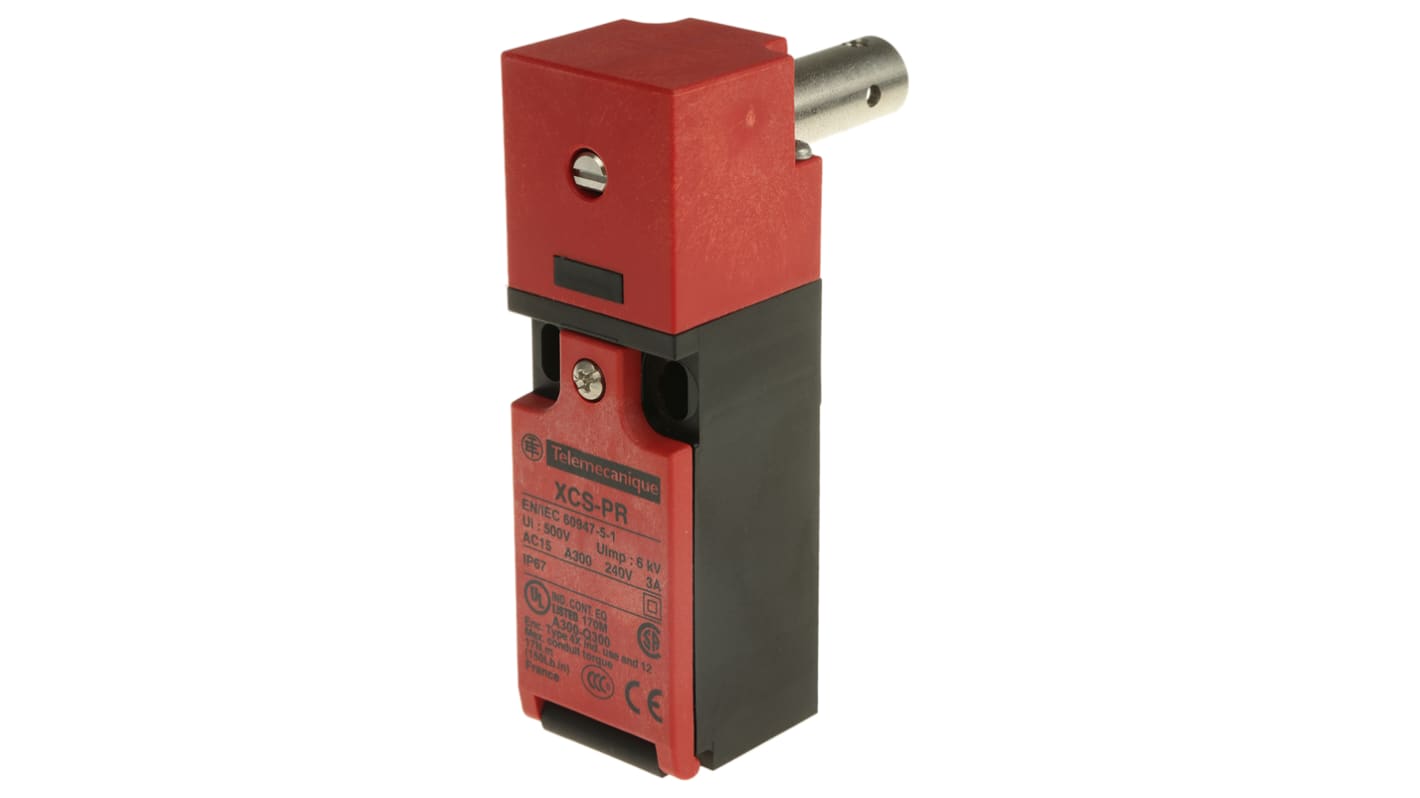

XCSPR Safety Hinge Switch

Introducing the XCS PL series.

Ideal for light industrial machines fitted with hinged or rotary protective covers with small opening radius e.g. double gate guards
2 outputs
5° displaced tripping angle
4 position turret head
Ingress protection; IP67
Slow break safety contacts with positive opening operations (positive actuation) N/C contacts open when spindle displaced more than 5°
1 x cable entry tapped for 11mm cable gland, ISO M16 x 1.5 or NPT

//media.rs-online.com/t_line/L360438-01.gif

Hinge Switch

Specifications
Attribute Value
Range Preventa
Series XCS
Lock Style Hinge
Normal State Configuration 2NC
Maximum Current 6 A
Maximum AC Voltage 240V
Maximum DC Voltage 250V
Number of Cable Entries 1
Size of Cable Entries PG11
Conduit Entry PG11
Shaft Length 30mm
Trigger Angle Range
Minimum Operating Temperature -25°C
Maximum Operating Temperature +70°C
1 In stock for FREE next working day delivery
Price Each
£ 41.00
(exc. VAT)
£ 49.20
(inc. VAT)
Units
Per unit
1 +
£41.00
