Enerpac, Portable Portable Hydraulic Cylinder-Lifting Type, SCR154H Single Acting 15 t 101 mm
- RS Stock No.:
- 122-2300
- Mfr. Part No.:
- SCR154H
- Brand:
- Enerpac
Subtotal (1 unit)*
£1,905.02
(exc. VAT)
£2,286.02
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 1 unit(s) shipping from 20 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,905.02 |
*price indicative
- RS Stock No.:
- 122-2300
- Mfr. Part No.:
- SCR154H
- Brand:
- Enerpac
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Enerpac | |
| Product Type | Portable Hydraulic Cylinder-Lifting Type | |
| Stroke Length | 101mm | |
| Closed Height | 200mm | |
| Extended Height | 301mm | |
| Cylinder Effective Area | 14.4cm² | |
| Oil Capacity | 58cm³ | |
| Maximum Operating Pressure | 700 bar | |
| Action Type | Single Acting | |
| Cylinder Capacity | 15t | |
| Outside Diameter | 70mm | |
| Weight | 2.4kg | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Enerpac | ||
Product Type Portable Hydraulic Cylinder-Lifting Type | ||
Stroke Length 101mm | ||
Closed Height 200mm | ||
Extended Height 301mm | ||
Cylinder Effective Area 14.4cm² | ||
Oil Capacity 58cm³ | ||
Maximum Operating Pressure 700 bar | ||
Action Type Single Acting | ||
Cylinder Capacity 15t | ||
Outside Diameter 70mm | ||
Weight 2.4kg | ||
Standards/Approvals No | ||
RoHS Status: Exempt
Hydraulic Single-Acting Cylinder-Pump Set
Single acting cylinder pump-sets for lifting and push applications. The kit comes with a two-speed hand-pump which can reduce the required number of handle strokes by up to 78. The two-speed pump also requires less effort than a single speed reducing operator fatigue. The cylinders feature a plunger wiper and heavy duty springs for increased service life.
Features and Benefits
Components matched for efficiency
Cylinders have baked enamel finish for corrosion resistance
CR-400 couplings all on cylinders
High strength steel alloy construction
Pumps fitted with a safety valve to prevent overload

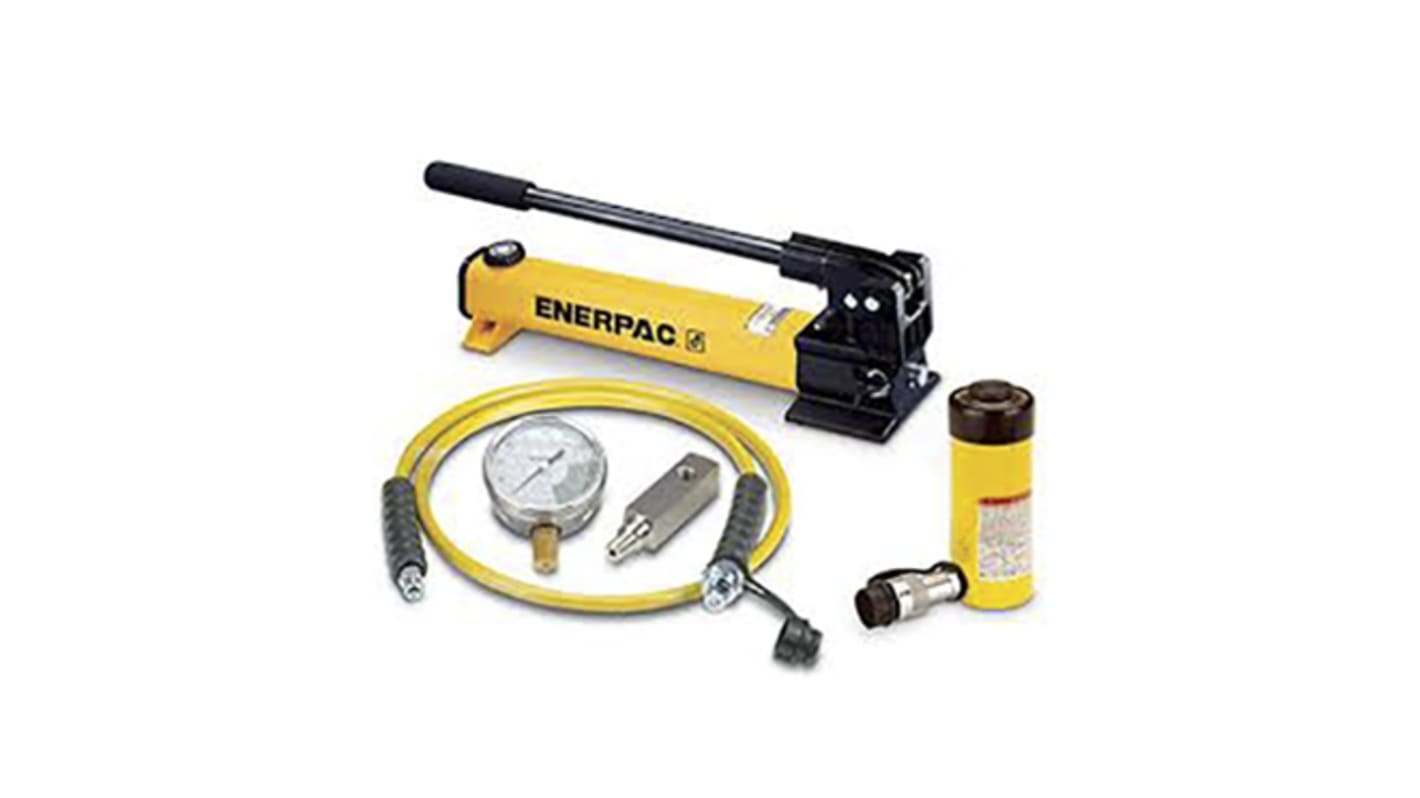

Kit Contents
Single acting hydraulic cylinder
1.8m safety hose
Pressure gauge with gauge adapter
Two speed hand operated pump
Cylinder & Pump Sets
Warning
High pressure hydraulic equipment can work at extremely high pressure and careful attention should be paid to working pressure when choosing accessories.
