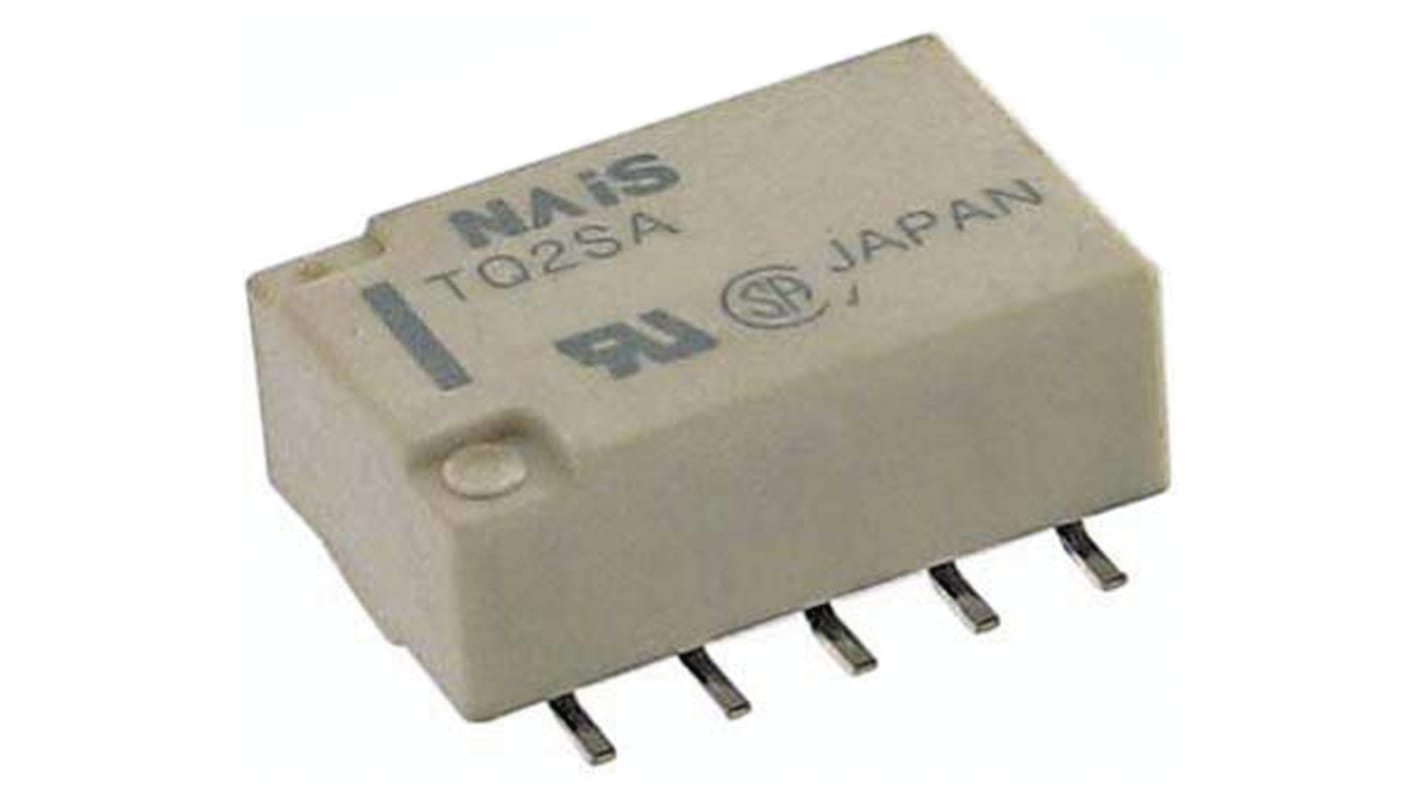

Panasonic Surface Mount High Frequency Relay, 5V dc Coil, DPDT
- RS Stock No.:
- 815-4874
- Distrelec Article No.:
- 137-10-995
- Mfr. Part No.:
- TQ2SA-5V
- Brand:
- Panasonic
Bulk discount available
Subtotal (1 unit)*
£1.84
(exc. VAT)
£2.21
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- 627 left, ready to ship
- Plus 5 left, ready to ship from another location
Units | Per unit |
---|---|
1 - 49 | £1.84 |
50 - 99 | £1.51 |
100 - 249 | £1.48 |
250 - 499 | £1.44 |
500 + | £1.40 |
*price indicative
- RS Stock No.:
- 815-4874
- Distrelec Article No.:
- 137-10-995
- Mfr. Part No.:
- TQ2SA-5V
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Panasonic | |
Coil Resistance | 178 Ω | |
Contact Resistance | 75 mΩ | |
Contact Configuration | DPDT | |
Coil Voltage | 5V dc | |
Mounting Type | Surface Mount | |
Contact Voltage | 125 V ac, 220 V dc | |
Coil Power | 140mW | |
Contact Material | Silver Alloy | |
Operating Temperature Range | -40 → +85°C | |
Switching Voltage | 125 V ac, 220 V dc | |
Height | 5.6mm | |
Length | 14mm | |
Minimum Operating Temperature | -40°C | |
Life | 100000 Operations | |
Maximum Operating Temperature | +85°C | |
Depth | 9mm | |
Dimensions | 14 x 9 x 5.6mm | |
Operating Time Including Bounce | 4ms | |
Select all | ||
---|---|---|
Brand Panasonic | ||
Coil Resistance 178 Ω | ||
Contact Resistance 75 mΩ | ||
Contact Configuration DPDT | ||
Coil Voltage 5V dc | ||
Mounting Type Surface Mount | ||
Contact Voltage 125 V ac, 220 V dc | ||
Coil Power 140mW | ||
Contact Material Silver Alloy | ||
Operating Temperature Range -40 → +85°C | ||
Switching Voltage 125 V ac, 220 V dc | ||
Height 5.6mm | ||
Length 14mm | ||
Minimum Operating Temperature -40°C | ||
Life 100000 Operations | ||
Maximum Operating Temperature +85°C | ||
Depth 9mm | ||
Dimensions 14 x 9 x 5.6mm | ||
Operating Time Including Bounce 4ms | ||
- COO (Country of Origin):
- JP
TQ2 Series
These surface mount relays have a low profile of 6mm and offer high sensitivity.
Flat compact body with low profile surface-mount terminals
High frequency characteristics
Suitable for SMD automatic insertion
Low thermal EMF (approx 2μV)
Ideal for communication applications, measurement and QA equipment etc
High frequency characteristics
Suitable for SMD automatic insertion
Low thermal EMF (approx 2μV)
Ideal for communication applications, measurement and QA equipment etc
Note
For through hole types see stk no. 113-8825 typically
Approvals
UL, CSA
