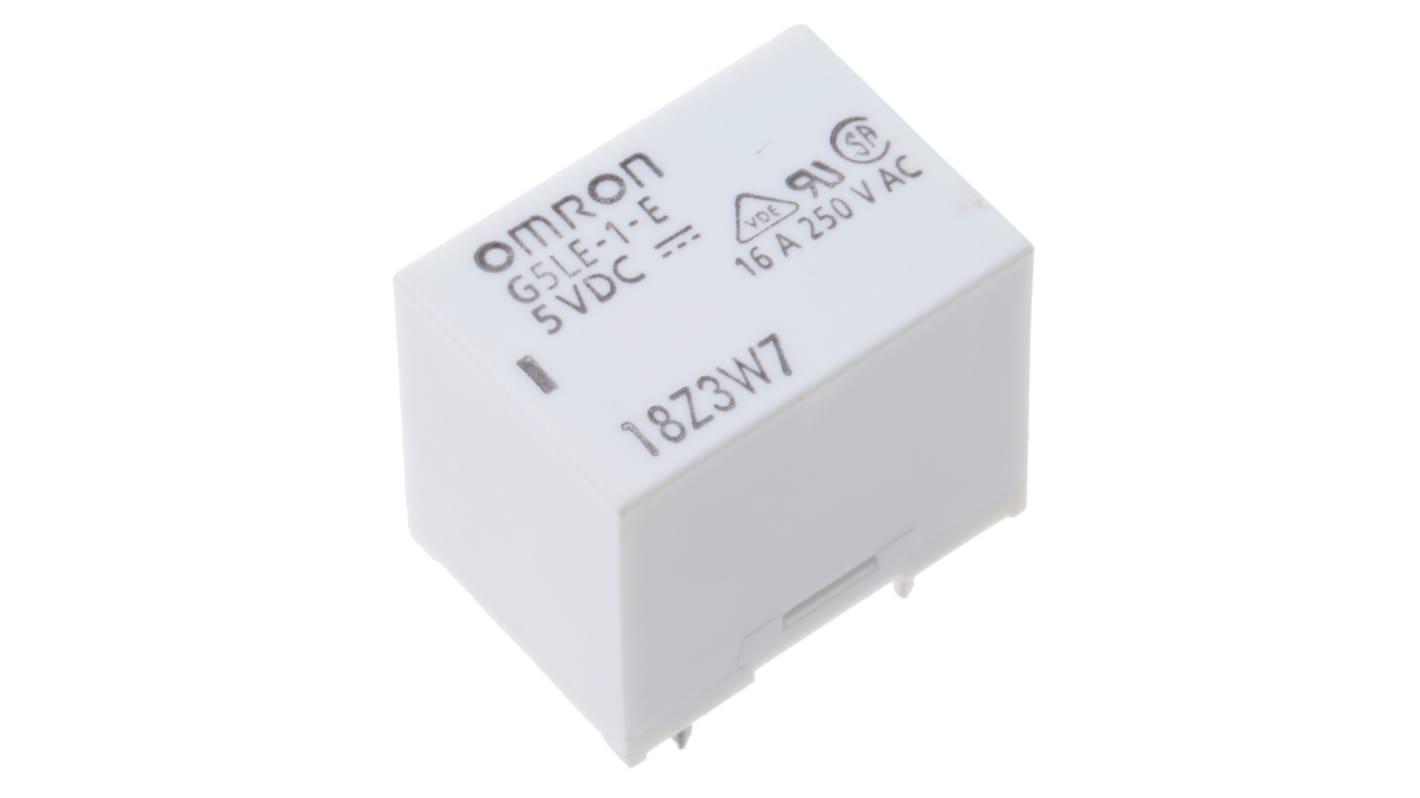

Omron PCB Mount High Frequency Relay, 5V dc Coil, SPDT
- RS Stock No.:
- 492-890P
- Mfr. Part No.:
- G5LE-1-E DC5
- Brand:
- Omron
Subtotal 10 units (supplied in a tray)*
£24.60
(exc. VAT)
£29.50
(inc. VAT)
FREE delivery for orders over £50.00
- 206 unit(s) ready to ship
Units | Per unit |
|---|---|
| 10 - 49 | £2.46 |
| 50 - 99 | £2.19 |
| 100 - 249 | £2.11 |
| 250 + | £1.90 |
*price indicative
- RS Stock No.:
- 492-890P
- Mfr. Part No.:
- G5LE-1-E DC5
- Brand:
- Omron
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Relay Type | HF Relay | |
| Coil Resistance | 63Ω | |
| Contact Resistance | 100 mΩ | |
| Contact Configuration | SPDT | |
| Coil Voltage | 5V dc | |
| Mounting Type | PCB Mount | |
| Latching | Yes | |
| Contact Voltage | 250V ac | |
| Coil Power | 400mW | |
| Contact Material | Silver Alloy | |
| Life | 1000000 (Electrical) cycles, 10000000 (Mechanical) cycles | |
| Length | 22.5mm | |
| Dimensions | 22.5 x 16.5 x 19mm | |
| Operating Temperature Range | -25 → +85°C | |
| Switching Voltage | 250V ac | |
| Terminal Type | Through Hole | |
| Special Features | Flux Resistant | |
| Standards Met | CSA, UL | |
| Relay Switching Classification | General Purpose Relay | |
| Number of Poles | 1 | |
| Minimum Operating Temperature | -25°C | |
| Contact Current Rating | 16A | |
| Maximum Operating Temperature | +85°C | |
| Height | 19mm | |
| Electrical Life | 100000 Cycles | |
| Operating Time Including Bounce | 10ms | |
| Depth | 16.5mm | |
Select all | ||
|---|---|---|
Brand Omron | ||
Relay Type HF Relay | ||
Coil Resistance 63Ω | ||
Contact Resistance 100 mΩ | ||
Contact Configuration SPDT | ||
Coil Voltage 5V dc | ||
Mounting Type PCB Mount | ||
Latching Yes | ||
Contact Voltage 250V ac | ||
Coil Power 400mW | ||
Contact Material Silver Alloy | ||
Life 1000000 (Electrical) cycles, 10000000 (Mechanical) cycles | ||
Length 22.5mm | ||
Dimensions 22.5 x 16.5 x 19mm | ||
Operating Temperature Range -25 → +85°C | ||
Switching Voltage 250V ac | ||
Terminal Type Through Hole | ||
Special Features Flux Resistant | ||
Standards Met CSA, UL | ||
Relay Switching Classification General Purpose Relay | ||
Number of Poles 1 | ||
Minimum Operating Temperature -25°C | ||
Contact Current Rating 16A | ||
Maximum Operating Temperature +85°C | ||
Height 19mm | ||
Electrical Life 100000 Cycles | ||
Operating Time Including Bounce 10ms | ||
Depth 16.5mm | ||
- COO (Country of Origin):
- MY
G5LE Series
Ideal for control circuit applications
High current switching capacity
Withstands impulse of up to 4500V
Dimensions; L22.5xW16.5xH19 mm
Approvals
