Wieland Male insert, 10 Way, 16A, Male, BAS STS, Panel Mount, 500 V
- RS Stock No.:
- 204-2309
- Mfr. Part No.:
- 70.310.1040.0
- Brand:
- Wieland
Save 8% when you buy 50 units
Subtotal (1 unit)*
£15.13
(exc. VAT)
£18.16
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 25 unit(s) ready to ship
- Plus 20 unit(s) ready to ship from another location
- Plus 30 unit(s) shipping from 09 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 19 | £15.13 |
20 - 49 | £14.86 |
50 + | £13.89 |
*price indicative
- RS Stock No.:
- 204-2309
- Mfr. Part No.:
- 70.310.1040.0
- Brand:
- Wieland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Wieland | |
Number of Contacts | 10 | |
Current Rating | 16A | |
Gender | Male | |
Series | BAS STS | |
Type | Male insert | |
Mounting Type | Panel Mount | |
Voltage Rating | 500 V | |
Manufacturer Size Code | 10 | |
Body Orientation | Straight | |
Series Number | Revos BASIC | |
Select all | ||
---|---|---|
Brand Wieland | ||
Number of Contacts 10 | ||
Current Rating 16A | ||
Gender Male | ||
Series BAS STS | ||
Type Male insert | ||
Mounting Type Panel Mount | ||
Voltage Rating 500 V | ||
Manufacturer Size Code 10 | ||
Body Orientation Straight | ||
Series Number Revos BASIC | ||
- COO (Country of Origin):
- DE

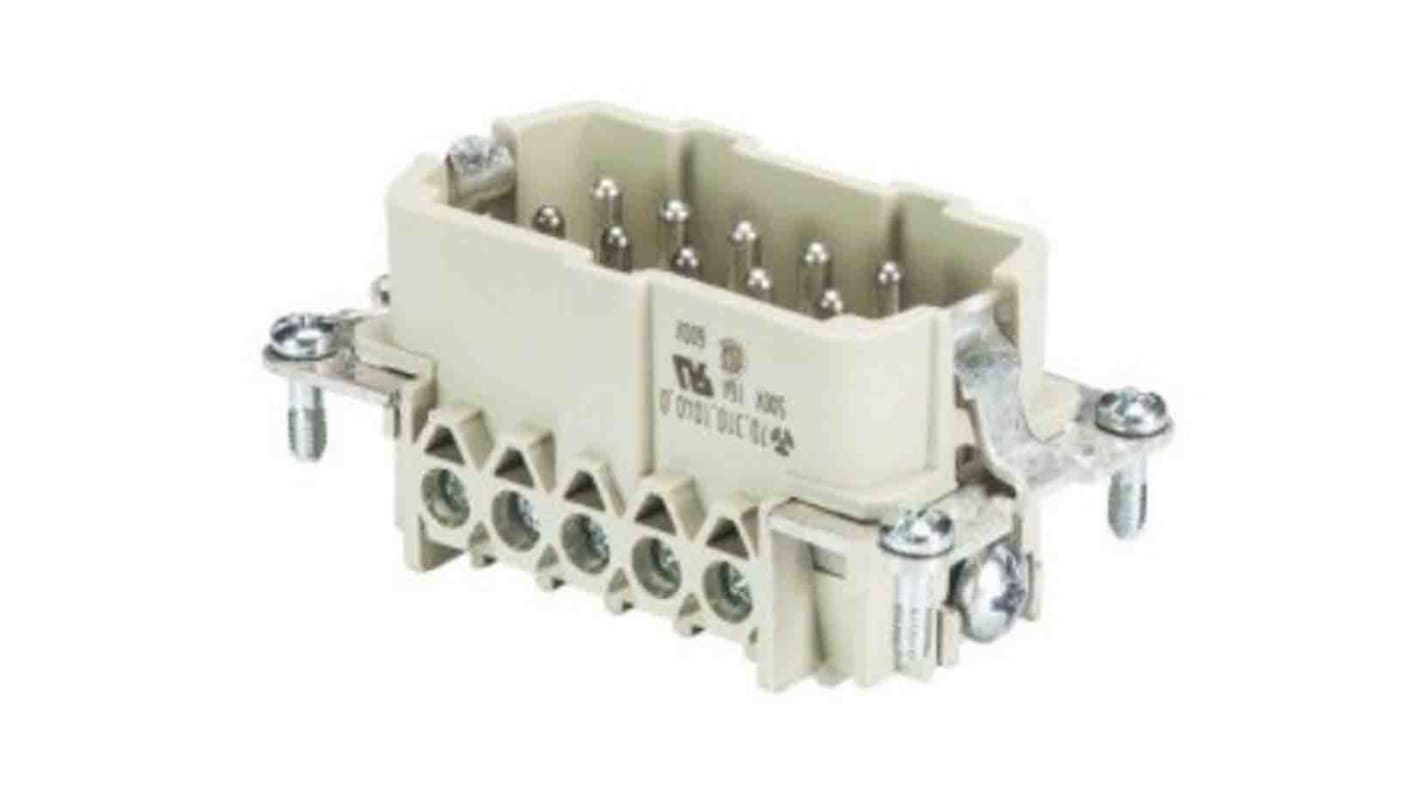

The Wieland male insert plug has 10 poles plus ground, has current rating up to 16 A. It is available in grey colour.
Operating temperature range is from -40 °C to 120 °C
V0 In flammability class according to UL94
It has wire protection with protective contact
It is SA, RU and VDE approved
V0 In flammability class according to UL94
It has wire protection with protective contact
It is SA, RU and VDE approved
