HARTING Cable Assembly, 6 Way, 22A, Male to Female, Han HSB, 300 V dc, 600 V ac
- RS Stock No.:
- 122-6750
- Mfr. Part No.:
- 20871443001100
- Brand:
- HARTING
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 122-6750
- Mfr. Part No.:
- 20871443001100
- Brand:
- HARTING
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | HARTING | |
Number of Contacts | 6 | |
Current Rating | 22A | |
Gender | Male to Female | |
Series | Han HSB | |
Type | Cable Assembly | |
Voltage Rating | 300 V dc, 600 V ac | |
Number of Rows | 2 | |
Body Orientation | Straight | |
Priced to Clear | Yes | |
Select all | ||
---|---|---|
Brand HARTING | ||
Number of Contacts 6 | ||
Current Rating 22A | ||
Gender Male to Female | ||
Series Han HSB | ||
Type Cable Assembly | ||
Voltage Rating 300 V dc, 600 V ac | ||
Number of Rows 2 | ||
Body Orientation Straight | ||
Priced to Clear Yes | ||
- COO (Country of Origin):
- US

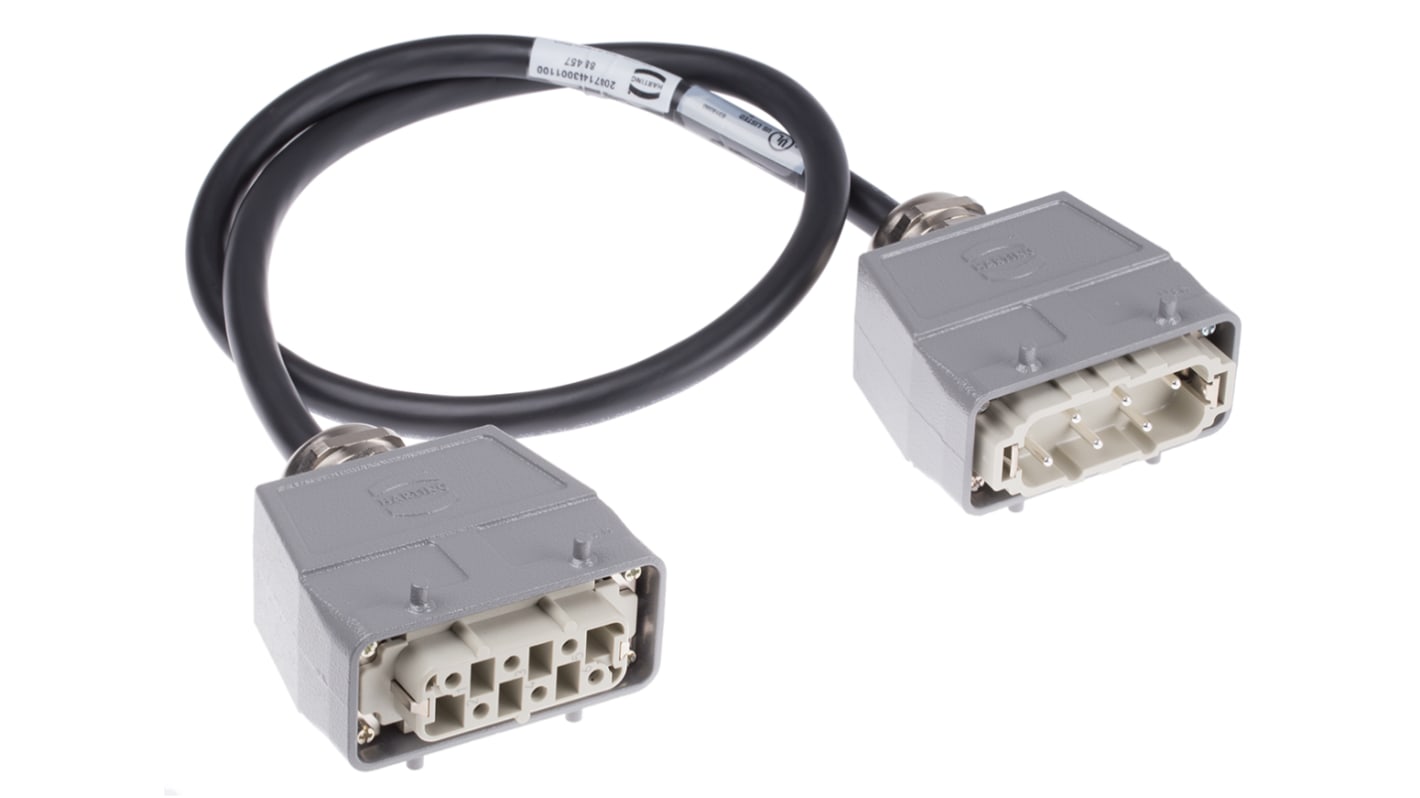

Han 6 HsB Power Cable Assembly
From Harting, this heavy-duty power cable assembly has a Han 6 HsB connector insert and a robust connector hood at each end. With a single locking lever for an extra secure connection, this cable assembly is a ready-to-use solution for heavy-duty industrial connection requirements.
Features and Benefits
Size 16 B Contact Inserts
Double Locking Lever on Hood
AWG 16 wire Gauge
Maximum Current USL: 22 A
Maximum Current CNL: 15 A
Rated AC Voltage: 600 V
Rated DC Voltage: 300 V
TC-ER Cable
Double Locking Lever on Hood
AWG 16 wire Gauge
Maximum Current USL: 22 A
Maximum Current CNL: 15 A
Rated AC Voltage: 600 V
Rated DC Voltage: 300 V
TC-ER Cable
Applications
Harting Han connector cable assemblies are ideal for use in heavy industry such as automotive and plant engineering.
Available in this Range
122-6750 Han 6 HsB cable assembly has side entry connectors and a 1m cable
122-6751 Han 6 HsB cable assembly has side entry connectors and a 2m cable
122-6752 Han 6 HsB cable assembly has top entry connectors and a 1m cable
122-6753 Han 6 HsB cable assembly has top entry connectors and a 2m cable
122-6751 Han 6 HsB cable assembly has side entry connectors and a 2m cable
122-6752 Han 6 HsB cable assembly has top entry connectors and a 1m cable
122-6753 Han 6 HsB cable assembly has top entry connectors and a 2m cable
Harting Han-Power®
