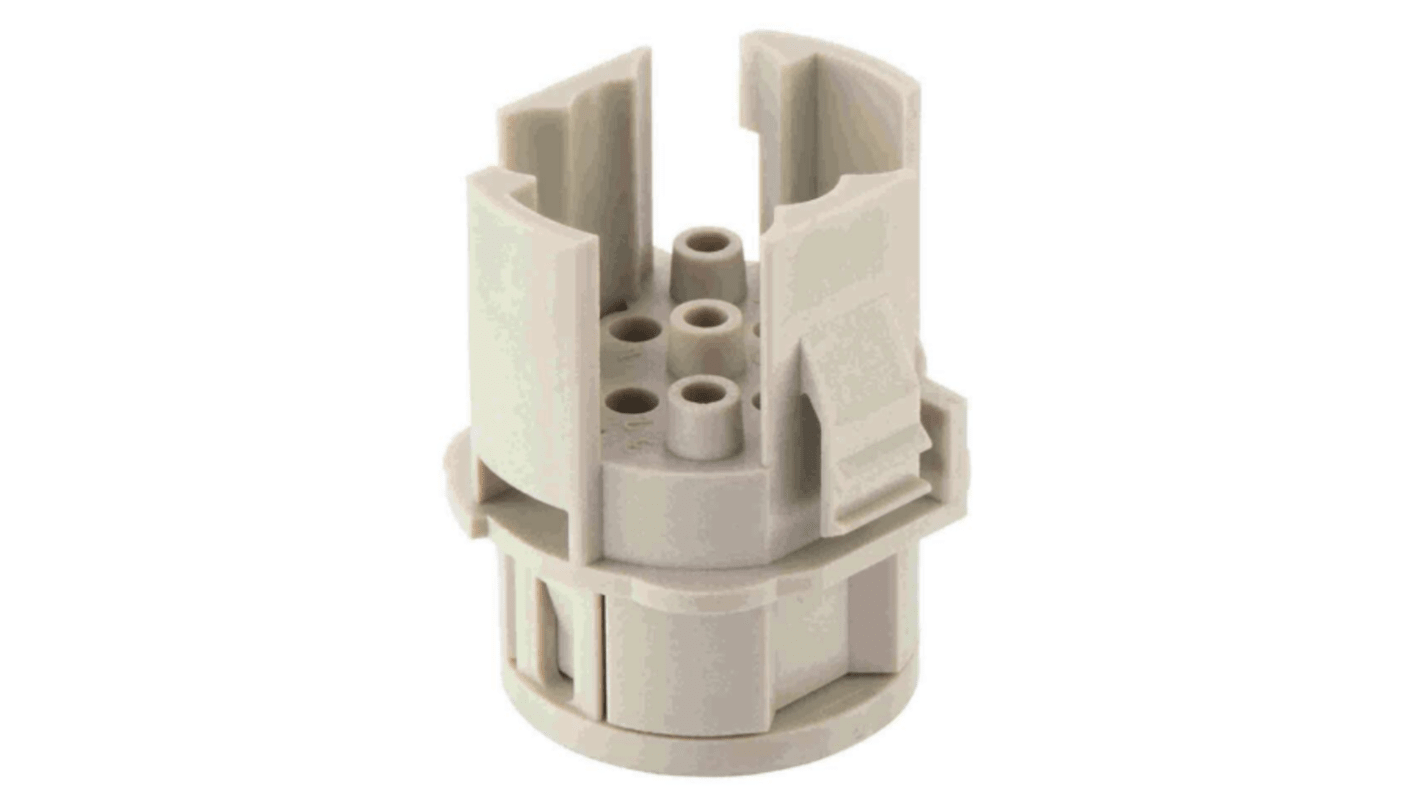

HARTING Heavy Duty Power Connector Insert, 16A, Male, Han F+B Series, 4+4 Contacts

View this category

Subtotal (1 unit)*

£12.85

(exc. VAT)

£15.42

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 5 unit(s), ready to ship
Units
Per unit
1 +£12.85

*price indicative

RS Stock No.:
885-6088
Mfr. Part No.:
09155083001
Brand:
HARTING
Find similar products by selecting one or more attributes.
Select all

Brand

HARTING

Current Rating

16A

Gender

Male

Series

Han F+B

Type

Connector Insert

Termination Method

Crimp

Pole Format

8P+E

Number of Rows

3

Voltage Rating

400 V

Range

Han F+B

Number of Contacts

4+4

COO (Country of Origin):
DE

Harting Han F+B Series Connector Insert, 20A Current Rating, Crimp Termination Method - 09155083001


This heavy-duty power connector insert is designed for high-performance applications within industrial environments. Specifically engineered as a male connector, it operates seamlessly with the Han F+B series, facilitating reliable connections. Built to support a voltage rating of 400 V and a current rating of 20 A, this connector insert accommodates a range of conductor sizes from 0.14 mm² to 4 mm².

Features & Benefits


• Offers crimp termination for secure and reliable connections
• Rated for 20 A continuous current for effective power distribution
• Supports voltage ratings up to 400 V for versatile applications
• Features an 8P+E pole format ensuring safe configurations
• Built to withstand up to 500 mating cycles for durability
• Constructed from polycarbonate, meeting strict material flammability standards

Applications


• Used in automation systems for precise electrical connectivity
• Suitable for industrial machinery where robust connections are essential
• Ideal for electrical and mechanical industries requiring reliable power links
• Employed in installations that demand high current and voltage capabilities

What is the maximum temperature tolerance for this connector insert?


This connector insert operates effectively between -40 °C and +125 °C, making it suitable for various environmental conditions.

How many additional contacts are available with this insert?


The insert accommodates four main contacts along with four additional signal contacts, allowing for complex electrical setups.

What is the insulation resistance rating for this product?


The insulation resistance exceeds 10^10 Ω, ensuring reliable performance and safety in demanding applications.

What is the crimping requirement for this connector insert?


For optimal performance, crimp contacts must be ordered separately and tailored to match the specified conductor sizes from 0.14 mm² to 4 mm².


Harting Han® Modular


The Han-Modular series is a system consisting of insert modules and frames into which the insert modules fit. These in turn may be fitted to standard Han® housings. The system allows a variety of insert configurations within the one connector assembly. The Han-Modular system is designed to meet specific requirements of individual customers and offers flexibility when considering connections for signal, power & pneumatic lines when a solution is required with one connector Apart from the quality of the crimp connector, the right choice of the assembly tool is the basic element of a reliable connection. HARTING offers appropriate crimping tools for different levels of automation for all connectors.
