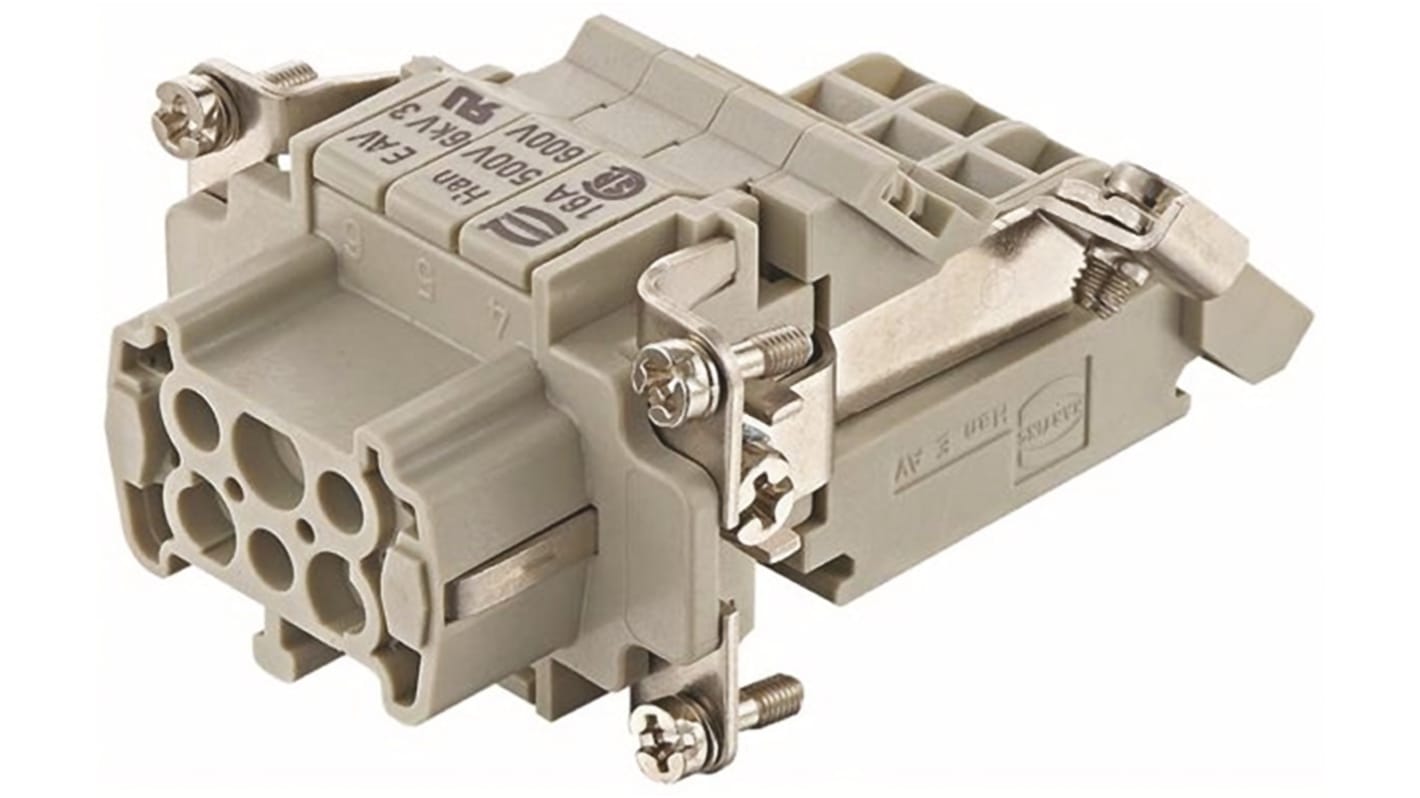

HARTING Heavy Duty Power Connector Insert, 16A, Female, Han E Series, 6 Contacts
- RS Stock No.:
- 842-7743
- Mfr. Part No.:
- 09330064735
- Brand:
- HARTING
Bulk discount available
Subtotal (1 unit)*
£40.57
(exc. VAT)
£48.68
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 2 unit(s) shipping from 13 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £40.57 |
| 10 - 24 | £39.36 |
| 25 - 49 | £38.18 |
| 50 + | £37.08 |
*price indicative
- RS Stock No.:
- 842-7743
- Mfr. Part No.:
- 09330064735
- Brand:
- HARTING
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HARTING | |
| Current Rating | 16A | |
| Gender | Female | |
| Series | Han E | |
| Type | Terminal Block Insert | |
| Termination Method | Screw | |
| Number of Rows | 2 | |
| Voltage Rating | 500 V | |
| Number of Contacts | 6 | |
| Contact Material | Copper Alloy | |
| Body Orientation | Straight | |
Select all | ||
|---|---|---|
Brand HARTING | ||
Current Rating 16A | ||
Gender Female | ||
Series Han E | ||
Type Terminal Block Insert | ||
Termination Method Screw | ||
Number of Rows 2 | ||
Voltage Rating 500 V | ||
Number of Contacts 6 | ||
Contact Material Copper Alloy | ||
Body Orientation Straight | ||
- COO (Country of Origin):
- DE
Han E® AV Terminal Blocks
From Han E, these AV terminal blocks are used in conjunction with the bulkhead/panel mount housing to allow a terminal block style wire termination inside the equipment, perfect for customizable connection solutions.
Features and Benefits:
• Inserts available with 6 to 24 poles plus pre-mating earth
• Screw terminal wire acceptance 0.2 to 2.5mm²
• Mechanical life of 500 mating cycles
• Compatible with the Han E ES AV and Han E AV range of Hoods and Housings
• Inserts available with 6 to 24 poles plus pre-mating earth
• Screw terminal wire acceptance 0.2 to 2.5mm²
• Mechanical life of 500 mating cycles
• Compatible with the Han E ES AV and Han E AV range of Hoods and Housings
Warning
These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of wrong connection.
Approvals
UL, CSA, SEV
Han E® AV 16A Terminal Blocks
These Han E® AV inserts are rated at 16A. They are intended for use with hoods and housings contained within ranges 5, 6, 7, & 8. These housing ranges are associated to a specific Harting 'Size' number identifier. See the 'compatibility' table for details of this relationship, and stock numbers of housings that are typical of each range.
