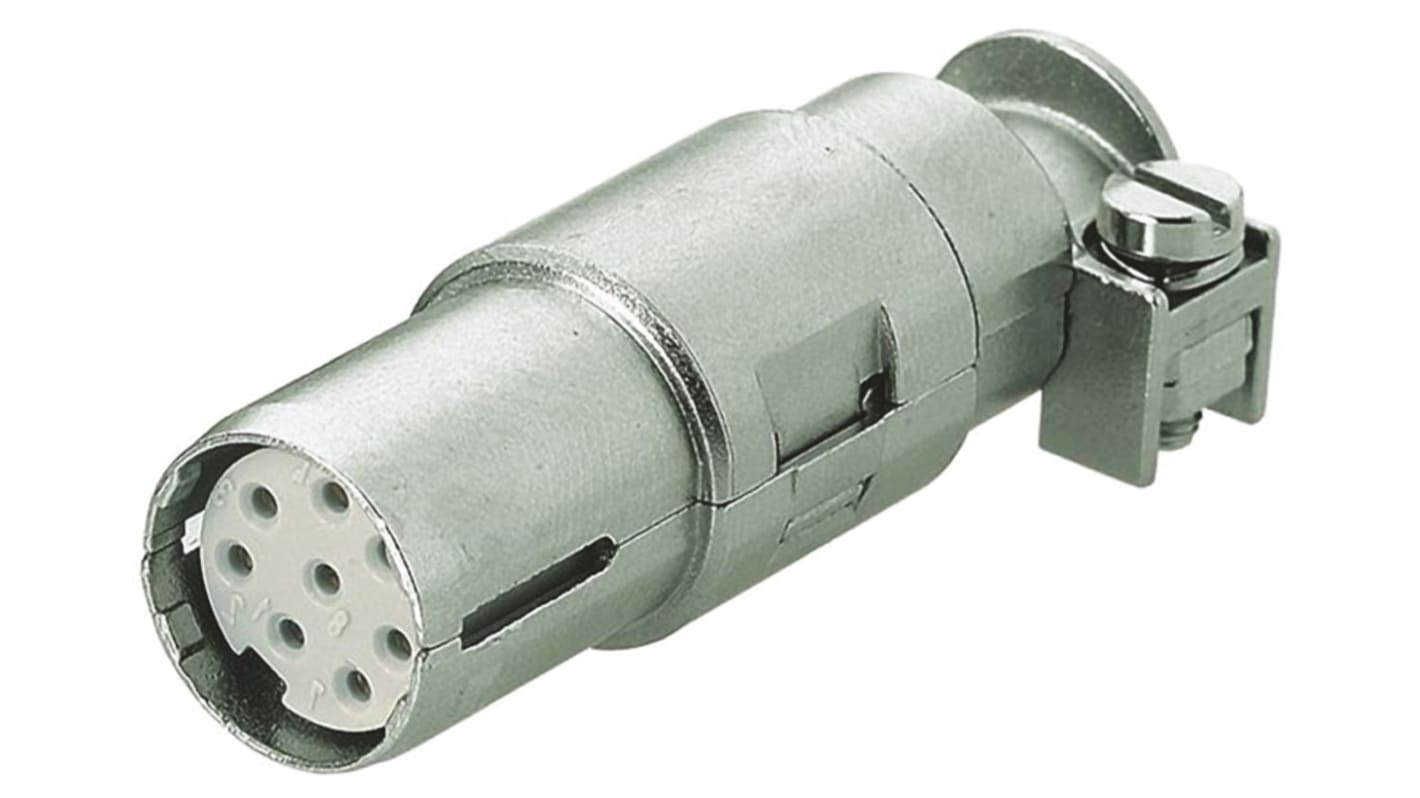

HARTING Heavy Duty Power Connector Insert, 5A, Female, Han-Modular Series, 8 Contacts
- RS Stock No.:
- 842-7668
- Mfr. Part No.:
- 09150083113
- Brand:
- HARTING
Available to back order for despatch 03/06/2024
Added
Price Each
£30.27
(exc. VAT)
£36.32
(inc. VAT)
| Units | Per unit |
| 1 + | £30.27 |
- RS Stock No.:
- 842-7668
- Mfr. Part No.:
- 09150083113
- Brand:
- HARTING
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Han-Brid Quintax Inserts and Contacts
A comprehensive offering of contacts and inserts for use with the Han-Brid series of modules, inserts etc, can be used with Han 3A housing and hoods.
Possibility to terminate shielded four/eight wires
conductors (2 pair STP)
Terminate Coax cable with large diameter
Suitable for all 4-wire bus systems
Ideal for shielded cable conductor diameter 3 – 9.5 mm
conductors (2 pair STP)
Terminate Coax cable with large diameter
Suitable for all 4-wire bus systems
Ideal for shielded cable conductor diameter 3 – 9.5 mm
Harting Han-Brid
The Han-Brid series allows the connection of a data interface and a power supply in a single space saving connector. This means it is now possible to provide data transmission and power to devices in a single bus .
Specifications
Attribute | Value |
|---|---|
| Current Rating | 5A |
| Gender | Female |
| Series | Han-Modular |
| For Use With | 2 Contact Module |
| Voltage Rating | 50 V |
| Number of Contacts | 8 |
| Maximum Wire Size mm² | 0.52mm² |
| Minimum Wire Size mm² | 0.09mm² |
