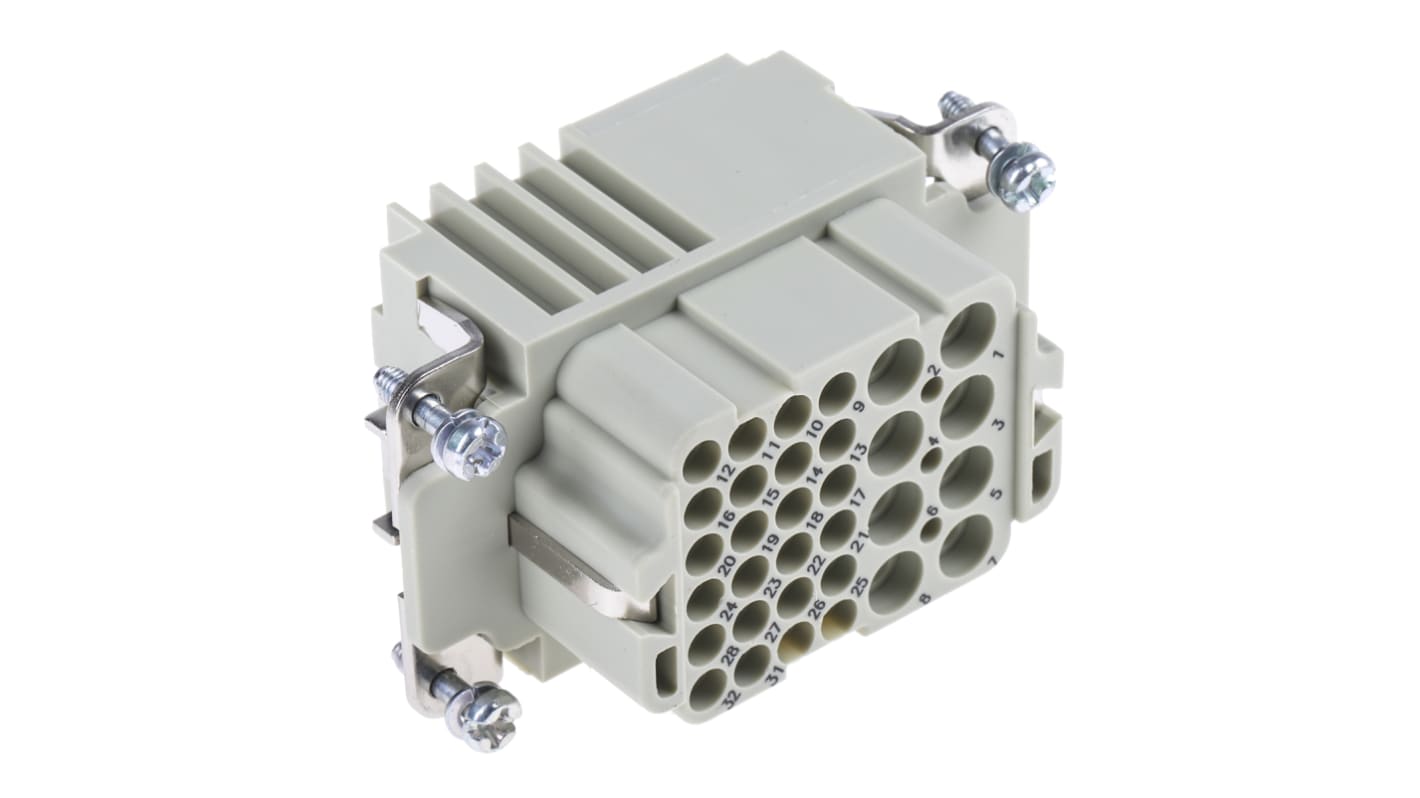

HARTING Heavy Duty Power Connector Insert, 16A, Female, Han Com, Han HSC, Han K Series, 32 Contacts

RS Stock No.:: 398-3122
Mfr. Part No.:: 09380323101
Brand:: HARTING

HARTING Heavy Duty Power Connector Insert, 16A, Female, Han Com, Han HSC, Han K Series, 32 Contacts

40 In stock - FREE next working day delivery available

15 available from Europe for delivery within 2 working day(s).

Price Each

£39.41

(exc. VAT)

£47.29

(inc. VAT)

Units	Per unit
1 - 9	£39.41
10 - 24	£37.83
25 +	£36.22

RS Stock No.:: 398-3122
Mfr. Part No.:: 09380323101
Brand:: HARTING

Technical Reference

TB 09 38 032 3101 Female Insert Data Sheet

Legislation and Compliance

Product Details

Han-Com® Inserts

Poles 4//0, 4//2, 4//8, 6//6, and 6//12 formats have screw connection
Poles 8//24 format has crimp connection

Note

The 221-1808 to 221-1791 series of crimp contacts utilise contact extraction tool - stock no. 313-6613. All others utilise extraction tool stock no. 114-7728

Warning

These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of wrong connection.

Approvals

UL, CSA, SEV

Han-Com® Signal & Power (Crimp and Screw)

These Han- Com® inserts are available in current ratings from 10A to 100A. They are intended for use typically with hoods and housings; RS stock Nos. 181-0561, 181-0741, 181-0785, 363-8535, 363-8585 and their associated ranges. These hood and housing ranges are associated to a specific Harting 'Size' number identifier

Specifications

Attribute	Value
Current Rating	16A
Gender	Female
Series	Han Com, Han HSC, Han K
Type	Connector Insert
Voltage Rating	400 V
IP Rating	IP65
Number of Contacts	32
Body Orientation	Straight
