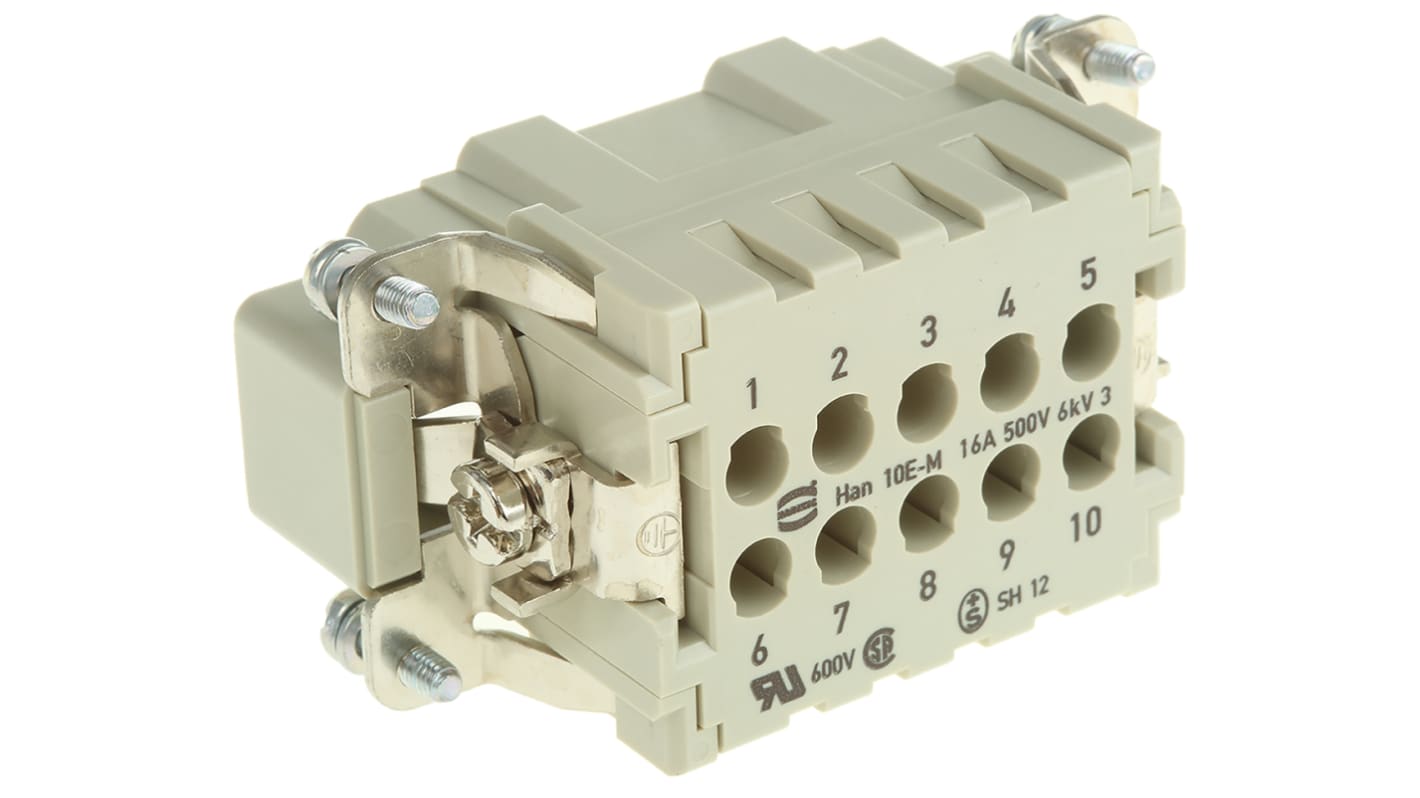

Han E Series size 16 A Connector Insert, Male, 10 Way, 16A, 500 V
- RS Stock No.:
- 365-1847
- Mfr. Part No.:
- 09330102602
- Brand:
- HARTING
39 In stock - FREE next working day delivery available
5 available from Europe for delivery within 1 working day(s).
Added
Price Each
£12.13
(exc. VAT)
£14.56
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £12.13 |
| 10 - 24 | £11.60 |
| 25 + | £11.15 |
- RS Stock No.:
- 365-1847
- Mfr. Part No.:
- 09330102602
- Brand:
- HARTING
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Han E® 16A Crimp Series
Harting contact inserts have a wide range of uses. Inserts are selected according to the desired number of poles and voltage and current ratings.
Current rating 16A
Working voltage 500V
6 to 24 poles
Crimp contacts must be ordered separately – option of 1.5mm² and 2.5mm²
Working voltage 500V
6 to 24 poles
Crimp contacts must be ordered separately – option of 1.5mm² and 2.5mm²
Note
The parallel action crimp tool requires locator stock no. 114-7920
Warning
These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of a wrong connection.
Approvals
UL, CSA, SEV
Han E® 16A Crimp Series
These Han E® inserts are rated at 16A. They are intended for use with hoods and housings contained within ranges 5, 6, 7, & 8. These hood and housing ranges are associated to a specific Harting 'Size' number identifier. See the 'compatibility' table for details of this relationship, and stock numbers of hoods and housings that are typical of each range.
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 10 |
| Type | Connector Insert |
| Current Rating | 16A |
| Series | Han E |
| Manufacturer Size Code | 16 A |
| Voltage Rating | 500 V |
| Gender | Male |
| Number of Rows | 2 |
| Body Orientation | Straight |
| CAD Drawing | 3D CAD Model |
