TE Connectivity Heavy Duty Power Connector Insert, 16A, HA Series Male, 16 Contacts
- RS Stock No.:
- 300-3119
- Distrelec Article No.:
- 303-34-225
- Mfr. Part No.:
- 1-1103416-7
- Brand:
- TE Connectivity

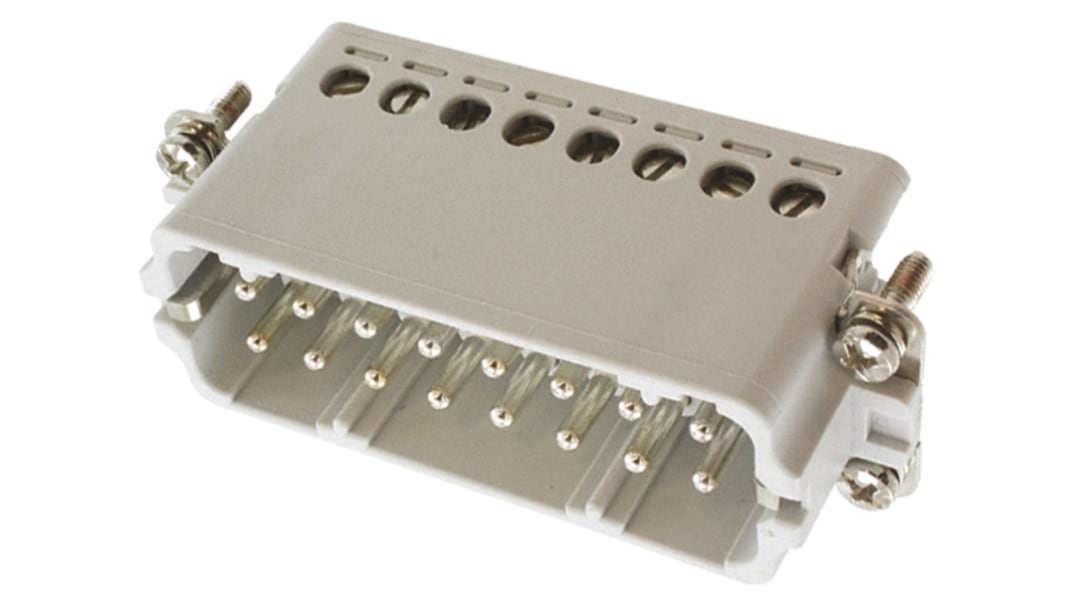

Image representative of range
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 300-3119
- Distrelec Article No.:
- 303-34-225
- Mfr. Part No.:
- 1-1103416-7
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Current Rating | 16A | |
| Product Type | Heavy Duty Power Connector Insert | |
| Series | HA | |
| Sub Type | Connector Insert | |
| Connector Gender | Male | |
| For Use With | Heavy Duty Power Connector | |
| Pole Format | 16+E | |
| Number of Rows | 2 | |
| Voltage | 250V | |
| Mount Type | Panel | |
| Number of Contacts | 16 | |
| Standards/Approvals | No | |
| Contact Plating | Silver, Gold | |
| Contact Material | Polycarbonate | |
| Orientation | Straight | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Current Rating 16A | ||
Product Type Heavy Duty Power Connector Insert | ||
Series HA | ||
Sub Type Connector Insert | ||
Connector Gender Male | ||
For Use With Heavy Duty Power Connector | ||
Pole Format 16+E | ||
Number of Rows 2 | ||
Voltage 250V | ||
Mount Type Panel | ||
Number of Contacts 16 | ||
Standards/Approvals No | ||
Contact Plating Silver, Gold | ||
Contact Material Polycarbonate | ||
Orientation Straight | ||
HA Inserts
Male and female inserts will fit either cable hoods or base housings.
Each insert has a separate earth contact
To make up a 32 way male connector the 1-16 pole (16 way) and 17-32 pole inserts should be purchased together. These inserts will fit alongside each other in 32 way housings
To make up a 32 way female connector two 1-16 pole (16 way) pole inserts should be purchased together. These inserts will fit alongside each other in big 32 way housings
Sequential numbering for high density applications
Twist locked
Screw and spring clamp contacts already included
For crimp contacts the pins should be ordered separately see stock no. 416-171, for a suitable crimping tool see stock no. 416-199
Inserts
Approvals
UL Listed, CSA Certified, SEV
