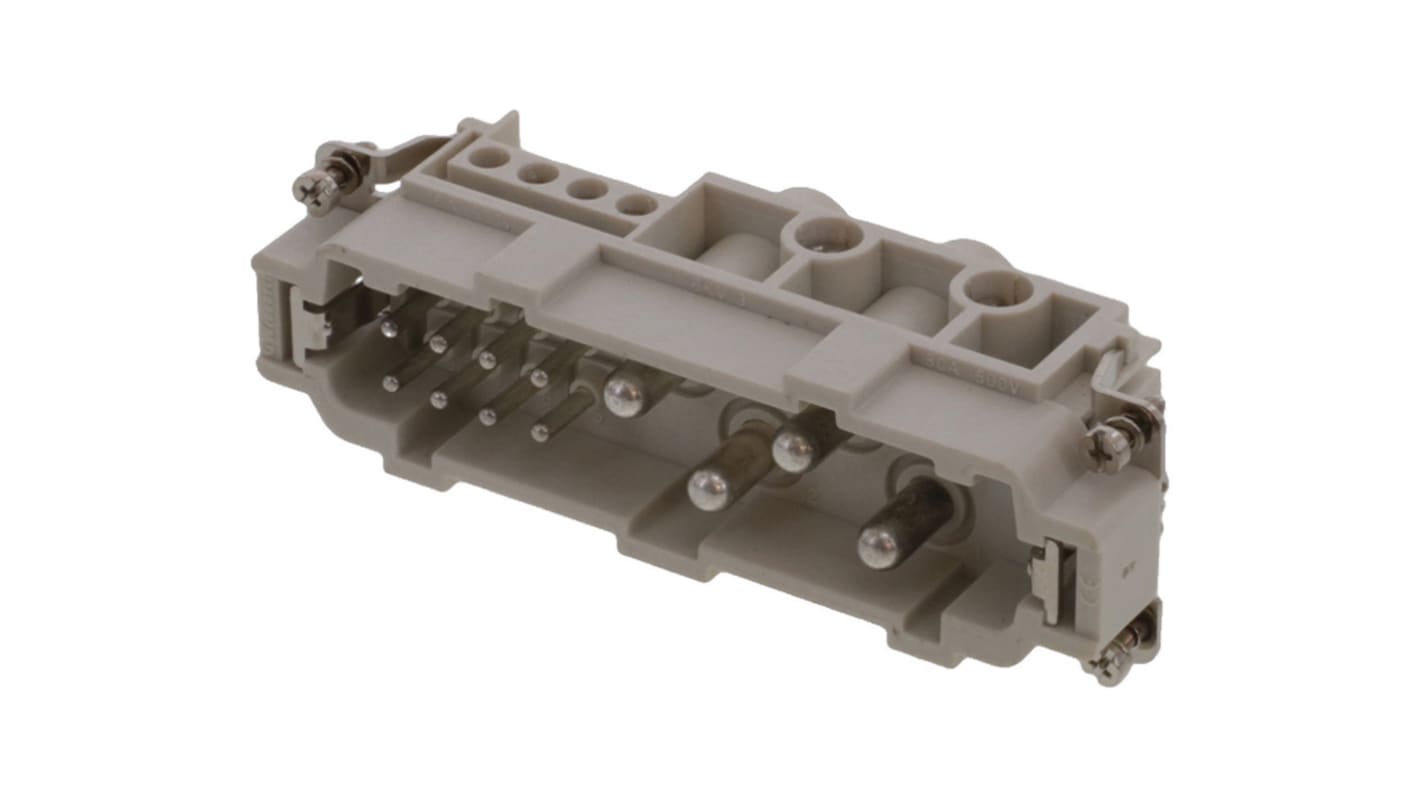

Molex Heavy Duty Power Connector Module, 16A, Male, 93601 Series, 12 Contacts
- RS Stock No.:
- 250-1947
- Mfr. Part No.:
- 936010247
- Brand:
- Molex
Bulk discount available
Subtotal (1 bag of 100 units)*
£2,212.20
(exc. VAT)
£2,654.60
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 100 - 100 | £22.122 | £2,212.20 |
| 200 - 400 | £21.723 | £2,172.30 |
| 500 + | £20.927 | £2,092.70 |
*price indicative
- RS Stock No.:
- 250-1947
- Mfr. Part No.:
- 936010247
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Current Rating | 16A | |
| Gender | Male | |
| Series | 93601 | |
| Type | Screw Terminal Insert | |
| For Use With | Electronic Machinery | |
| Number of Contacts | 12 | |
| Contact Plating | Silver | |
| Contact Material | Copper Alloy | |
Select all | ||
|---|---|---|
Brand Molex | ||
Current Rating 16A | ||
Gender Male | ||
Series 93601 | ||
Type Screw Terminal Insert | ||
For Use With Electronic Machinery | ||
Number of Contacts 12 | ||
Contact Plating Silver | ||
Contact Material Copper Alloy | ||
- COO (Country of Origin):
- CN
Molex 93601 Series Heavy Duty Power Connector Module, 16A Current Rating, 600V Voltage Rating - 936010247
This heavy duty power connector module is designed for industrial applications, particularly for electronic machinery. With a current rating of 16A and a high voltage capability of 600V, this module features a male configuration and screw terminal insert type, making it an essential component for robust connections. Its dimensions fit into size 24B enclosures, ensuring compatibility with various industrial environments.
Features & Benefits
• Supports a maximum current of 16A for powerful applications
• Rated for 600V, suitable for demanding environments
• Male connection ensures secure attachments
• Silver-plated contacts enhance electrical conductivity
• Constructed with copper alloy terminals for durability
• Designed for up to 500 mating cycles for longevity
• Rated for 600V, suitable for demanding environments
• Male connection ensures secure attachments
• Silver-plated contacts enhance electrical conductivity
• Constructed with copper alloy terminals for durability
• Designed for up to 500 mating cycles for longevity
Applications
• Used with specific electronic machinery for efficient connections
• Ideal for industrial power connectors in manufacturing settings
• Compatible with size 24B hoods and housings for assembly
• Perfect for scenarios requiring reliable and durable connectivity
• Ideal for industrial power connectors in manufacturing settings
• Compatible with size 24B hoods and housings for assembly
• Perfect for scenarios requiring reliable and durable connectivity
What are the temperature limits for effective operation?
The connector operates effectively within a temperature range of -40°C to +125°C, making it suitable for diverse environmental conditions.
How does the tightening test torque specification affect installation?
The specified tightening test torque of 0.50 Nm to 2.50 Nm ensures secure connections, reducing the risk of loosening during operation.
What wire sizes can be accommodated by this module?
The connector supports wire sizes ranging from AWG 14 to AWG 20, providing versatility in wiring options for various applications.
