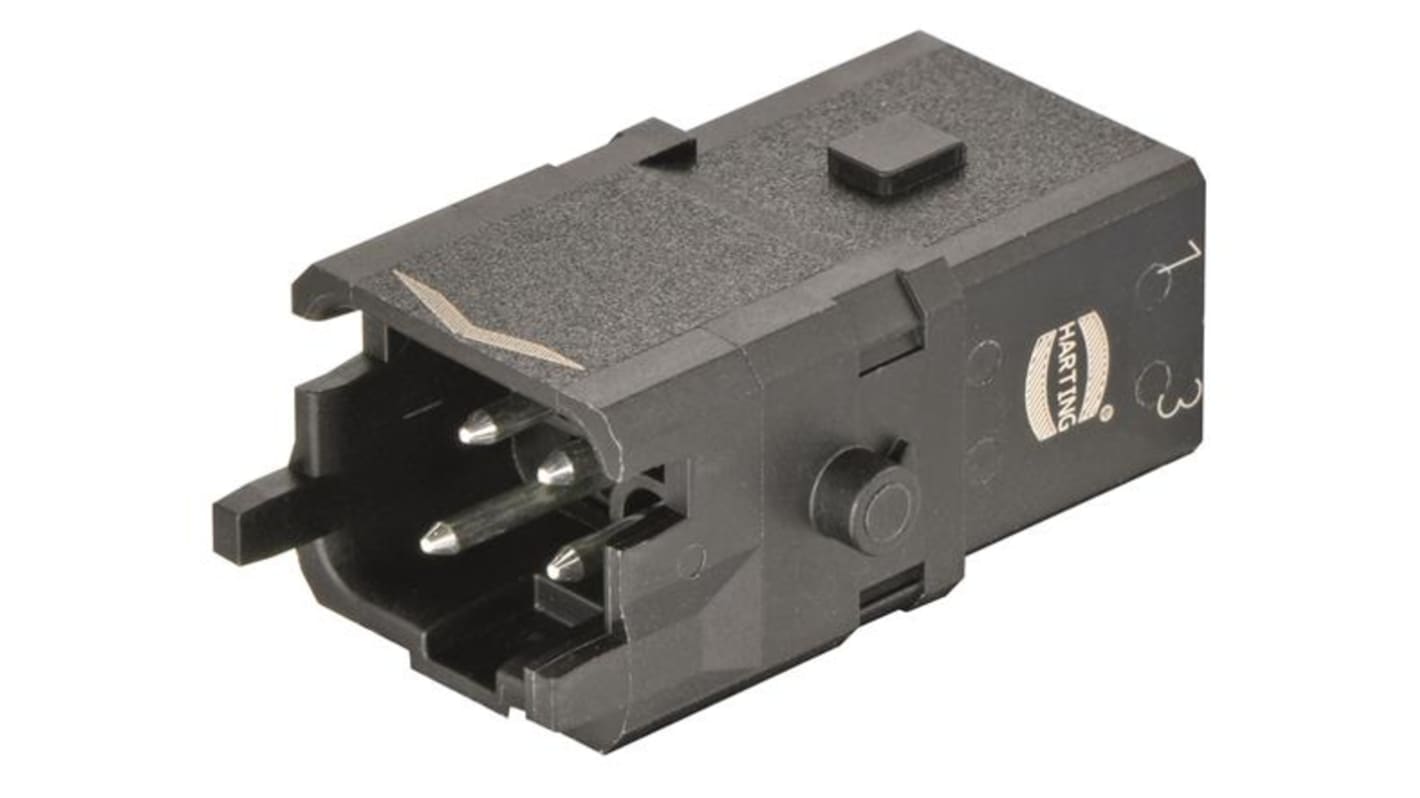

HARTING Heavy Duty Power Connector Insert, 10A, Male, Han 1A Series, 3 Contacts
- RS Stock No.:
- 188-1467
- Distrelec Article No.:
- 302-14-334
- Mfr. Part No.:
- 09100032606
- Brand:
- HARTING
Bulk discount available
Subtotal (1 unit)*
£8.29
(exc. VAT)
£9.95
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £8.29 |
| 10 - 49 | £8.04 |
| 50 - 99 | £7.41 |
| 100 + | £6.20 |
*price indicative
- RS Stock No.:
- 188-1467
- Distrelec Article No.:
- 302-14-334
- Mfr. Part No.:
- 09100032606
- Brand:
- HARTING
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HARTING | |
| Current Rating | 10A | |
| Gender | Male | |
| Series | Han 1A | |
| Type | Connector Insert | |
| Termination Method | Screw | |
| Pole Format | 3P+E | |
| Number of Rows | 2 | |
| Voltage Rating | 230 V, 400 V | |
| Range | Han | |
| IP Rating | IP20, IP65 | |
| Number of Contacts | 3 | |
| Contact Plating | Silver Plated | |
| Contact Material | Copper Alloy | |
Select all | ||
|---|---|---|
Brand HARTING | ||
Current Rating 10A | ||
Gender Male | ||
Series Han 1A | ||
Type Connector Insert | ||
Termination Method Screw | ||
Pole Format 3P+E | ||
Number of Rows 2 | ||
Voltage Rating 230 V, 400 V | ||
Range Han | ||
IP Rating IP20, IP65 | ||
Number of Contacts 3 | ||
Contact Plating Silver Plated | ||
Contact Material Copper Alloy | ||
Harting Han 1A Series Heavy Duty Power Connector Insert, 10A Current Rating, 3P+E Pole Format - 09100032606
This heavy-duty power connector insert is designed for robust electrical connections. Ideal for demanding environments, it features a male design with a screw termination method for secure connections. With a current rating of 10 A and voltage ratings of 230 V and 400 V, this connector insert is engineered for reliability in electrical applications.
Features & Benefits
• 10 A rated current supports high-demand applications
• Male connector insert ensures compatibility across systems
• Screw termination method provides a secure and stable connection
• IP65 rating available with additional hoods for outdoor use
• Silver-plated contacts enhance conductivity and durability
• 3P+E configuration allows for versatile electrical connections
• Male connector insert ensures compatibility across systems
• Screw termination method provides a secure and stable connection
• IP65 rating available with additional hoods for outdoor use
• Silver-plated contacts enhance conductivity and durability
• 3P+E configuration allows for versatile electrical connections
Applications
• Employed in industrial automation setups for reliable power delivery
• Utilised in machinery and equipment requiring secure electrical interfaces
• Suitable for use in mechanical installations within harsh environments
• Applies to electrical panels needing robust connection solutions
• Utilised in machinery and equipment requiring secure electrical interfaces
• Suitable for use in mechanical installations within harsh environments
• Applies to electrical panels needing robust connection solutions
What are the maximum and minimum wire sizes compatible with this connector?
The connector supports a maximum wire size of 1.5 mm² and a minimum of 0.75 mm², allowing flexibility in wire selection based on the specific needs of the application.
Can I couple or decouple the connector under load?
It is recommended not to couple or decouple the inserts under electrical load, as this may compromise safety and functionality.
What is the degree of protection for the connector without additional seals?
Without additional seals, the degree of protection is rated at IP20, suitable for indoor applications where moisture exposure is limited.
What locking mechanism does this connector feature?
This insert includes a single locking lever, which enhances the connection stability and prevents accidental disconnection during operation.
