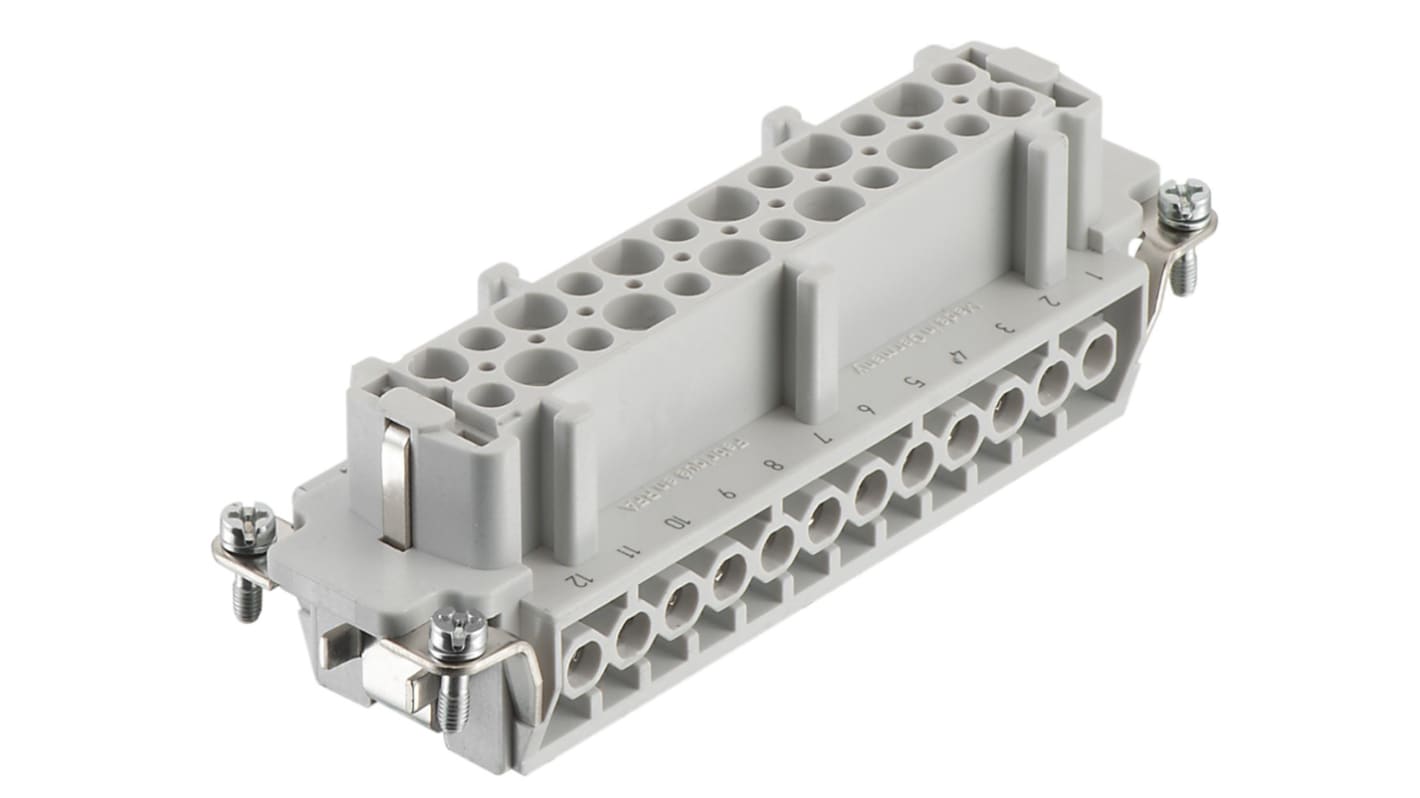

RS PRO Heavy Duty Power Connector Insert, 16A, Female, 24 Contacts
- RS Stock No.:
- 171-5739
- Brand:
- RS PRO
114 In stock - FREE next working day delivery available
9 available from Europe for delivery within 1 working day(s).
Added
Price Each
£24.10
(exc. VAT)
£28.92
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £24.10 |
| 10 - 24 | £23.09 |
| 25 - 49 | £22.15 |
| 50 + | £21.19 |
- RS Stock No.:
- 171-5739
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
Product Details
RS PRO Heavy Duty Power Connector Insert, 25 Contacts, 16 A, Female
Need a safe and removable connection in protected electrical areas? This RS PRO heavy-duty power insert contains 25 ready-mounted female pins for simple installation in your control system panel or instrument. The connector also includes grounded contacts to protect your devices in the event of reverse polarisation from faulty wiring.
Thanks to the copper alloy contact material and silver contact plating, this power connector insert has high conductivity. No additional tooling is needed as it's moulded to fit securely into the RS PRO Series A housing.
A heavy-duty connector like this is useful for industrial applications like machinery and robotics. It's regularly used by panel and machine builders as well as maintenance engineers.
Thanks to the copper alloy contact material and silver contact plating, this power connector insert has high conductivity. No additional tooling is needed as it's moulded to fit securely into the RS PRO Series A housing.
A heavy-duty connector like this is useful for industrial applications like machinery and robotics. It's regularly used by panel and machine builders as well as maintenance engineers.
Features and Benefits
- Current rating of 16 A
- 24+PE pole format
- Voltage ratings of 500 and 600 V
- Operating temperature of -40°C to +125°C
- Straight body orientation
- Two rows, 25 contacts
- Screw termination method
- Complies with RoHS (Restriction of Hazardous Substances) standards
- Complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
Specifications
Attribute | Value |
|---|---|
| Current Rating | 16A |
| Gender | Female |
| Type | Connector Insert |
| Termination Method | Screw |
| Pole Format | 24+PE |
| Number of Rows | 2 |
| Voltage Rating | 500 V, 600 V |
| Range | 24B |
| Number of Contacts | 24 |
| Contact Material | Copper Alloy |
| Body Orientation | Straight |
| Contact Plating | Silver |
