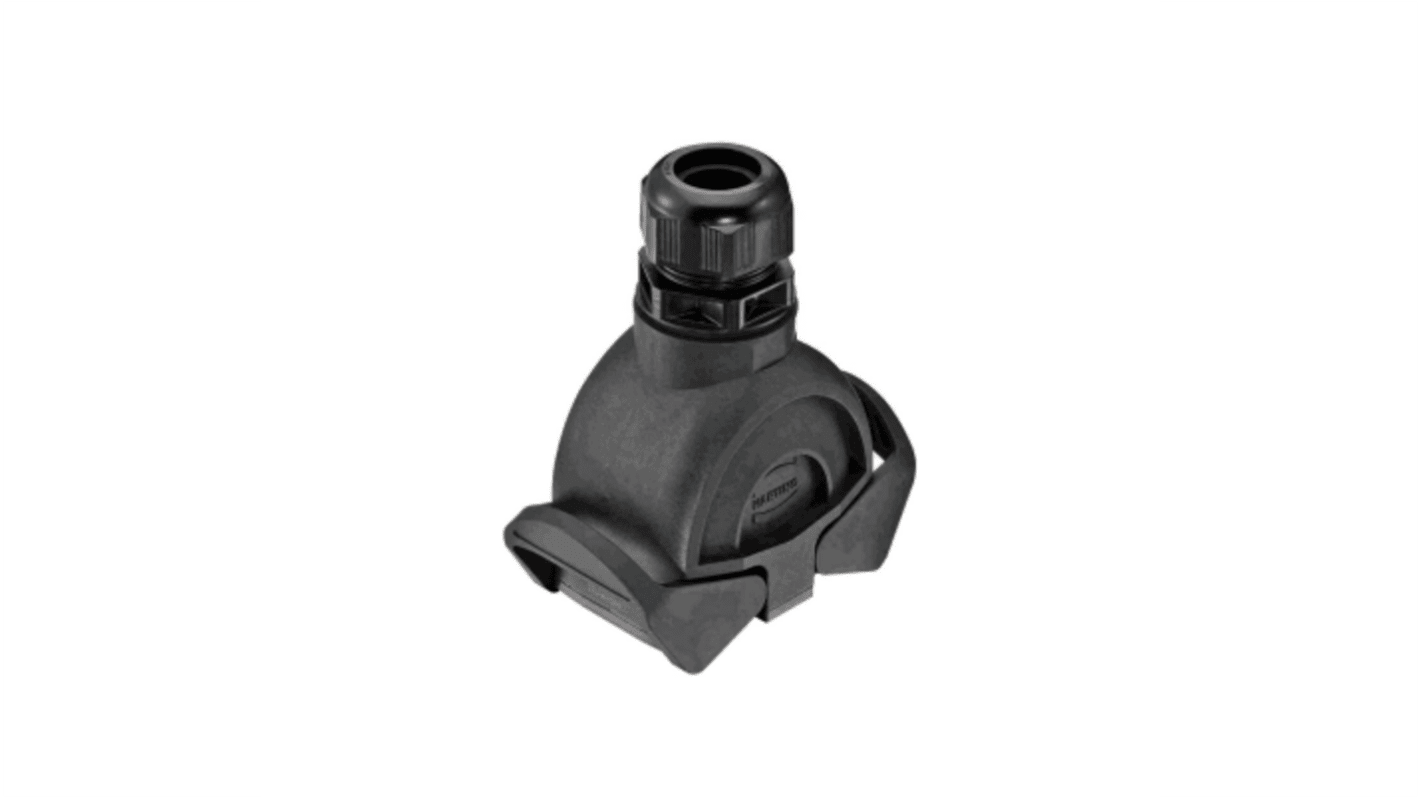

HARTING Han Eco Heavy Duty Power Connector Housing, M32 Thread, Top Entry

View this category
Bulk discount available

Subtotal (1 unit)*

£32.36

(exc. VAT)

£38.83

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 3 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£32.36
10 - 24£31.39
25 +£30.52

*price indicative

RS Stock No.:
762-2483
Mfr. Part No.:
19411100722
Brand:
HARTING
Find similar products by selecting one or more attributes.
Select all

Brand

HARTING

Series

Han Eco

Type

Coupler

Thread Size

M32

Mounting Type

Cable Mount

Size

10B

Manufacturer Size Code

10 B

Body Orientation

Top Entry

IP Rating

IP65

Termination Method

Screw Down

Gender

Hermaphroditic

Number of Levers

2

COO (Country of Origin):
DE

Harting Han Eco Series Heavy Duty Power Connector Housing, M32 Thread size, Cable Mount Type - 19411100722


This heavy duty power connector housing is designed to provide robust electrical connectivity in demanding environments. It features a hermaphroditic design, making it suitable for both male and female applications. Specifically designed for M32 cable mount installations, this connector housing ensures an effective seal with an IP65 rating, making it ideal for industrial use. With a size designation of 10B and a top entry orientation, it promotes efficient cabling solutions across various sectors.

Features & Benefits


• Hermaphroditic connector allows flexible installation options
• M32 thread size ensures compatibility with various cable types
• IP65 rating protects against dust and water ingress
• Screw down termination guarantees a secure connection
• Two levers enhance mechanical stability and user handling
• Durable design suitable for extensive use in industrial settings

Applications


• Utilised in automation systems for reliable power connectivity
• Suitable for electrical installations in harsh environments
• Ideal for use in mechanical requiring robust connectors
• Effective in control panels where high durability is essential

What type of cable mount is compatible with this connector housing?


It is designed for M32 cable mounts, accommodating a variety of cable types effectively, ensuring a secure and reliable connection.

How does the IP65 rating benefit the usage of this connector?


The IP65 rating ensures that the connector housing is protected against dust and water, making it suitable for outdoor and industrial applications where moisture and debris are present.

What is the benefit of a hermaphroditic connector design?


The hermaphroditic design allows for both male and female connectors to be used interchangeably, simplifying installation and reducing the need for multiple connector types in applications.

How is the connection maintained securely with this housing?


The use of a screw down termination method ensures that the connection is reliably secured, preventing accidental disconnections in high vibration environments.

How can this connector housing be advantageous in automation systems?


Its durable construction and versatile design cater to the demanding requirements of automation systems, providing stable connections that enhance performance and longevity.


Harting Han® Modular


The Han-Modular series is a system consisting of insert modules and frames into which the insert modules fit. These in turn may be fitted to standard Han® housings. The system allows a variety of insert configurations within the one connector assembly. The Han-Modular system is designed to meet specific requirements of individual customers and offers flexibility when considering connections for signal, power & pneumatic lines when a solution is required with one connector Apart from the quality of the crimp connector, the right choice of the assembly tool is the basic element of a reliable connection. HARTING offers appropriate crimping tools for different levels of automation for all connectors.
