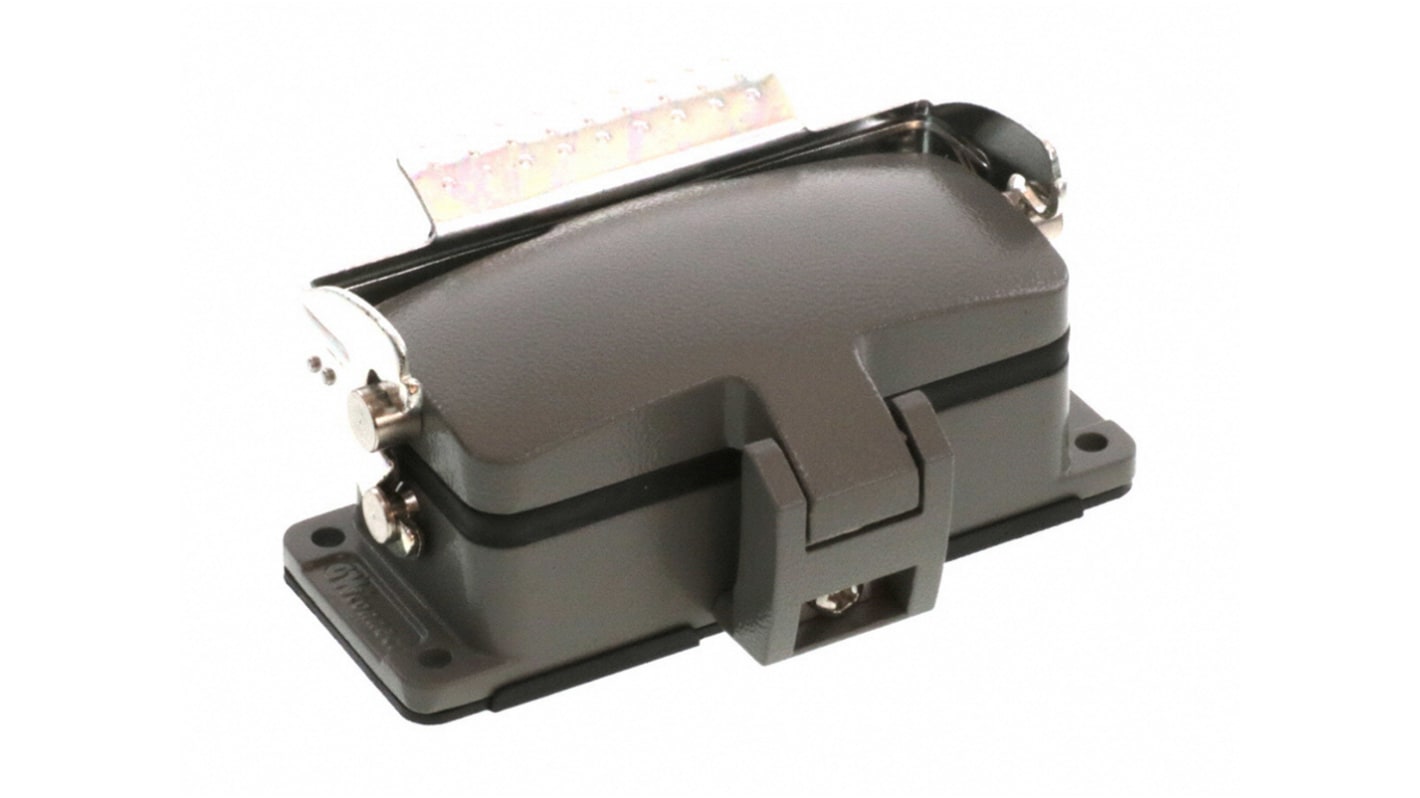

Molex 93601 Heavy Duty Power Connector, Bottom Entry

View this category

Subtotal (1 unit)*

£24.24

(exc. VAT)

£29.09

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 75 unit(s) shipping from 06 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£24.24

*price indicative

RS Stock No.:
250-2074
Mfr. Part No.:
936012574
Brand:
Molex
Find similar products by selecting one or more attributes.
Select all

Brand

Molex

Type

STD

Series

93601

Mounting Type

Bulkhead Mount

Size

16B

Body Orientation

Bottom Entry

Contact Material

Aluminium Alloy

COO (Country of Origin):
CN

Molex 93601 Series Heavy Duty Power Connector, IP66 Rated Connectors, 16B Component size - 936012574


This heavy duty power connector falls under the GWconnect category, specifically designed for industrial applications. It features a bulkhead mount configuration with a robust die-cast aluminium housing, ensuring durability.

Features & Benefits


• Provides secure connections with a single lever mechanism
• Designed for waterproof applications with an IP66 rating
• Constructed from aluminium alloy for enhanced strength
• Compatible with multiple inserts for versatile usage
• Powder coating in grey for corrosion resistance
• Easy installation with bulkhead mount design

Applications


• Used with size 16B «77x27» S-D, S-DD, S-E, S-EE inserts
• Ideal for electrical installations in automation environments
• Suitable for mechanical and industrial equipment connections
• Employed in outdoor requiring waterproof connectors
• Supports effective power distribution in harsh conditions

What ensures secure connectivity with this product?


The design features a single lever mechanism that locks the mating parts together, significantly enhancing the connection's integrity and reliability during operation.

How does the IP66 rating benefit users in industrial settings?


The IP66 rating guarantees complete protection against dust ingress and allows for high-pressure water jets, making it suitable for outdoor installations and harsh industrial conditions.

What materials are used in the construction, and why are they important?


Die-cast aluminium is utilised for both the housing and cover, providing lightweight durability, while the gasket is made from NBR, ensuring a robust seal against environmental challenges.

Can this connector accommodate various sizes and types of inserts?


Yes, it is compatible with various size 16B inserts, allowing flexibility in choosing the right connection for different applications.

How does the powder coating enhance the connector's lifespan?


The polyester powder coating provides excellent corrosion resistance, thereby extending the product's lifespan even in challenging environments.
