Molex 93601 Heavy Duty Power Connector Hood, Pg21 Thread, Side Entry

View this category
Bulk discount available

Subtotal (1 unit)*

£12.79

(exc. VAT)

£15.35

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 11 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£12.79
10 - 99£12.38
100 - 249£11.88
250 - 499£11.37
500 +£10.75

*price indicative

RS Stock No.:
250-2080
Distrelec Article No.:
303-81-042
Mfr. Part No.:
936012770
Brand:
Molex
Find similar products by selecting one or more attributes.
Select all

Brand

Molex

Series

93601

Type

STD

Thread Size

Pg21

Size

16B

Body Orientation

Side Entry

IP Rating

IP66

Cable Entry Angle

Side

Voltage Rating

500 V

Number of Levers

1

Series Number

93601

Contact Material

Aluminium Alloy

COO (Country of Origin):
CN

Molex 93601 Series Heavy Duty Power Connector Hood, 500V Voltage Rating, Aluminium Alloy Contact Material - 936012770

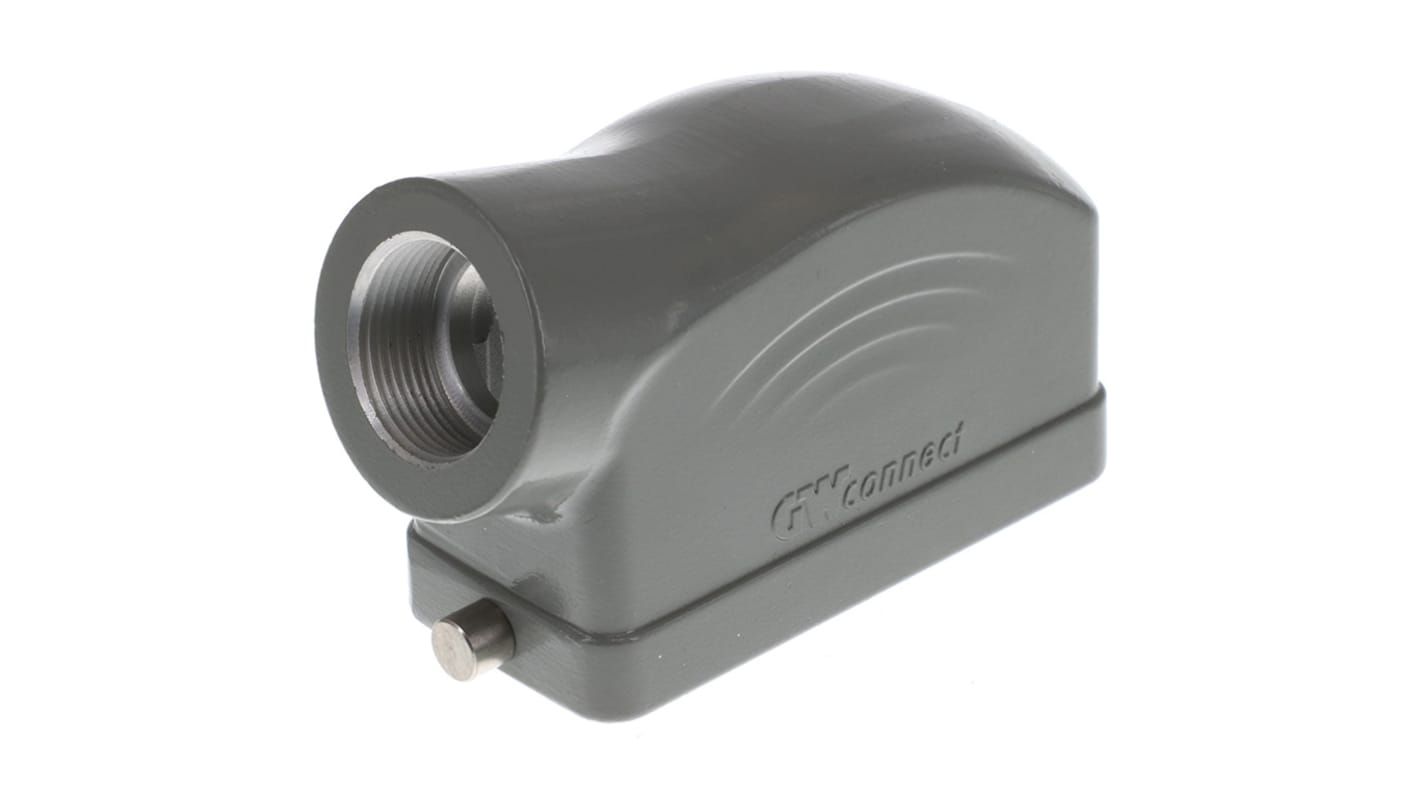

This heavy-duty power connector hood is designed for industrial applications. It features a side-entry design with a Pg21 thread. Constructed from die-cast aluminium, this connector hood offers robust protection with an IP66 rating, ensuring its suitability for harsh environments and high-performance requirements.

Features & Benefits


• Single lever operation simplifies connection and disconnection
• IP66 rating ensures excellent dust and water resistance
• Supports voltage up to 500V for high-performance usage
• Integrated lock feature provides secure mating with connectors

Applications


• Used with various inserts like S-D and S-EE for effective assembly
• Ideal for automation and electrical setups in industrial environments
• Designed for requiring robust electrical connections
• Suitable for mechanical systems needing reliable power distribution

What materials compose this connector hood?


The hood is constructed from die-cast aluminium, providing durability, while the pegs are made from stainless steel for added strength.

How does the IP66 rating benefit the user?


The IP66 rating indicates exceptional protection against dust ingress and water jets, making it suitable for outdoor use and harsh conditions.

What are the specific advantages of the single lever design?


The single lever design allows for quick and easy operation, reducing downtime during maintenance or equipment swaps in industrial settings.

Which connectors can be used with this hood?


It is compatible with size 16B inserts, allowing for a wide range of applications across different industrial setups.
