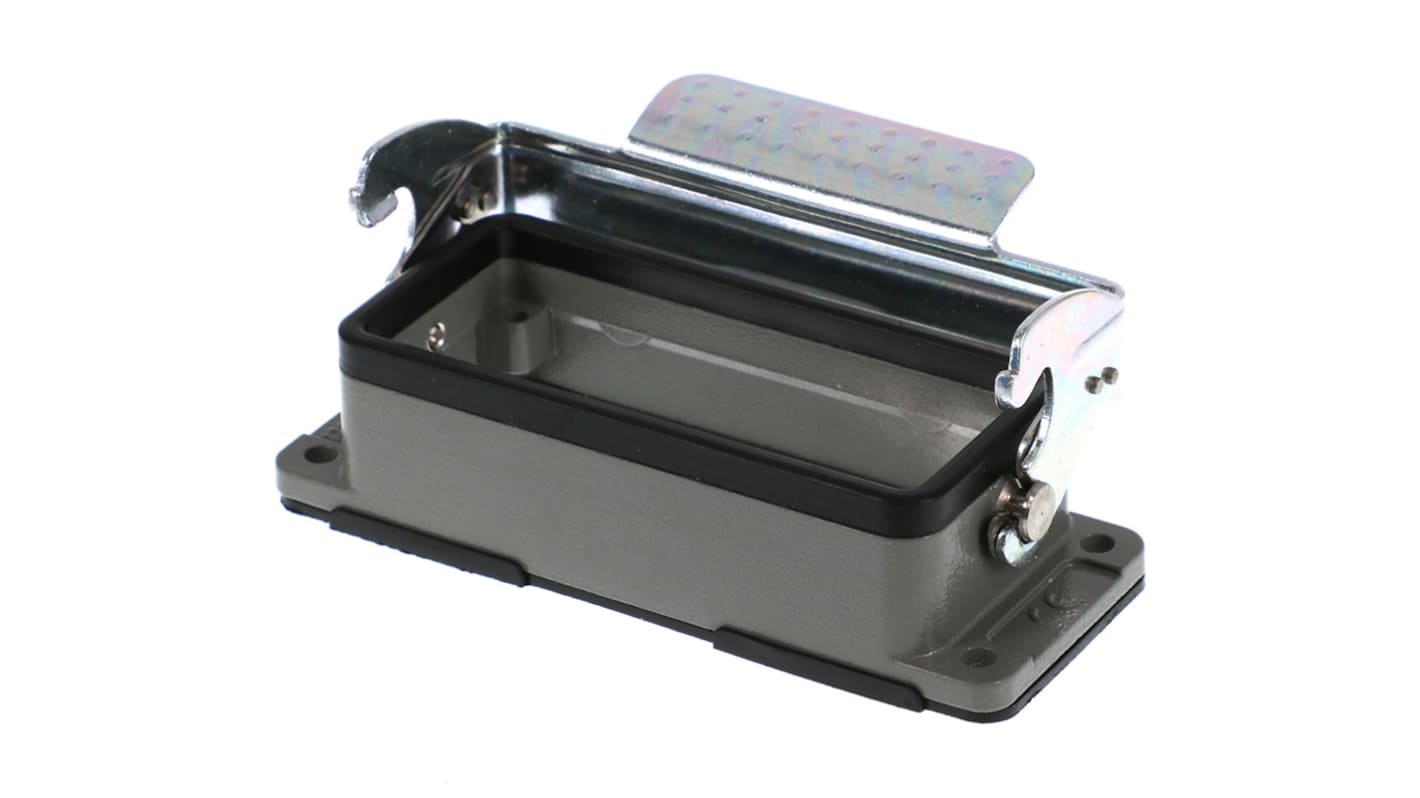

Molex 93601 Heavy Duty Power Connector, Bottom Entry

View this category
Bulk discount available

Subtotal (1 unit)*

£15.83

(exc. VAT)

£19.00

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 9 unit(s) shipping from 10 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£15.83
10 - 24£15.33
25 - 49£15.07
50 +£14.56

*price indicative

RS Stock No.:
250-2072
Distrelec Article No.:
301-25-741
Mfr. Part No.:
936012571
Brand:
Molex
Find similar products by selecting one or more attributes.
Select all

Brand

Molex

Series

93601

Type

STD

Mounting Type

Bulkhead Mount

Size

16B

Body Orientation

Bottom Entry

IP Rating

IP66

Cable Entry Angle

Bottom

Voltage Rating

500 V

Contact Material

Aluminium Alloy

Number of Levers

2

Series Number

93601

For Use With

S-DD, S-E, S-EHV Inserts, S-EP, S-ES, S-ESHV, S-HSB, S-K, S-M, SEE, Size 16B (77x27) S-D

COO (Country of Origin):
CN

Molex 93601 Series Heavy Duty Power Connector, 500V Voltage Rating, IP66 Ingress Protection - 936012571


This heavy duty power connector is a robust solution designed for secure industrial power connections. Built for durability, it features a bulkhead mount configuration and is made from die-cast aluminium. It is ideal for size 16B inserts with a practical bottom entry orientation, making it suitable for a variety of applications requiring high voltage and reliable performance.

Features & Benefits


• Designed to accommodate size 16B (77 x 27) inserts
• High voltage rating of 500V for diverse electrical needs
• Constructed from lightweight and durable aluminium alloy
• Equipped with a bottom cable entry angle for easy installation
• Two levers provide added security for connector engagement

Applications


• Utilised in automated machinery requiring high voltage connections
• Suitable for electrical panels and enclosures in harsh environments
• Ideal for commercial and industrial power distribution systems
• Effective in involving heavy electrical loads
• Used in mechanical and electrical assembly tasks

How does the IP66 rating improve its performance in industrial settings?


The IP66 rating protects against ingress of dust and water, ensuring reliability in harsh environments. This makes it a suitable choice for outdoor and damp applications where moisture and debris could compromise performance.

What materials contribute to its durability and longevity?


The connector is primarily made from die-cast aluminium, offering strength while keeping weight minimal. The aluminium alloy construction enhances resistance to corrosion and mechanical stress, extending its lifespan in tough conditions.

How can it fit into existing electrical installations?


The bulkhead mount design allows for easy integration into existing setups. The bottom entry angle is especially advantageous for routing cables neatly, thus simplifying installation and reducing potential strain on connections.
