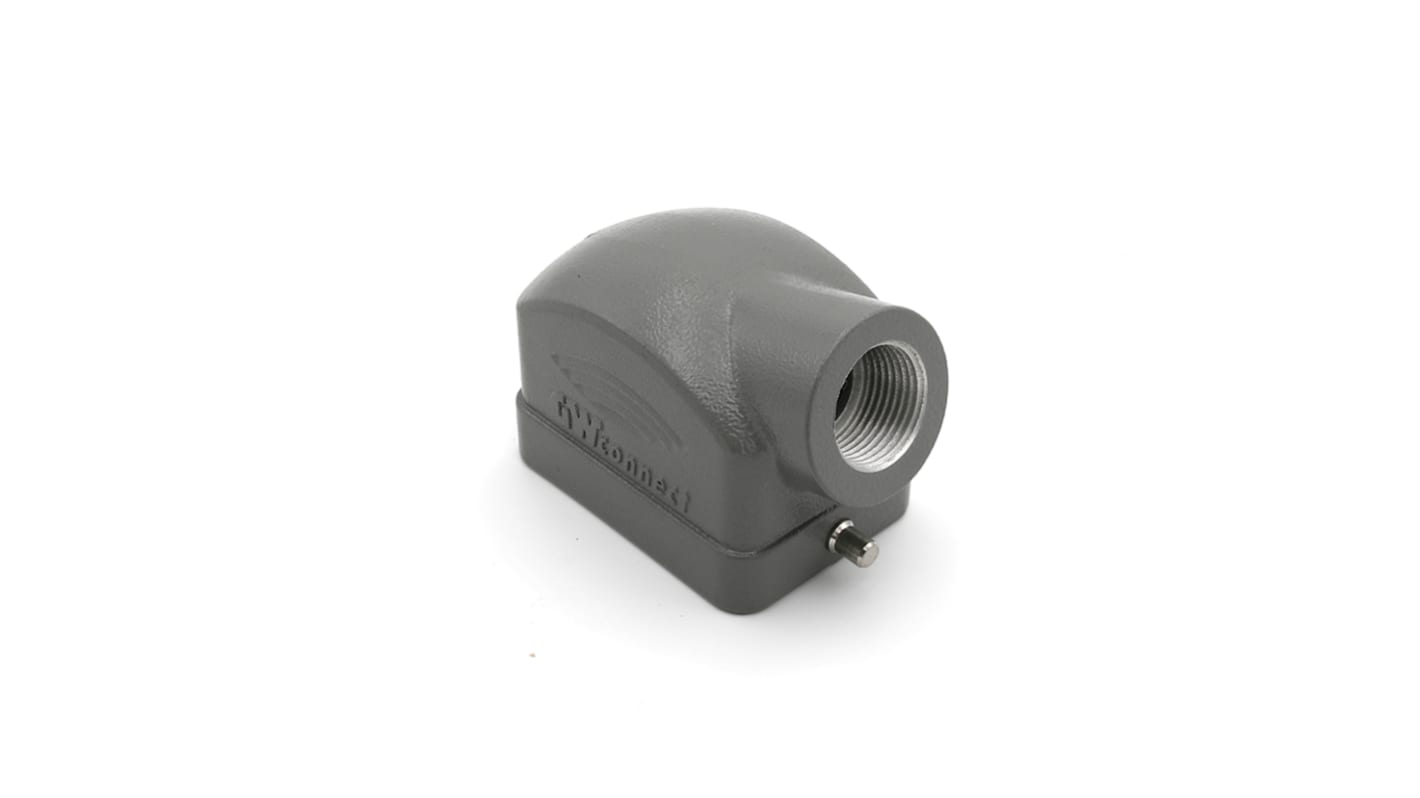

Molex 93601 Heavy Duty Power Connector Hood, Pg16 Thread, Side Entry

View this category
Bulk discount available

Subtotal (1 unit)*

£7.13

(exc. VAT)

£8.56

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 04 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£7.13
10 - 99£6.91
100 - 249£6.61
250 - 499£6.32
500 +£5.98

*price indicative

RS Stock No.:
250-2022
Mfr. Part No.:
936010898
Brand:
Molex
Find similar products by selecting one or more attributes.
Select all

Brand

Molex

Series

93601

Type

STD

Thread Size

Pg16

Size

6B

Body Orientation

Side Entry

IP Rating

IP66

Cable Entry Angle

Side

Voltage Rating

500 V

Series Number

93601

For Use With

S-DD, S-E, S-EHV Inserts, S-EP, S-ES, S-ESHV, S-HSB, S-K, S-M, SEE, Size 6B (44x27) S-D

Contact Material

Aluminium Alloy

Number of Levers

1

COO (Country of Origin):
CN

Molex 93601 Series Heavy Duty Power Connector Hood, 500V Voltage Rating, PG16 Thread size - 936010898


This heavy duty power connector hood is designed for robust applications within industrial settings. Constructed from die-cast aluminium, it features a side entry design and an IP66 rating, ensuring protection against dust and water ingress. With a PG16 thread size, this hood is suitable for a range of size 6B connectors.

Features & Benefits


• Side entry configuration allows flexible installation options
• Capable of handling voltages up to 500V safely
• Equipped with two stainless steel pegs for secure fitting
• Single lever mechanism simplifies connection and disconnection

Applications


• Utilised with size 6B connectors for various industrial systems
• Ideal for electrical and mechanical equipment in automation
• Suitable for environments requiring durable electrical hoods
• Effective in outdoor settings needing robust weather resistance

What are the benefits of using die-cast aluminium in construction?


Using die-cast aluminium enhances durability and resistance to corrosion, which is essential for maintaining integrity in challenging environments.

How does the IP66 rating impact usability in external applications?


An IP66 rating assures users that the connector hood will perform effectively in harsh weather, providing full protection against dust and heavy rain.

What installation considerations are associated with side entry designs?


Side entry designs offer added flexibility in tight spaces, allowing for easier access during maintenance and installation without compromising the integrity of the connection.

How do the two pegs enhance the hood's performance?


The two stainless steel pegs ensure a secure fit to prevent loosening and facilitate stability during operation, significantly reducing the risk of connection failure.
