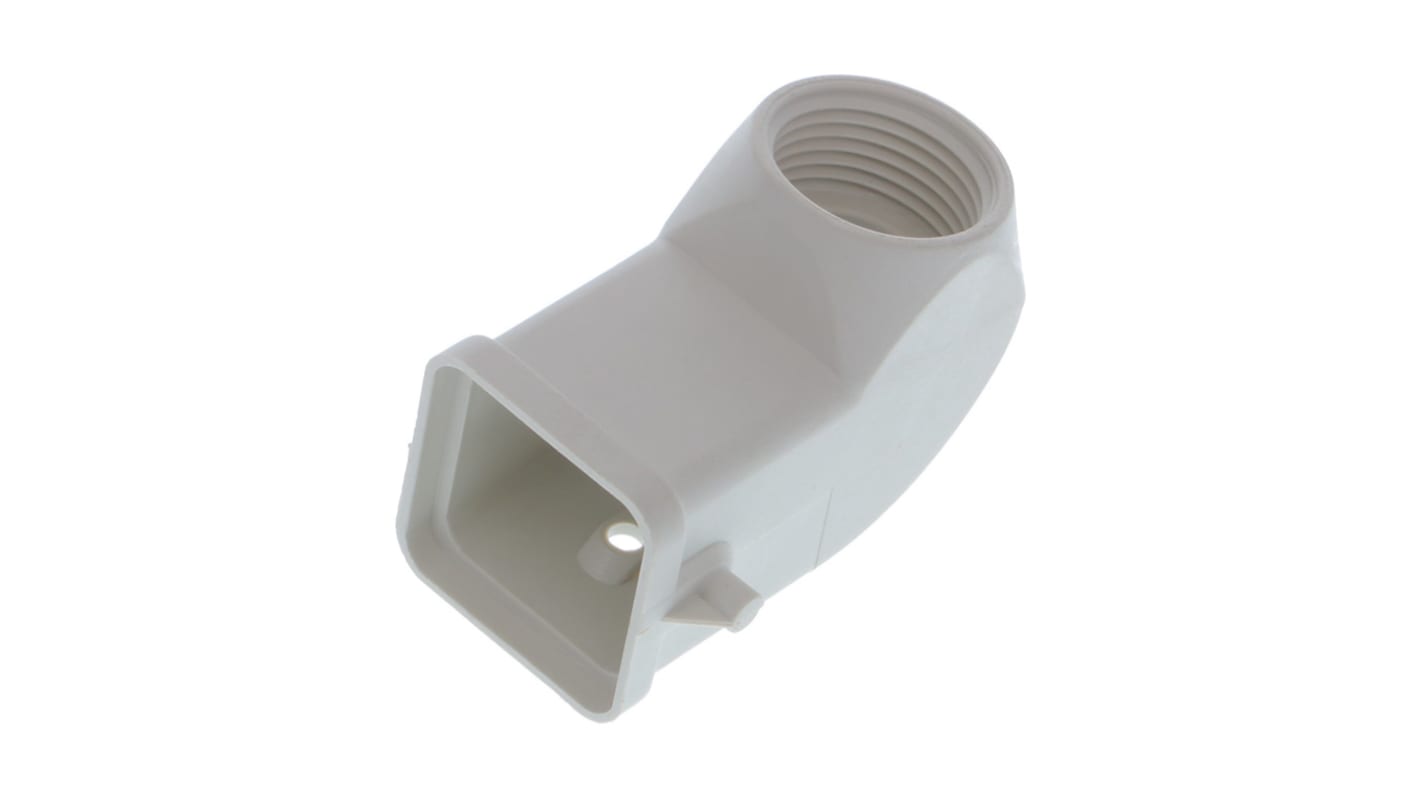

Molex 93601 Heavy Duty Power Connector, M20 Thread, Side Entry
- RS Stock No.:
- 250-1999
- Distrelec Article No.:
- 302-99-687
- Mfr. Part No.:
- 936010685
- Brand:
- Molex
Bulk discount available
Subtotal (1 unit)*
£1.68
(exc. VAT)
£2.02
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 18 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £1.68 |
10 - 99 | £1.62 |
100 - 249 | £1.53 |
250 - 499 | £1.48 |
500 + | £1.39 |
*price indicative
- RS Stock No.:
- 250-1999
- Distrelec Article No.:
- 302-99-687
- Mfr. Part No.:
- 936010685
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Molex | |
Series | 93601 | |
Type | STD | |
Thread Size | M20 | |
Size | 3A | |
Body Orientation | Side Entry | |
IP Rating | IP66 | |
Cable Entry Angle | Side | |
Voltage Rating | 400 V | |
For Use With | S-D, S-Q Inserts, Size 3A (21x21) S-A | |
Contact Material | Aluminium Alloy | |
Series Number | 93601 | |
Number of Levers | 1 | |
Select all | ||
---|---|---|
Brand Molex | ||
Series 93601 | ||
Type STD | ||
Thread Size M20 | ||
Size 3A | ||
Body Orientation Side Entry | ||
IP Rating IP66 | ||
Cable Entry Angle Side | ||
Voltage Rating 400 V | ||
For Use With S-D, S-Q Inserts, Size 3A (21x21) S-A | ||
Contact Material Aluminium Alloy | ||
Series Number 93601 | ||
Number of Levers 1 | ||
- COO (Country of Origin):
- CN
Molex 93601 Series Heavy Duty Power Connector, 400V Voltage Rating, M20 Thread size - 936010685
This heavy duty power connector is designed specifically for industrial applications. Featuring a side entry configuration, this connector is compatible with size 3A 21 x 21 inserts. It boasts an IP66 rating, making it ideal for environments where dust and moisture protection are essential.
Features & Benefits
• Rated for up to 400V for versatile applications
• Side entry design simplifies installation in tight spaces
• M20 thread size provides secure mounting options
• Single lever hood mechanism streamlines connection management
• Side entry design simplifies installation in tight spaces
• M20 thread size provides secure mounting options
• Single lever hood mechanism streamlines connection management
Applications
• Used with size 3A «21x21» S-A, S-D, and S-Q inserts
• Ideal for industrial automation and electrical installations
• Suitable for construction environments requiring robust connections
• Enhances connectivity in challenging mechanical settings
• Ideal for industrial automation and electrical installations
• Suitable for construction environments requiring robust connections
• Enhances connectivity in challenging mechanical settings
What materials are used in the construction of this connector?
The connector features a durable aluminium alloy for the contacts and polyamide for the hood and pegs, ensuring strength and reliability in industrial applications.
How does the IP66 rating benefit this connector in environments with moisture?
The IP66 rating indicates that it is completely dust-tight and can withstand high-pressure water jets, making it suitable for use in wet and dusty environments.
What advantages does the side entry design offer in installation?
The side entry configuration allows for easier access in confined spaces, reducing the complexity of installation and ensuring a secure fit in various setups.
