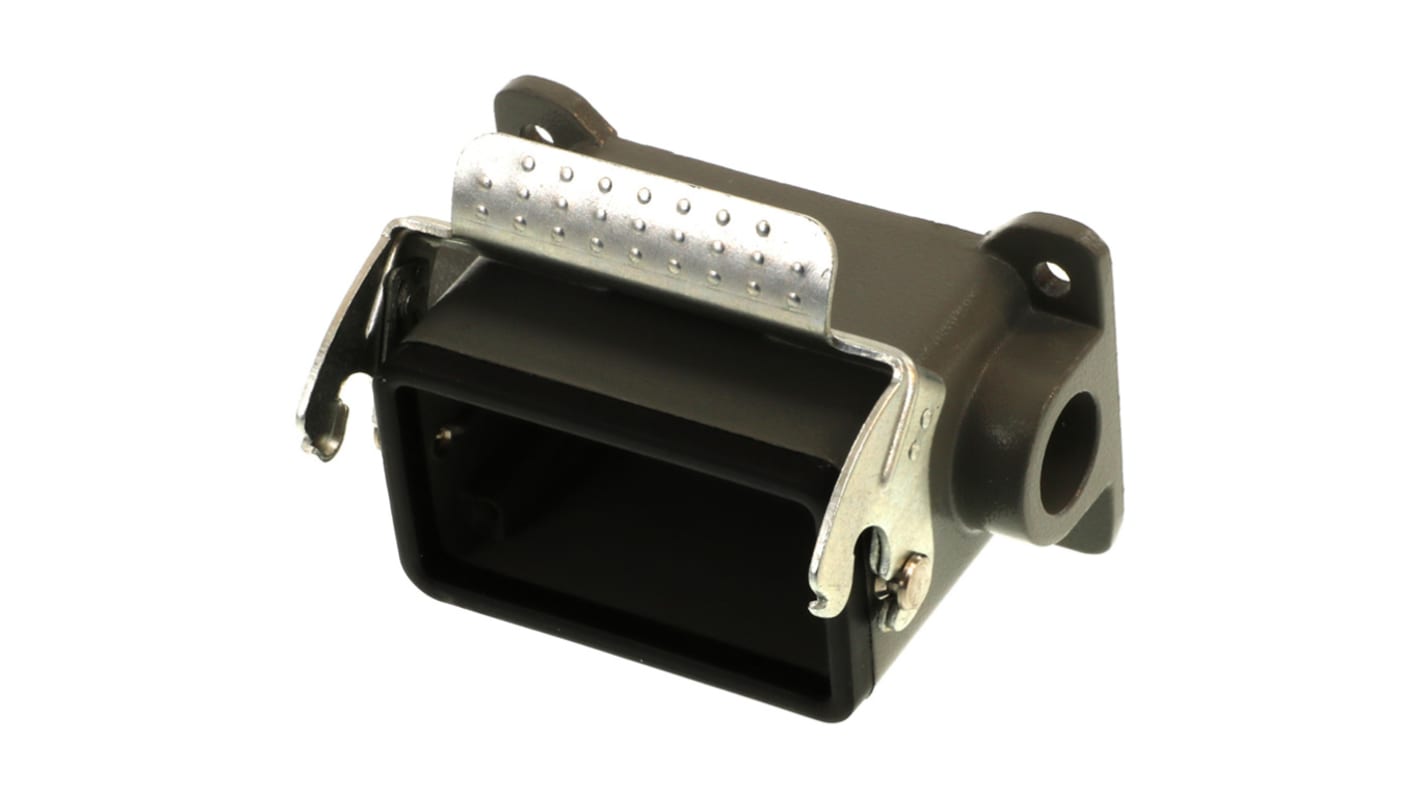

Molex 93601 Heavy Duty Power Connector Housing, M20 Thread, Straight

View this category
Save 15% when you buy 500 units

Subtotal (1 unit)*

£33.85

(exc. VAT)

£40.62

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 5 unit(s) ready to ship
  • Plus 999,999,994 unit(s) shipping from 30 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9£33.85
10 - 99£32.77
100 - 249£31.42
250 - 499£30.06
500 +£28.44

*price indicative

RS Stock No.:
250-2042
Distrelec Article No.:
301-25-731
Mfr. Part No.:
936011547
Brand:
Molex
Find similar products by selecting one or more attributes.
Select all

Brand

Molex

Type

STD

Series

93601

Thread Size

M20

Mounting Type

Surface Mount

Size

10B

Body Orientation

Straight

IP Rating

IP66

Voltage Rating

500 V

Number of Levers

1

Contact Material

Aluminium Alloy

Series Number

93601

COO (Country of Origin):
CN

Molex 93601 Series Heavy Duty Power Connector Housing, 10B size, Surface Mount - 936011547


This heavy-duty power connector housing is designed to ensure robust electrical connections in demanding environments. Constructed from die-cast aluminium, it features an M20 thread size and dimensions of 57 x 27 mm. The IP66 rating guarantees excellent resistance against dust and water ingress, making it suitable for outdoor and industrial applications.

Features & Benefits


• Provides a reliable waterproof connection for outdoor use
• Single lever design simplifies the connection process
• M20 thread size enables secure attachment to surfaces
• Aluminium alloy construction ensures lightweight yet robust performance

Applications


• Used with various size 10B electrical inserts for custom connections
• Suitable for automation systems requiring dependable power supplies
• Ideal for mechanical in harsh conditions
• Effective in electrical setups needing strong and waterproof connections

What materials are used in the connector housing construction?


The connector housing is made from die-cast aluminium, which offers strength and resistance to corrosion, complemented by a galvanised steel lever.

How does the IP66 rating enhance usability in outdoor applications?


An IP66 rating signifies complete protection against dust and powerful water jets, making it ideal for outdoor applications exposed to the elements.

What types of inserts can be paired with this connector housing?


It can be paired with size 10B inserts such as S-D, S-DD, S-E, and several others, allowing versatility in electrical connections.

Is this connector suitable for high voltage applications?


Yes, it is rated for a maximum voltage of 500V, ensuring it can handle various industrial power requirements effectively.
