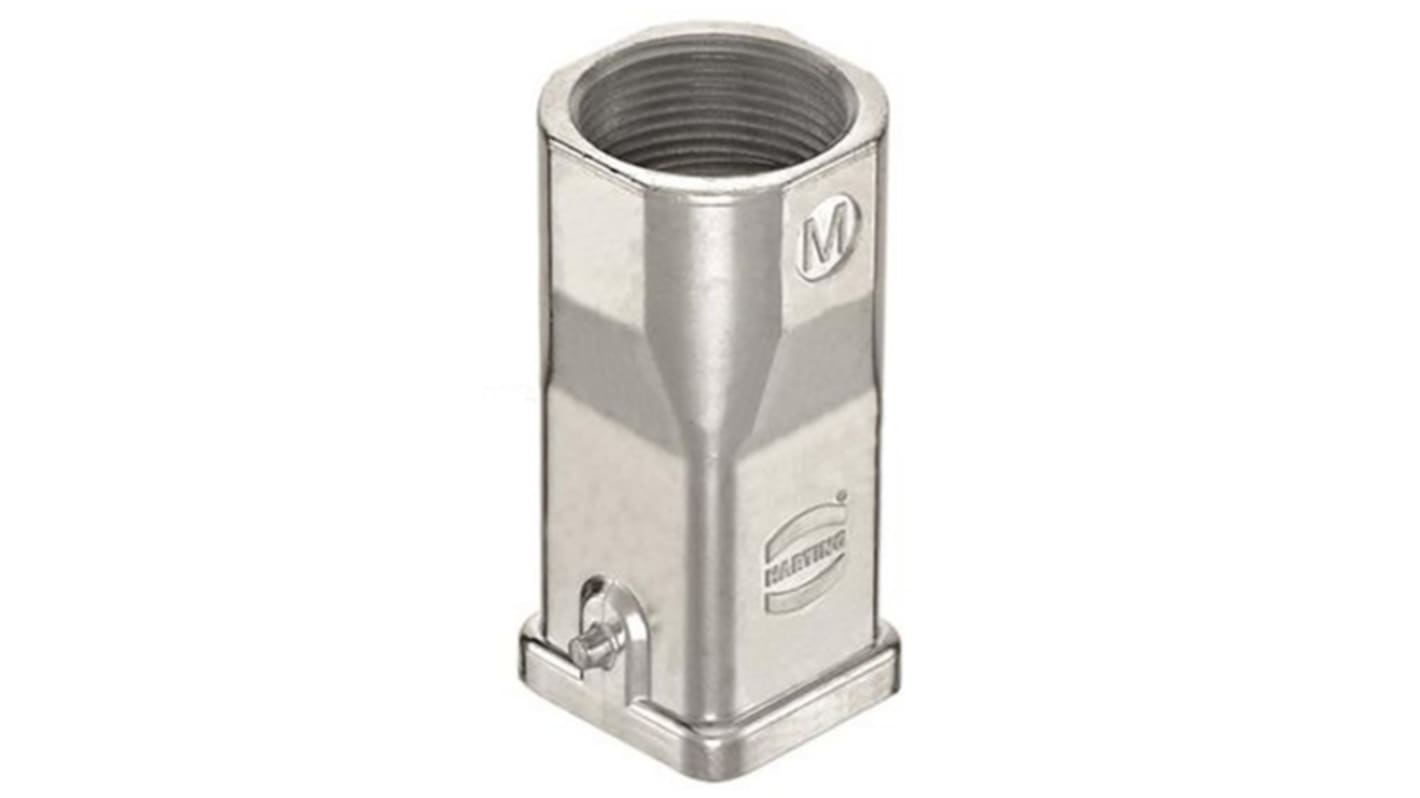

HARTING Han EMC Range Power Connector Hood 1, 3A
- RS Stock No.:
- 136-9218
- Mfr. Part No.:
- 19620031445
- Brand:
- HARTING
Bulk discount available
Subtotal (1 unit)*
£13.45
(exc. VAT)
£16.14
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 19 unit(s) ready to ship
- Plus 6 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £13.45 |
| 10 - 24 | £12.88 |
| 25 - 49 | £12.37 |
| 50 + | £11.81 |
*price indicative
- RS Stock No.:
- 136-9218
- Mfr. Part No.:
- 19620031445
- Brand:
- HARTING
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HARTING | |
| Locking Type | 1 Lever | |
| Series | Han EMC | |
| Sub Type | Hood | |
| Product Type | Power Connector Hood | |
| Mount Type | Cable | |
| Manufacturer Size Code | 3A | |
| Body Material | Die Cast Zinc | |
| IP Rating | IP44, IP67 | |
| Cable Entry Angle | Top | |
| Standards/Approvals | No | |
| Number of Levers | 1 | |
| Thread Size | M25 | |
| Select all | ||
|---|---|---|
Brand HARTING | ||
Locking Type 1 Lever | ||
Series Han EMC | ||
Sub Type Hood | ||
Product Type Power Connector Hood | ||
Mount Type Cable | ||
Manufacturer Size Code 3A | ||
Body Material Die Cast Zinc | ||
IP Rating IP44, IP67 | ||
Cable Entry Angle Top | ||
Standards/Approvals No | ||
Number of Levers 1 | ||
Thread Size M25 | ||
- COO (Country of Origin):
- CN
Harting Han EMC Series Size 3 A Hoods and Housings
Han EMC size 3 A shielded metal hoods and housings with designed to meet high EMC requirements. These Han M hoods and housings have a robust diecast zinc construction with an unpainted electrically conductive surface for a continuous shielded connection. Locking levers provide a secure connection and IP67 protection to IEC 50529 is possible when used with a seal screw (stock number 313-6540). Both the hoods and housings are available with a range of mounting options and cable entry angles.
Features and Benefits
• High EMC shielding capability
• Robust diecast zinc construction
• Locking levers for secure connection
• IP67 protection using seal screw
• Locking levers for secure connection
• Range of cable entry angles
Product Application Information
These Han EMC Size 3 A hoods are suitable for use in industrial applications where shielding against electrical, magnetic or electro-magnetic interference is required
Harting Han EMC Series Size 3 A Hoods and Housings
These hoods and housings are based on the well proven Han B standard hoods and housings with identical dimensions and panel cut outs. The electrical contact between hood and housing is achieved by means of a metal adaptor frame. This frame is fixed on the bulkhead mounted housing and replaces the sealing. The housing has a large contact surface towards the panel. IP65 by means of O ring sealings. These hoods and housings us the Han Easy-Lock system.
