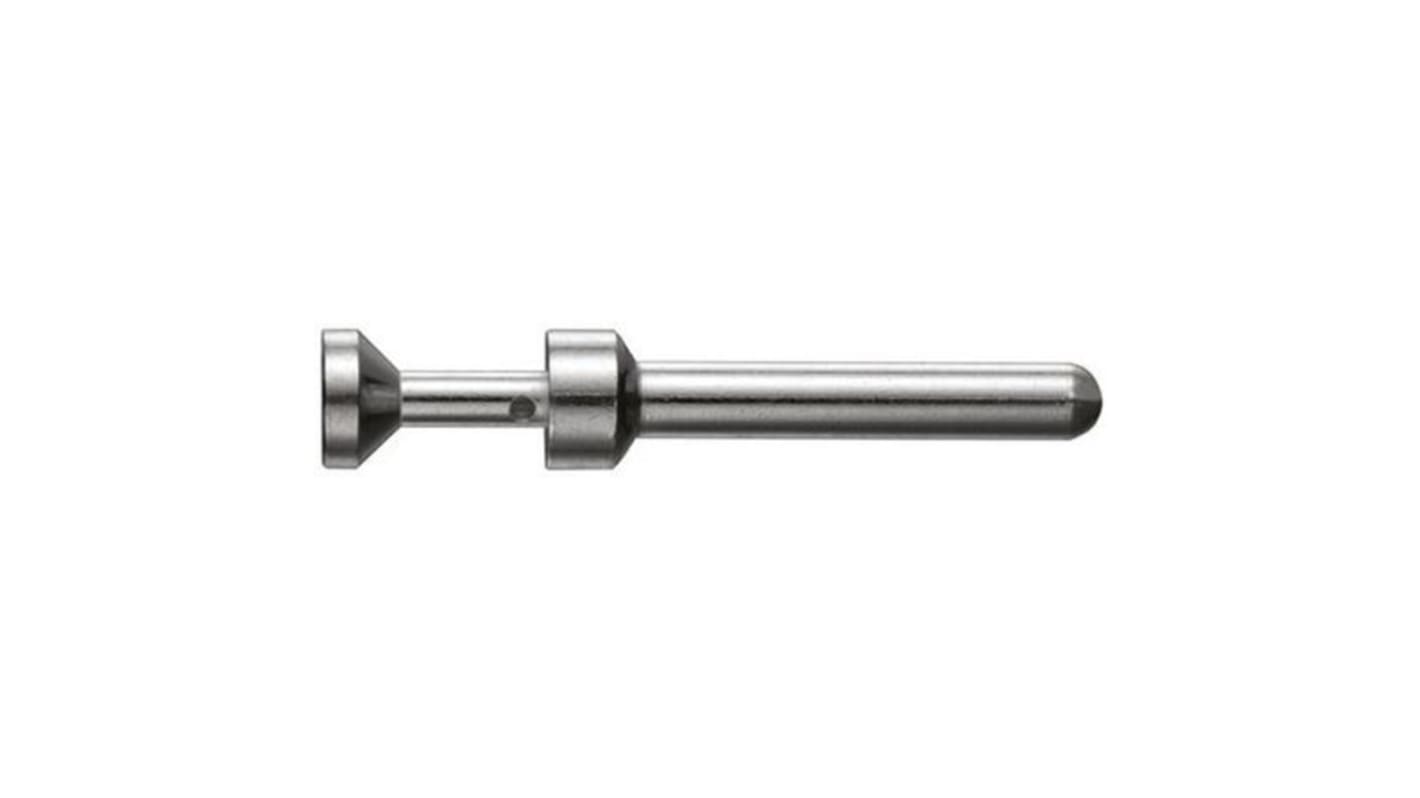

HARTING HAN E Male 16A Crimp Contact Minimum Wire Size 3mm² Maximum Wire Size 3mm²
- RS Stock No.:
- 842-7703
- Mfr. Part No.:
- 09330006106
- Brand:
- HARTING
Bulk discount available
Subtotal (1 pack of 100 units)*
£42.40
(exc. VAT)
£50.90
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 400 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 100 - 900 | £0.424 | £42.40 |
| 1000 - 2400 | £0.413 | £41.30 |
| 2500 + | £0.403 | £40.30 |
*price indicative
- RS Stock No.:
- 842-7703
- Mfr. Part No.:
- 09330006106
- Brand:
- HARTING
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HARTING | |
| Series | HAN E | |
| Accessory Type | Crimp Contact | |
| Current Rating | 16A | |
| Minimum Wire Size mm² | 3mm² | |
| Gender | Male | |
| Maximum Wire Size mm² | 3mm² | |
| Termination Method | Crimp | |
| Select all | ||
|---|---|---|
Brand HARTING | ||
Series HAN E | ||
Accessory Type Crimp Contact | ||
Current Rating 16A | ||
Minimum Wire Size mm² 3mm² | ||
Gender Male | ||
Maximum Wire Size mm² 3mm² | ||
Termination Method Crimp | ||
Han E® 16A Crimp Series
Harting contact inserts have a wide range of uses. Inserts are selected according to the desired number of poles and voltage and current ratings.
Current rating 16A
Working voltage 500V
6 to 24 poles
Crimp contacts must be ordered separately – option of 1.5mm² and 2.5mm²
Working voltage 500V
6 to 24 poles
Crimp contacts must be ordered separately – option of 1.5mm² and 2.5mm²
Note
The parallel action crimp tool requires locator stock no. 114-7920
Warning
These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of a wrong connection.
Approvals
UL, CSA, SEV
Han E® 16A Crimp Series
These Han E® inserts are rated at 16A. They are intended for use with hoods and housings contained within ranges 5, 6, 7, & 8. These hood and housing ranges are associated to a specific Harting 'Size' number identifier. See the 'compatibility' table for details of this relationship, and stock numbers of hoods and housings that are typical of each range.
